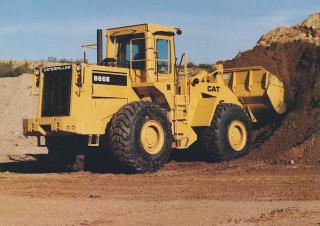

966E Caterpillar 966E Specifications & Technical Data (1987—1990)

The Caterpillar 966E is a wheel loader manufactured from 1987 to 1990. It has a weight of 20.44 tons and a transport length of 8.2…

The Caterpillar 966E is a wheel loader manufactured from 1987 to 1990. It has a weight of 20.44 tons and a transport length of 8.2 meters. The bucket capacity is 3.8 cubic meters, with a width of 3.06 meters. The maximum discharge height is 2.97 meters. It has a travel speed of 38.2 km/h and a transport width of 2.94 meters. The transport height is 3.59 meters. The lifting force is 186 kN, and the turning radius outside is 6.78 meters. The bucket capacity ranges from 3.1 to 3.8 cubic meters.

Wheel Loaders Caterpillar 966E

Technical specs - 966E Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
20.44 t
Standard tyres
26.5-25. 14PR
Bucket width
3.06 m
Bucket capacity
3.8 m³
Bucket capacity min.
3.1 m³
Bucket capacity max.
3.8 m³
Transport length
8.2 m
Transport width
2.94 m
Transport height
3.59 m
Travel speed
38.2 km/h
Max. discharge height
2.97 m
Turning radius outside
6.78 m
Lifting force
186 kN

More technical details, like: steering mode, model series, engine manuf., engine type, engine power, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter
No
Swing loader
No
telescopic
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download specalog and datasheets (PDF)

Caterpillar 966E FAQ

When was the Caterpillar 966E wheel loader manufactured?

The Caterpillar 966E wheel loader was manufactured from 1987 to 1990.

How much does the Caterpillar 966E wheel loader weigh?

The Caterpillar 966E wheel loader weighs 20.44 tons.

What are the transport dimensions of the Caterpillar 966E wheel loader?

The Caterpillar 966E wheel loader has a transport length of 8.2 meters, a transport width of 2.94 meters, and a transport height of 3.59 meters.

What is the travel speed of the Caterpillar 966E wheel loader?

The Caterpillar 966E wheel loader has a travel speed of 38.2 km/h.

What are the undercarriage specifications of the Caterpillar 966E wheel loader?

The Caterpillar 966E wheel loader is equipped with standard tyres sized 26.5-25 14PR.

What is the turning radius of the Caterpillar 966E wheel loader?

The Caterpillar 966E has an outside turning radius of 6.78 meters.

What is the lifting force of the Caterpillar 966E wheel loader?

The Caterpillar 966E wheel loader has a lifting force of 186 kN.

What is the maximum discharge height of the Caterpillar 966E?

The Caterpillar 966E has a maximum discharge height of 2.97 meters.

What are the specifications of the bucket on the Caterpillar 966E wheel loader?

The Caterpillar 966E wheel loader has a bucket capacity ranging from 3.1 to 3.8 cubic meters, with a bucket width of 3.06 meters.

How much is a Caterpillar 966E Wheel loader (1987u20131990) worth?

The residual value of the Caterpillar 966E depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
