966 Caterpillar 966 Specifications & Technical Data (2021—2026)

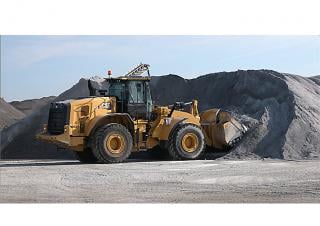

The Caterpillar 966 is a wheel loader manufactured since 2021. It has a weight of 23.22 tons and a transport length of 7.289 meter…

The Caterpillar 966 is a wheel loader manufactured since 2021. It has a weight of 23.22 tons and a transport length of 7.289 meters. The bucket capacity is 4.4 cubic meters, with a width of 3.2 meters. The maximum discharge height is 2.991 meters. It has a travel speed of 39.5 km/h. The transport width is 3.009 meters and the transport height is 3.522 meters. The turning radius outside is 7.64 meters. The bucket capacity is a minimum of 4.4 cubic meters. It is equipped with air conditioning, a diesel particulate filter, and a swing loader.

966

Years of manufacture: 2021—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 966 Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 23.22 t

Standard tyres: 26.5-25

Bucket width: 3.2 m

Bucket capacity: 4.4 m³

Bucket capacity min.: 4.4 m³

Steering mode: KL

Transport length: 7.29 m

Transport width: 3.01 m

Transport height: 3.52 m

Travel speed: 39.5 km/h

Max. discharge height: 2.99 m

Turning radius outside: 7.64 m

Lifting force: 174 kN

Engine manuf.: Caterpillar

Engine type: C9.3B

Engine power: 226 kW

Displacement: 9.3 l

Revolutions at max torque: 1600 rpm

Max. torque: 1618 Nm

Emission level: EU V

More technical details, like: bucket capacity max., model series, dimension lxwxh, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: Yes
Swing loader: Yes
telescopic: No
Aircondition: Yes
Quick hitch hydr.: No
Quick hitch mech.: No

Download specalog and datasheets (PDF)

Caterpillar 966 FAQ

When was the Caterpillar 966 manufactured?

The Caterpillar 966 was first produced in 2021.

How much does the Caterpillar 966 wheel loader weigh?

The Caterpillar 966 wheel loader weighs 23.22 tons.

What are the transport dimensions of the Caterpillar 966 wheel loader?

The Caterpillar 966 wheel loader has a transport length of 7.29 meters, a transport width of 3.01 meters, and a transport height of 3.52 meters.

What is the travel speed of the Caterpillar 966 wheel loader?

The Caterpillar 966 wheel loader has a travel speed of 39.5 km/h.

What are the standard tyres of the Caterpillar 966 wheel loader?

The Caterpillar 966 wheel loader is equipped with standard tyres sized 26.5-25.

What are the maneuverability specifications of the Caterpillar 966 wheel loader?

The Caterpillar 966 wheel loader has an articulated-frame steering system and an outside turning radius of 7.64 meters.

What is the lifting force of the Caterpillar 966 wheel loader?

The Caterpillar 966 wheel loader has a lifting force of 174 kN.

What is the maximum discharge height of the Caterpillar 966?

The Caterpillar 966 has a maximum discharge height of 2.99 meters.

What are the specifications of the bucket on the Caterpillar 966 wheel loader?

The Caterpillar 966 wheel loader has a bucket with a capacity of 4.4 cubic meters and a width of 3.2 meters.
