938K Caterpillar 938K Specifications & Technical Data (2019—2026)

The Caterpillar 938K is a wheel loader that has been manufactured since 2019. It has a weight of 15.48 tons and a transport length…

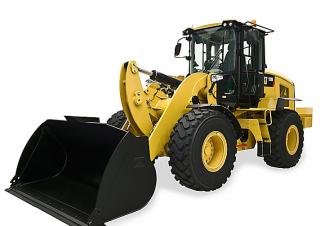

The Caterpillar 938K is a wheel loader that has been manufactured since 2019. It has a weight of 15.48 tons and a transport length of 7.6 meters. The bucket capacity is 3.2 cubic meters, with a bucket width of 2.75 meters. The maximum discharge height is 2.87 meters. It has a travel speed of 40 km/h and a transport width of 2.69 meters. The transport height is 3.71 meters and the turning radius outside is 5.55 meters. The minimum bucket capacity is also 3.2 cubic meters.

938K

Years of manufacture: 2019—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 938K Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 15.48 t

Standard tyres: 20.5 R25

Bucket width: 2.75 m

Bucket capacity: 3.2 m³

Bucket capacity min.: 3.2 m³

Transport length: 7.6 m

Transport width: 2.69 m

Transport height: 3.71 m

Travel speed: 40 km/h

Max. discharge height: 2.87 m

Turning radius outside: 5.55 m

Engine manuf.: Caterpillar

Engine type: C7.1 Acert

Engine power: 136 kW

Displacement: 7.01 l

Max. torque: 876 Nm

Emission level: Tier 3/ IIIA

More technical details, like: bucket capacity max., steering mode, lifting force, model series, dimension lxwxh, revolutions at max torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

Download specalog and datasheets (PDF)

Caterpillar 938K FAQ

When was the Caterpillar 938K manufactured?

The Caterpillar 938K was first produced in 2019.

How much does the Caterpillar 938K wheel loader weigh?

The Caterpillar 938K wheel loader weighs 15.48 tons.

What are the transport dimensions of the Caterpillar 938K wheel loader?

The Caterpillar 938K has a transport length of 7.6 meters, a transport width of 2.69 meters, and a transport height of 3.71 meters.

What is the travel speed of the Caterpillar 938K wheel loader?

The Caterpillar 938K wheel loader has a travel speed of 40 km/h.

What are the undercarriage specifications of the Caterpillar 938K wheel loader?

The Caterpillar 938K wheel loader is equipped with standard tyres sized 20.5 R25.

What is the turning radius of the Caterpillar 938K wheel loader?

The Caterpillar 938K wheel loader has an outside turning radius of 5.55 meters.

What is the maximum discharge height of the Caterpillar 938K wheel loader for material handling?

The Caterpillar 938K wheel loader has a maximum discharge height of 2.87 meters for material handling.

What are the specifications of the primary work tool bucket on the Caterpillar 938K?

The Caterpillar 938K has a bucket with a capacity of 3.2 cubic meters, a minimum bucket capacity of 3.2 cubic meters, and a bucket width of 2.75 meters.
