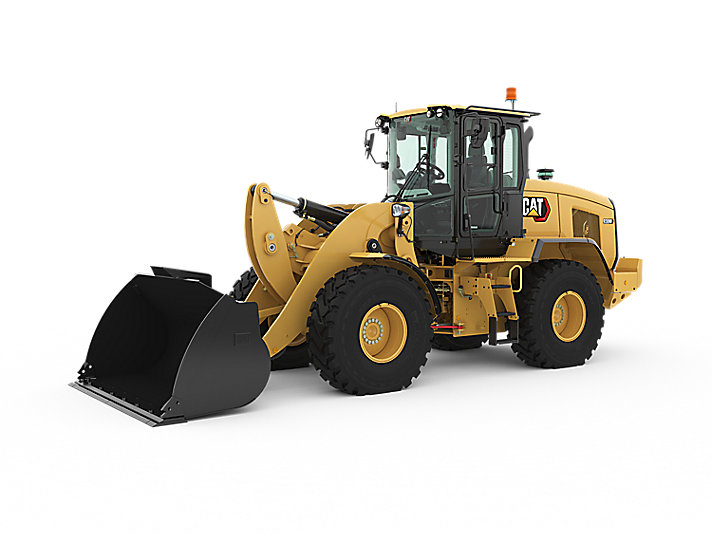

930M Caterpillar 930M Specifications & Technical Data (2020—2026)

The Caterpillar 930M is a wheel loader model manufactured by Caterpillar since 2020. It has a weight of 14.13 tons and a transport…

The Caterpillar 930M is a wheel loader model manufactured by Caterpillar since 2020. It has a weight of 14.13 tons and a transport length of 7.61 meters. The bucket capacity is 2.3 cubic meters, with a bucket width of 2.55 meters. The maximum discharge height is 2.761 meters. The transport width is 2.54 meters and the transport height is 3.71 meters. The turning radius outside is 5.4 meters. The wheel loader is equipped with special features such as air conditioning, a diesel particulate filter, and a swing loader.

930M

Years of manufacture: 2020—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 930M Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 14.13 t

Bucket width: 2.55 m

Bucket capacity: 2.3 m³

Bucket capacity min.: 2.3 m³

Steering mode: KL

Transport length: 7.61 m

Transport width: 2.54 m

Transport height: 3.71 m

Max. discharge height: 2.761 m

Turning radius outside: 5.4 m

Engine manuf.: Caterpillar

Engine type: C7.1 Acert

Engine power: 125 kW

Displacement: 7.1 l

Max. torque: 702 Nm

Cylinder bore x stroke: 105x135 mm

Emission level: EU V

More technical details, like: standard tyres, bucket capacity max., travel speed, lifting force, model series, dimension lxwxh, revolutions at max torque, no. of cylinders are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: Yes
Swing loader: Yes
telescopic: No
Aircondition: Yes
Quick hitch hydr.: No
Quick hitch mech.: No

Download specalog and datasheets (PDF)

Caterpillar 930M FAQ

When was the Caterpillar 930M manufactured?

The Caterpillar 930M was first produced in 2020.

How much does the Caterpillar 930M weigh?

The Caterpillar 930M weighs 14.13 tons.

What are the transport dimensions of the Caterpillar 930M wheel loader?

The Caterpillar 930M has a transport length of 7.61 meters, a transport width of 2.54 meters, and a transport height of 3.71 meters.

What are the maneuverability specifications of the Caterpillar 930M wheel loader?

The Caterpillar 930M wheel loader has an outside turning radius of 5.4 meters and features articulated-frame steering.

What is the maximum discharge height of the Caterpillar 930M wheel loader?

The Caterpillar 930M wheel loader has a maximum discharge height of 2.76 meters.

What are the bucket specifications of the Caterpillar 930M wheel loader?

The Caterpillar 930M wheel loader has a bucket capacity of 2.3 cubic meters and a bucket width of 2.55 meters.
