928Gz Caterpillar 928Gz Specifications & Technical Data (2006—2026)

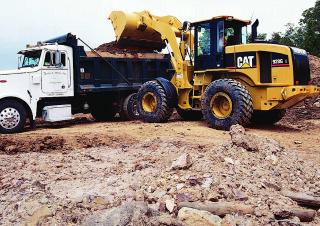

The Caterpillar 928Gz is a wheel loader that has been manufactured since 2006. It has a weight of 12.31 tons and a transport lengt…

The Caterpillar 928Gz is a wheel loader that has been manufactured since 2006. It has a weight of 12.31 tons and a transport length of 7.25 meters. The bucket width is 2.55 meters, and it has a maximum discharge height of 2.88 meters. The travel speed of this machine is 37.7 km/h. It has a transport width of 2.41 meters and a transport height of 3.27 meters. The lifting force of the loader is 115 kN, and it has a turning radius outside of 5.23 meters. The maximum bucket capacity is 2.3 cubic meters, while the minimum capacity is 2 cubic meters.

928Gz

Years of manufacture: 2006—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 928Gz Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 12.31 t

Standard tyres: 17.5-25PR

Bucket width: 2.55 m

Bucket capacity min.: 2 m³

Bucket capacity max.: 2.3 m³

Transport length: 7.25 m

Transport width: 2.41 m

Transport height: 3.27 m

Travel speed: 37.7 km/h

Max. discharge height: 2.88 m

Turning radius outside: 5.23 m

Lifting force: 115 kN

Engine manuf.: Caterpillar

Engine type: 3056E DIT ATAAC

Engine power: 107 kW

Displacement: 6 l

Cylinder bore x stroke: 100x127 mm

More technical details, like: bucket capacity, steering mode, model series, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, emission level are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

Download specalog and datasheets (PDF)

928Gz Caterpillar Specification for Europe (EN)

Caterpillar 928Gz FAQ

When was the Caterpillar 928Gz manufactured?

The Caterpillar 928Gz was first produced in 2006.

How much does the Caterpillar 928Gz weigh?

The Caterpillar 928Gz weighs 12.31 tons.

What are the transport dimensions of the Caterpillar 928Gz wheel loader?

The Caterpillar 928Gz has a transport length of 7.25 meters, a transport width of 2.41 meters, and a transport height of 3.27 meters.

What is the travel speed of the Caterpillar 928Gz wheel loader?

The Caterpillar 928Gz has a travel speed of 37.7 km/h.

What are the standard tyre specifications of the Caterpillar 928Gz wheel loader?

The Caterpillar 928Gz wheel loader is equipped with standard tyres sized 17.5-25PR.

What is the turning radius of the Caterpillar 928Gz wheel loader?

The Caterpillar 928Gz wheel loader has an outside turning radius of 5.23 meters.

What is the lifting force of the Caterpillar 928Gz wheel loader?

The Caterpillar 928Gz wheel loader has a lifting force of 115 kN.

What is the material handling capacity of the Caterpillar 928Gz in terms of discharge height?

The Caterpillar 928Gz has a maximum discharge height of 2.88 meters.

What are the specifications of the bucket on the Caterpillar 928Gz wheel loader?

The Caterpillar 928Gz wheel loader has a bucket with a maximum capacity of 2.3 cubic meters, a minimum capacity of 2 cubic meters, and a width of 2.55 meters.
