926M Caterpillar 926M Specifications & Technical Data (2015—2020)

Model rating: 0,00 / 10

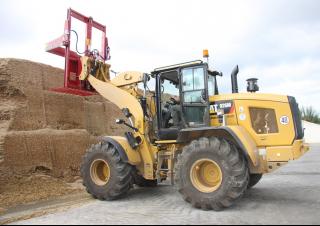

The Caterpillar 926M is a wheel loader model manufactured by Caterpillar from 2015 to 2020. It has a weight of 13.05 tons and a tr…

The Caterpillar 926M is a wheel loader model manufactured by Caterpillar from 2015 to 2020. It has a weight of 13.05 tons and a transport length of 7.451 meters. The bucket capacity is 1.9 cubic meters with a width of 2.55 meters. The maximum discharge height is 2.885 meters. It has a travel speed of 40 km/h and a transport width of 2.54 meters. The transport height is 3.669 meters. The lifting force is 100.35 kN. The turning radius outside is 5.924 meters. The machine is equipped with special features such as air conditioning, a diesel particulate filter, and a swing loader. The bucket capacity ranges from a minimum of 1.9 cubic meters to a maximum of 5 cubic meters.

926M

Years of manufacture: 2015—2020

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 926M Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 13.05 t

Standard tyres: 20.5 R25

Bucket width: 2.55 m

Bucket capacity: 1.9 m³

Bucket capacity min.: 1.9 m³

Bucket capacity max.: 5 m³

Steering mode: KL

Transport length: 7.451 m

Transport width: 2.54 m

Transport height: 3.669 m

Travel speed: 40 km/h

Max. discharge height: 2.885 m

Turning radius outside: 5.924 m

Lifting force: 100.35 kN

Engine manuf.: Caterpillar

Engine type: C7.1 Acert

Engine power: 105 kW

Displacement: 7.1 l

Max. torque: 702 Nm

Cylinder bore x stroke: 105x135 mm

Emission level: Tier 4 f

More technical details, like: model series, dimension lxwxh, revolutions at max torque, no. of cylinders are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: Yes
Swing loader: Yes
telescopic: No
Aircondition: Yes
Quick hitch hydr.: No
Quick hitch mech.: No

Download specalog and datasheets (PDF)

Caterpillar 926M FAQ

When was the Caterpillar 926M manufactured?

The Caterpillar 926M was manufactured from 2015 to 2020.

How much does the Caterpillar 926M weigh?

The Caterpillar 926M weighs 13.05 tons.

What are the transport dimensions of the Caterpillar 926M wheel loader?

The Caterpillar 926M has a transport length of 7.45 meters, a transport width of 2.54 meters, and a transport height of 3.67 meters.

What is the travel speed of the Caterpillar 926M wheel loader?

The Caterpillar 926M wheel loader has a travel speed of 40 km/h.

What are the undercarriage specifications of the Caterpillar 926M wheel loader?

The Caterpillar 926M wheel loader is equipped with standard tyres sized 20.5 R25.

What are the turning radius and steering mode of the Caterpillar 926M wheel loader?

The Caterpillar 926M wheel loader has an outside turning radius of 5.924 meters and uses articulated-frame steering.

What is the power rating of the Caterpillar 926M?

The source data does not provide power rating information for the Caterpillar 926M.

What is the material handling capacity of the Caterpillar 926M in terms of maximum discharge height?

The Caterpillar 926M has a maximum discharge height of 2.89 meters for material handling.

What are the specifications of the bucket on the Caterpillar 926M wheel loader?

The Caterpillar 926M wheel loader has a bucket capacity ranging from 1.9 to 5 cubic meters, with a bucket width of 2.55 meters.
