924K Caterpillar 924K Specifications & Technical Data (2019—2026)

The Caterpillar 924K is a wheel loader model manufactured by Caterpillar since 2019. It has a weight of 12.02 tons and a transport…

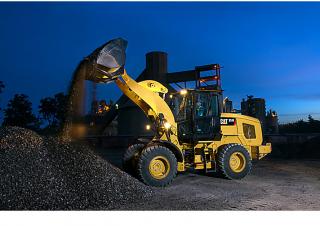

The Caterpillar 924K is a wheel loader model manufactured by Caterpillar since 2019. It has a weight of 12.02 tons and a transport length of 7.37 meters. The bucket capacity is 1.9 cubic meters, with a bucket width of 2.55 meters. The maximum discharge height is 2.86 meters. It has a travel speed of 40 km/h and a transport width of 2.54 meters. The transport height is 3.71 meters and the turning radius outside is 5.4 meters. The bucket capacity ranges from a minimum of 1.9 cubic meters to a maximum of 5 cubic meters.

924K

Years of manufacture: 2019—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 924K Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 12.02 t

Standard tyres: 17.5 R25

Bucket width: 2.55 m

Bucket capacity: 1.9 m³

Bucket capacity min.: 1.9 m³

Bucket capacity max.: 5 m³

Transport length: 7.37 m

Transport width: 2.54 m

Transport height: 3.71 m

Travel speed: 40 km/h

Max. discharge height: 2.86 m

Turning radius outside: 5.4 m

Engine manuf.: Caterpillar

Engine type: C7.1 Acert

Engine power: 102 kW

Displacement: 7.01 l

Max. torque: 704 Nm

Emission level: Tier3/ IIIA

More technical details, like: steering mode, lifting force, model series, dimension lxwxh, revolutions at max torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

Download specalog and datasheets (PDF)

Caterpillar 924K FAQ

When was the Caterpillar 924K manufactured?

The Caterpillar 924K was first produced in 2019.

How much does the Caterpillar 924K wheel loader weigh?

The Caterpillar 924K wheel loader weighs 12.02 tons.

What are the transport dimensions of the Caterpillar 924K wheel loader?

The Caterpillar 924K has a transport length of 7.37 meters, a transport width of 2.54 meters, and a transport height of 3.71 meters.

What is the travel speed of the Caterpillar 924K wheel loader?

The Caterpillar 924K wheel loader has a travel speed of 40 km/h.

What is the size of the standard tyres on the Caterpillar 924K wheel loader?

The Caterpillar 924K wheel loader has standard tyres sized 17.5 R25.

What is the outside turning radius of the Caterpillar 924K wheel loader?

The Caterpillar 924K wheel loader has an outside turning radius of 5.4 meters.

What is the maximum discharge height of the Caterpillar 924K wheel loader?

The Caterpillar 924K wheel loader has a maximum discharge height of 2.86 meters.

What are the specifications of the bucket on the Caterpillar 924K wheel loader?

The Caterpillar 924K wheel loader has a bucket capacity ranging from 1.9 to 5 cubic meters, with a bucket width of 2.55 meters.

How much is a Caterpillar 924K Wheel loader (2019u20132025) worth?

The residual value of the Caterpillar 924K depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Caterpillar 924K overview

Engine / Powertrain / Drivetrain

Fuel Efficiency and Power

Efficiently Powerful – Experience hybrid like fuel efficiency with an intelligent hydrostatic power train and industry leading fuel savings through a lower maximum engine speed of just 1,800 rpm in Standard Mode. Power when you need it with Caterpillar’s exclusive Power-by-Range technology that increases power in Range 4 for improved speed on grade. For your toughest and most demanding applications, a new Performance Mode will allow you to boost the power and hydraulic speed in all ranges to get the job done even quicker. It meets U.S. EPA Tier 3/EU Stage IIIA equivalent emission standards with a Cat® C7.1 ACERT™ engine that is designed to manage itself so you can concentrate on your work.

Hydraulic system

Work Efficiency

Work Made Easy – Move more with Caterpillar’s patented quick loading Performance Series buckets and optimized Z-bar linkage that combines the digging efficiency of a traditional Z-bar with tool carrier capabilities. The parallel lift and high tilt forces throughout the working range allow you to safely and confidently handle loads with precise control. Multi-function work has never been easier with dedicated pumps for each system and a flow sharing implement valve governed by an intelligent power management system. Simultaneously lift, steer and drive without compromise. The K Series Small Wheel Loader simply does what you ask it to do.

Operator's cab

K Series – Making Your Choice Easy

Enjoy All Day Comfort – Have a seat in the updated K Series Small Wheel Loader and enjoy excellent all around visibility and low-effort joystick controls that move with you on a fully adjustable seat suspension. A large spacious operator environment combined with Caterpillar’s exclusive hydraulic cylinder damping and smooth predictable controls make this the most comfortable seat on your job site.
