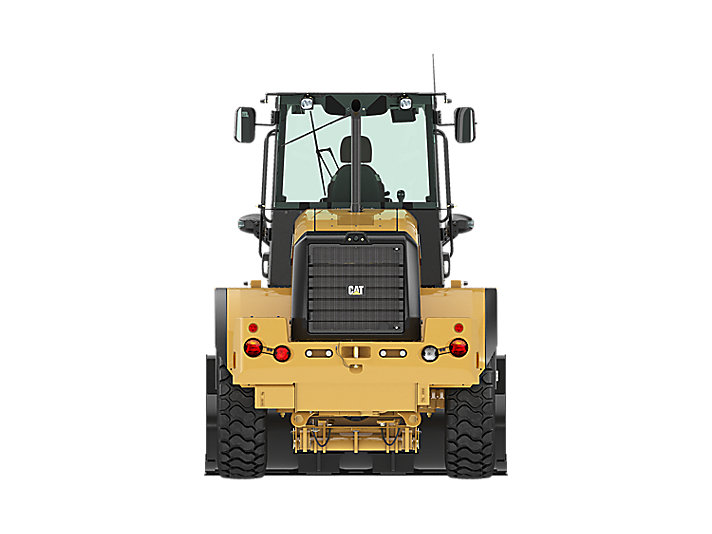

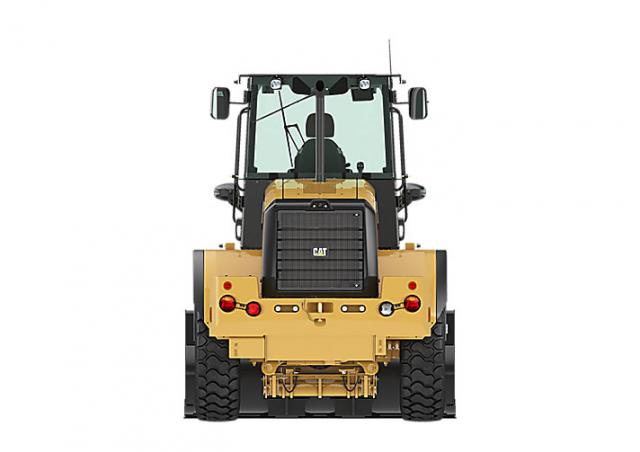

910M Caterpillar 910M Specifications & Technical Data (2016—2020)

The Caterpillar 910M is a wheel loader manufactured from 2016 to 2020. It has a weight of 8.12 tons and a transport length of 6.23…

The Caterpillar 910M is a wheel loader manufactured from 2016 to 2020. It has a weight of 8.12 tons and a transport length of 6.23 meters. The bucket capacity is 1.4 cubic meters, with a bucket width of 2.4 meters. The maximum discharge height is 2.85 meters. It has a travel speed of 20 km/h and a transport width of 2.26 meters. The transport height is 3.21 meters and the turning radius outside is 5.18 meters. The minimum bucket capacity is also 1.4 cubic meters.

910M

Years of manufacture: 2016—2020

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 910M Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 8.12 t

Standard tyres: 15.5 R25

Bucket width: 2.4 m

Bucket capacity: 1.4 m³

Bucket capacity min.: 1.4 m³

Steering mode: KL

Transport length: 6.23 m

Transport width: 2.26 m

Transport height: 3.21 m

Travel speed: 20 km/h

Max. discharge height: 2.85 m

Turning radius outside: 5.18 m

Engine manuf.: Caterpillar

Engine type: C4.4

Engine power: 72 kW

Displacement: 4.4 l

Max. torque: 441 Nm

Cylinder bore x stroke: 105x127 mm

Emission level: Tier 4 f

More technical details, like: bucket capacity max., lifting force, model series, dimension lxwxh, revolutions at max torque, no. of cylinders are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

Download specalog and datasheets (PDF)

Caterpillar 910M FAQ

When was the Caterpillar 910M manufactured?

The Caterpillar 910M was manufactured from 2016 to 2020.

How much does the Caterpillar 910M wheel loader weigh?

The Caterpillar 910M wheel loader weighs 8.12 tons.

What are the transport dimensions of the Caterpillar 910M wheel loader?

The Caterpillar 910M has a transport length of 6.23 meters, a transport width of 2.26 meters, and a transport height of 3.21 meters.

What is the travel speed of the Caterpillar 910M wheel loader?

The Caterpillar 910M wheel loader has a travel speed of 20 km/h.

What is the standard tyre size of the Caterpillar 910M wheel loader?

The Caterpillar 910M wheel loader is equipped with standard tyres sized 15.5 R25.

What are the maneuverability specifications of the Caterpillar 910M wheel loader?

The Caterpillar 910M has an articulated-frame steering system and an outside turning radius of 5.18 meters.

What is the maximum discharge height of the Caterpillar 910M?

The Caterpillar 910M has a maximum discharge height of 2.85 meters.

What are the specifications of the bucket on the Caterpillar 910M wheel loader?

The Caterpillar 910M wheel loader has a bucket capacity of 1.4 cubic meters, a minimum bucket capacity of 1.4 cubic meters, and a bucket width of 2.4 meters.

How much is a Caterpillar 910M Wheel loader (2016u20132020) worth?

The residual value of the Caterpillar 910M depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
