908M Caterpillar 908M Specifications & Technical Data (2015—2022)

The Caterpillar 908M is a wheel loader manufactured from 2015 to 2022. It has a weight of 6.36 tons and a transport length of 5.63…

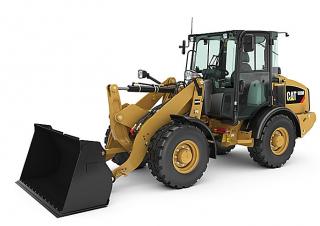

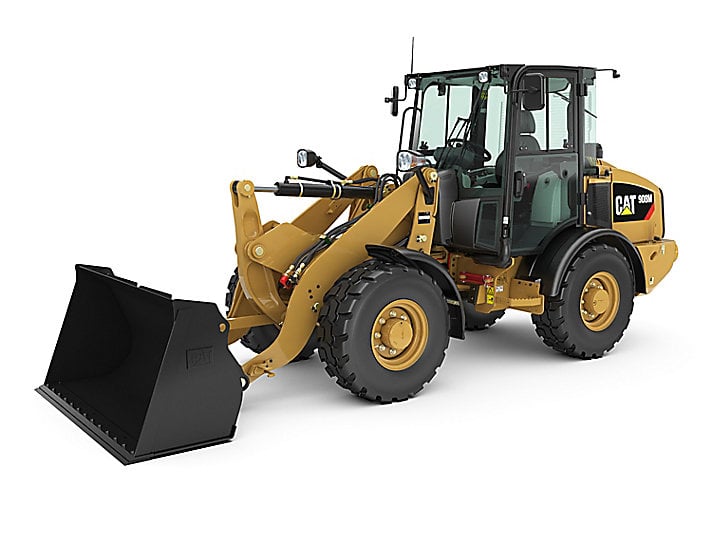

The Caterpillar 908M is a wheel loader manufactured from 2015 to 2022. It has a weight of 6.36 tons and a transport length of 5.63 meters. The bucket capacity is 1.1 cubic meters with a width of 2.06 meters. The maximum discharge height is 2.62 meters. It has a travel speed of 20 km/h and a transport width of 1.98 meters. The transport height is 2.65 meters and the turning radius outside is 4.53 meters. The bucket capacity is a minimum of 1.1 cubic meters. It is equipped with a swing loader.

Wheel Loaders Caterpillar 908M

Technical specs - 908M Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
6.36 t
Standard tyres
405/70 R20
Bucket width
2.06 m
Bucket capacity
1.1 m³
Bucket capacity min.
1.1 m³
Steering mode
KL
Transport length
5.63 m
Transport width
1.98 m
Transport height
2.65 m
Travel speed
20 km/h
Max. discharge height
2.62 m
Turning radius outside
4.53 m
Engine manuf.
Caterpillar
Engine type
C3.3B DIT
Engine power
54.6 kW
Displacement
3.3 l
Max. torque
257 Nm
Cylinder bore x stroke
94x120 mm
Emission level
Tier 4 f

More technical details, like: bucket capacity max., lifting force, model series, dimension lxwxh, revolutions at max torque, no. of cylinders are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter
No
Swing loader
Yes
telescopic
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download specalog and datasheets (PDF)

Caterpillar 908M FAQ

When was the Caterpillar 908M manufactured?

The Caterpillar 908M was manufactured from 2015 to 2022.

How much does the Caterpillar 908M wheel loader weigh?

The Caterpillar 908M wheel loader weighs 6.36 tons.

What are the transport dimensions of the Caterpillar 908M wheel loader?

The Caterpillar 908M wheel loader has a transport length of 5.63 meters, a transport width of 1.98 meters, and a transport height of 2.65 meters.

What is the travel speed of the Caterpillar 908M wheel loader?

The Caterpillar 908M wheel loader has a travel speed of 20 km/h.

What are the undercarriage specifications of the Caterpillar 908M wheel loader?

The Caterpillar 908M wheel loader is equipped with standard tyres sized 405/70 R20.

What are the maneuverability specifications of the Caterpillar 908M wheel loader?

The Caterpillar 908M wheel loader has an articulated-frame steering system and an outside turning radius of 4.53 meters.

What is the material handling capacity of the Caterpillar 908M in terms of maximum discharge height?

The Caterpillar 908M has a maximum discharge height of 2.62 meters.

What are the specifications of the bucket on the Caterpillar 908M wheel loader?

The Caterpillar 908M wheel loader has a bucket capacity of 1.1 cubic meters and a bucket width of 2.06 meters.

How much is a Caterpillar 908M Wheel loader (2015u20132022) worth?

The residual value of the Caterpillar 908M depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
