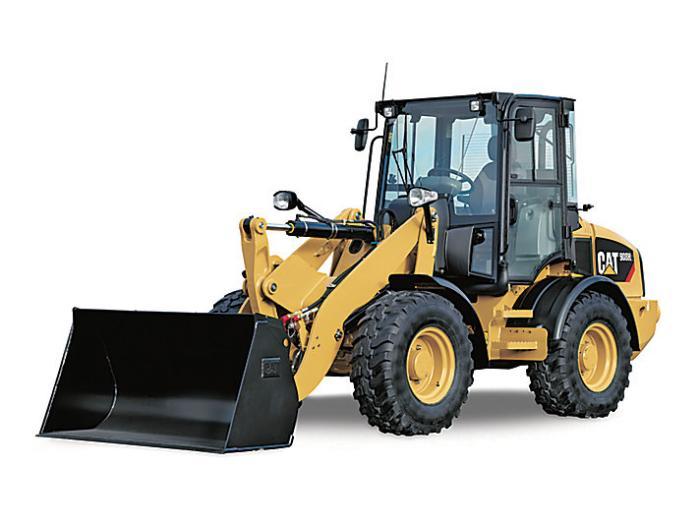

908H Caterpillar 908H Specifications & Technical Data (2007—2014)

The Caterpillar 908H is a wheel loader manufactured by Caterpillar from 2007 to 2014. It has a weight of 6.5 tons and a transport …

The Caterpillar 908H is a wheel loader manufactured by Caterpillar from 2007 to 2014. It has a weight of 6.5 tons and a transport length of 5.76 meters. The bucket capacity is 1.1 cubic meters, and it has a maximum discharge height of 2.6 meters. The travel speed of the machine is 20 km/h, and its transport width is 2.08 meters. The transport height is 2.65 meters. The lifting force of the loader is 61 kN, and it has a turning radius outside of 4.48 meters. The bucket capacity is a minimum of 1.1 cubic meters. The special equipment included with this machine is a quick hitch mechanism.

908H

Years of manufacture: 2007—2014

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 908H Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 6.5 t

Standard tyres: 405/70

Bucket capacity: 1.1 m³

Bucket capacity min.: 1.1 m³

Steering mode: KL

Transport length: 5.76 m

Transport width: 2.08 m

Transport height: 2.65 m

Travel speed: 20 km/h

Max. discharge height: 2.6 m

Turning radius outside: 4.48 m

Lifting force: 61 kN

Engine manuf.: Caterpillar

Engine type: 3044 C

Engine power: 58 kW

More technical details, like: bucket width, bucket capacity max., model series, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: Yes

Download specalog and datasheets (PDF)

Caterpillar 908H FAQ

When was the Caterpillar 908H manufactured?

The Caterpillar 908H was manufactured from 2007 to 2014.

How much does the Caterpillar 908H wheel loader weigh?

The Caterpillar 908H wheel loader weighs 6.5 tons.

What are the transport dimensions of the Caterpillar 908H wheel loader?

The Caterpillar 908H has a transport length of 5.76 meters, a transport width of 2.08 meters, and a transport height of 2.65 meters.

What is the travel speed of the Caterpillar 908H wheel loader?

The Caterpillar 908H wheel loader has a travel speed of 20 km/h.

What are the standard tyre specifications of the Caterpillar 908H wheel loader?

The Caterpillar 908H wheel loader is equipped with standard tyres sized 405/70.

What are the maneuverability specifications of the Caterpillar 908H wheel loader?

The Caterpillar 908H wheel loader has an articulated-frame steering system and an outside turning radius of 4.48 meters.

What is the lifting force of the Caterpillar 908H?

The Caterpillar 908H has a lifting force of 61 kN.

What is the material handling capacity of the Caterpillar 908H in terms of discharge height?

The Caterpillar 908H has a maximum discharge height of 2.6 meters.

What is the bucket capacity of the Caterpillar 908H wheel loader?

The Caterpillar 908H wheel loader has a bucket capacity of 1.1 cubic meters.
