908 H2 Caterpillar 908 H2 Specifications & Technical Data (2013—2026)

The Caterpillar 908 H2 is a wheel loader manufactured by Caterpillar since 2013. It has a weight of 6.46 tons and a transport leng…

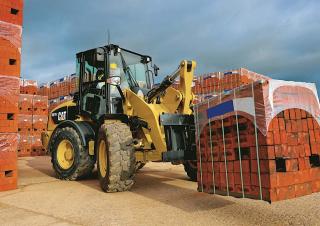

The Caterpillar 908 H2 is a wheel loader manufactured by Caterpillar since 2013. It has a weight of 6.46 tons and a transport length of 5.7 meters. The bucket capacity is 1.1 cubic meters with a width of 2.06 meters. The maximum discharge height is 2.54 meters. It has a travel speed of 35 km/h and a transport width of 1.98 meters. The transport height is 2.65 meters. The lifting force is 47 kN and it has a turning radius outside of 4.56 meters.

Wheel Loaders Caterpillar 908 H2

Technical specs - 908 H2 Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
6.46 t
Standard tyres
405/70 SPT9
Bucket width
2.06 m
Bucket capacity
1.1 m³
Transport length
5.7 m
Transport width
1.98 m
Transport height
2.65 m
Travel speed
35 km/h
Max. discharge height
2.54 m
Turning radius outside
4.56 m
Lifting force
47 kN
Engine manuf.
CAT
Engine type
C3.3B DIT
Engine power
51 kW
Displacement
3.3 l
Cylinder bore x stroke
94x120 mm
Emission level
Tier 4

More technical details, like: bucket capacity min., bucket capacity max., steering mode, model series, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter
No
Swing loader
No
telescopic
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download specalog and datasheets (PDF)

Caterpillar 908 H2 FAQ

When was the Caterpillar 908 H2 manufactured?

The Caterpillar 908 H2 was first produced in 2013.

How much does the Caterpillar 908 H2 wheel loader weigh?

The Caterpillar 908 H2 wheel loader weighs 6.46 tons.

What are the transport dimensions of the Caterpillar 908 H2 wheel loader?

The Caterpillar 908 H2 has a transport length of 5.7 meters, a transport width of 1.98 meters, and a transport height of 2.65 meters.

What is the travel speed of the Caterpillar 908 H2 wheel loader?

The Caterpillar 908 H2 wheel loader has a travel speed of 35 km/h.

What are the undercarriage specifications of the Caterpillar 908 H2 wheel loader?

The Caterpillar 908 H2 wheel loader is equipped with standard tyres sized 405/70 SPT9.

What is the turning radius of the Caterpillar 908 H2 wheel loader?

The Caterpillar 908 H2 wheel loader has an outside turning radius of 4.56 meters.

What are the power ratings of the Caterpillar 908 H2 wheel loader?

The source data does not provide power ratings for the Caterpillar 908 H2 wheel loader.

What is the maximum discharge height of the Caterpillar 908 H2 wheel loader for material handling?

The Caterpillar 908 H2 wheel loader has a maximum discharge height of 2.54 meters for material handling.

What are the bucket specifications of the Caterpillar 908 H2 wheel loader?

The Caterpillar 908 H2 wheel loader has a bucket capacity of 1.1 cubic meters and a bucket width of 2.06 meters.

How much is a Caterpillar 908 H2 Wheel loader (2013u20132025) worth?

The residual value of the Caterpillar 908 H2 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
