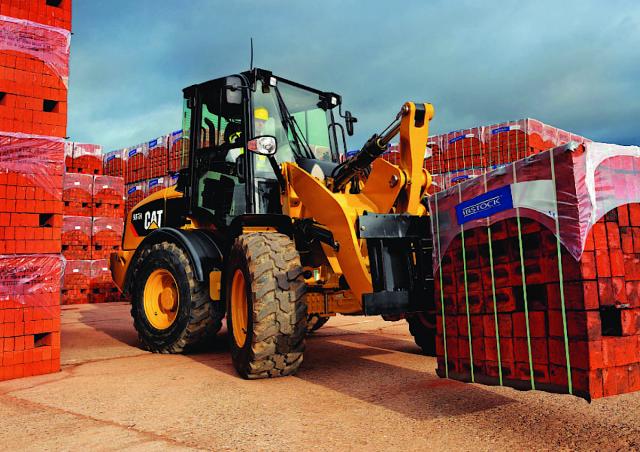

908 H Caterpillar 908 H Specifications & Technical Data (2009—2013)

The Caterpillar 908 H is a wheel loader manufactured from 2009 to 2013. It has a weight of 6.45 tons and a transport length of 5.7…

The Caterpillar 908 H is a wheel loader manufactured from 2009 to 2013. It has a weight of 6.45 tons and a transport length of 5.76 meters. The bucket capacity is 1.5 cubic meters, with a width of 1.98 meters. The maximum discharge height is 2.54 meters. It has a travel speed of 35 km/h and a transport width and height of 1.98 meters and 2.65 meters respectively. The turning radius outside is 4.56 meters. The bucket capacity ranges from 0.9 to 1.5 cubic meters.

Wheel Loaders Caterpillar 908 H

Technical specs - 908 H Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
6.45 t
Standard tyres
405/70 R20
Bucket width
1.98 m
Bucket capacity
1.5 m³
Bucket capacity min.
0.9 m³
Bucket capacity max.
1.5 m³
Transport length
5.76 m
Transport width
1.98 m
Transport height
2.65 m
Travel speed
35 km/h
Max. discharge height
2.54 m
Turning radius outside
4.56 m
Engine manuf.
CAT
Engine type
C3.4
Engine power
56 kW
Displacement
3.3 l
Cylinder bore x stroke
94x120 mm

More technical details, like: steering mode, lifting force, model series, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, emission level are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter
No
Swing loader
No
telescopic
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download specalog and datasheets (PDF)

Caterpillar 908 H FAQ

When was the Caterpillar 908 H manufactured?

The Caterpillar 908 H was manufactured from 2009 to 2013.

How much does the Caterpillar 908 H wheel loader weigh?

The Caterpillar 908 H wheel loader weighs 6.45 tons.

What are the transport dimensions of the Caterpillar 908 H wheel loader?

The Caterpillar 908 H has a transport length of 5.76 meters, a transport width of 1.98 meters, and a transport height of 2.65 meters.

What is the travel speed of the Caterpillar 908 H wheel loader?

The Caterpillar 908 H wheel loader has a travel speed of 35 km/h.

What are the undercarriage tyre specifications of the Caterpillar 908 H wheel loader?

The Caterpillar 908 H wheel loader is equipped with standard tyres sized 405/70 R20.

What is the outside turning radius of the Caterpillar 908 H wheel loader?

The Caterpillar 908 H wheel loader has an outside turning radius of 4.56 meters.

What is the maximum discharge height of the Caterpillar 908 H?

The Caterpillar 908 H has a maximum discharge height of 2.54 meters.

What are the specifications of the primary work tool bucket on the Caterpillar 908 H wheel loader?

The Caterpillar 908 H wheel loader has a bucket with a capacity ranging from 0.9 to 1.5 cubic meters and a width of 1.98 meters.

How much is a Caterpillar 908 H Wheel loader (2009u20132013) worth?

The residual value of the Caterpillar 908 H depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
