908 Caterpillar 908 Specifications & Technical Data (2022—2026)

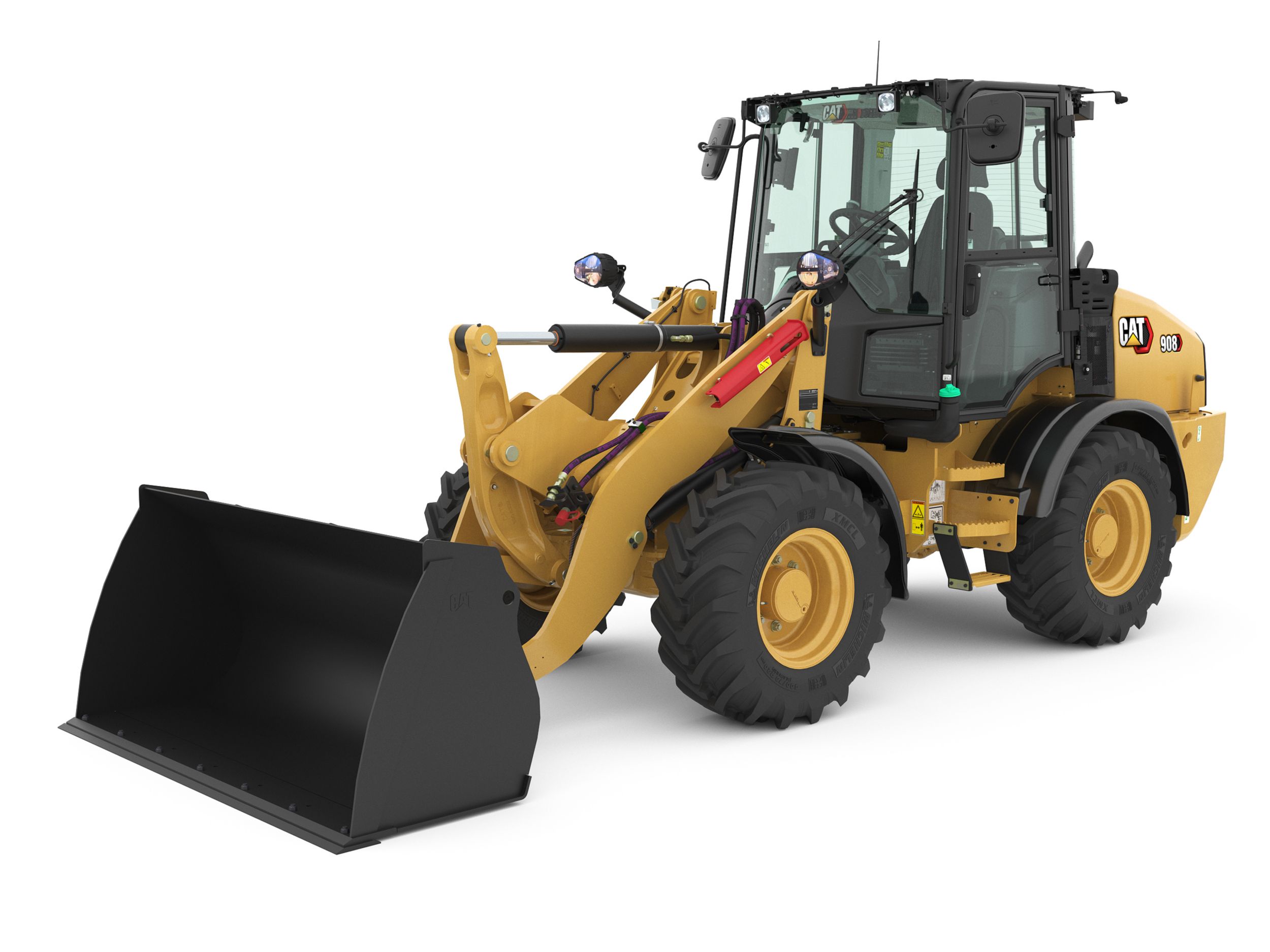

The Caterpillar 908 is a wheel loader manufactured since 2022. It has a weight of 6.63 tons and a transport length of 5.63 meters.…

The Caterpillar 908 is a wheel loader manufactured since 2022. It has a weight of 6.63 tons and a transport length of 5.63 meters. The bucket capacity is 1.15 cubic meters, with a bucket width of 2.06 meters. The maximum discharge height is 2.62 meters. It has a travel speed of 20 km/h and a transport width of 1.98 meters. The transport height is 2.65 meters and the turning radius outside is 4.53 meters. The bucket capacity is a minimum of 1.15 cubic meters. It is equipped with a swing loader.

908

Years of manufacture: 2022—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 908 Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 6.63 t

Standard tyres: 405/70 R20

Bucket width: 2.06 m

Bucket capacity: 1.15 m³

Bucket capacity min.: 1.15 m³

Steering mode: KL

Transport length: 5.63 m

Transport width: 1.98 m

Transport height: 2.65 m

Travel speed: 20 km/h

Max. discharge height: 2.62 m

Turning radius outside: 4.53 m

Engine manuf.: Caterpillar

Engine type: C2.8 DIT

Engine power: 55.4 kW

Displacement: 2.8 l

Revolutions at max torque: 2400 rpm

Max. torque: 300 Nm

Cylinder bore x stroke: 90x110 mm

Emission level: EU V

More technical details, like: bucket capacity max., lifting force, model series, dimension lxwxh, no. of cylinders are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: Yes
telescopic: No
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

Download specalog and datasheets (PDF)

Caterpillar 908 FAQ

When was the Caterpillar 908 manufactured?

The Caterpillar 908 was first produced in 2022.

How much does the Caterpillar 908 wheel loader weigh?

The Caterpillar 908 wheel loader weighs 6.63 tons.

What are the transport dimensions of the Caterpillar 908 wheel loader?

The Caterpillar 908 wheel loader has a transport length of 5.63 meters, a transport width of 1.98 meters, and a transport height of 2.65 meters.

What is the travel speed of the Caterpillar 908 wheel loader?

The Caterpillar 908 wheel loader has a travel speed of 20 km/h.

What is the standard tyre size of the Caterpillar 908 wheel loader?

The Caterpillar 908 wheel loader is equipped with the standard tyres sized 405/70 R20.

What are the maneuverability specifications of the Caterpillar 908 wheel loader?

The Caterpillar 908 wheel loader has an articulated-frame steering system and an outside turning radius of 4.53 meters.

What is the maximum discharge height of the Caterpillar 908?

The Caterpillar 908 has a maximum discharge height of 2.62 meters.

What are the bucket specifications of the Caterpillar 908 wheel loader?

The Caterpillar 908 wheel loader has a bucket capacity of 1.15 cubic meters, a minimum bucket capacity of 1.15 cubic meters, and a bucket width of 2.06 meters.
