906H Caterpillar 906H Specifications & Technical Data (2015—2015)

The Caterpillar 906H is a wheel loader manufactured by Caterpillar in 2015. It has a weight of 5.6 tons and a transport length of …

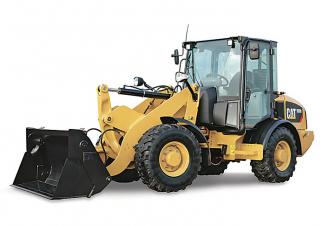

The Caterpillar 906H is a wheel loader manufactured by Caterpillar in 2015. It has a weight of 5.6 tons and a transport length of 5.6 meters. The bucket capacity is 0.9 cubic meters with a width of 2.05 meters. The maximum discharge height is 3.13 meters. It has a travel speed of 20 km/h and a transport width of 1.88 meters. The transport height is 2.46 meters. The lifting force is 45.5 kN. The turning radius outside is 4.48 meters. The bucket capacity is a minimum of 0.9 cubic meters. It is equipped with a swing loader.

906H

Years of manufacture: 2015—2015

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 906H Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 5.6 t

Standard tyres: 405/70

Bucket width: 2.05 m

Bucket capacity: 0.9 m³

Bucket capacity min.: 0.9 m³

Steering mode: KL

Transport length: 5.6 m

Transport width: 1.88 m

Transport height: 2.46 m

Travel speed: 20 km/h

Max. discharge height: 3.13 m

Turning radius outside: 4.48 m

Lifting force: 45.5 kN

Engine manuf.: Caterpillar

Engine type: C3.3B

Engine power: 51 kW

Displacement: 3.3 l

Revolutions at max torque: 2600 rpm

More technical details, like: bucket capacity max., model series, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: Yes
telescopic: No
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

Download specalog and datasheets (PDF)

Caterpillar 906H FAQ

When was the Caterpillar 906H manufactured?

The Caterpillar 906H was manufactured in 2015.

How much does the Caterpillar 906H wheel loader weigh?

The Caterpillar 906H wheel loader weighs 5.6 tons.

What are the transport dimensions of the Caterpillar 906H wheel loader?

The Caterpillar 906H has a transport length of 5.6 meters, a transport width of 1.88 meters, and a transport height of 2.46 meters.

What is the travel speed of the Caterpillar 906H wheel loader?

The Caterpillar 906H wheel loader has a travel speed of 20 km/h.

What are the undercarriage specifications of the Caterpillar 906H?

The Caterpillar 906H has standard tyres with a size of 405/70.

What are the maneuverability specifications of the Caterpillar 906H wheel loader?

The Caterpillar 906H wheel loader has an outside turning radius of 4.48 meters and features articulated-frame steering.

What is the power rating of the Caterpillar 906H wheel loader?

The available data does not provide a power rating for the Caterpillar 906H wheel loader.

What is the material handling capacity of the Caterpillar 906H in terms of maximum discharge height?

The Caterpillar 906H has a maximum discharge height of 3.13 meters.

What are the bucket specifications of the Caterpillar 906H wheel loader?

The Caterpillar 906H wheel loader has a bucket capacity of 0.9 cubic meters, a minimum bucket capacity of 0.9 cubic meters, and a bucket width of 2.05 meters.
