906H Caterpillar 906H Specifications & Technical Data (2007—2014)

Model rating: 7,25 / 10

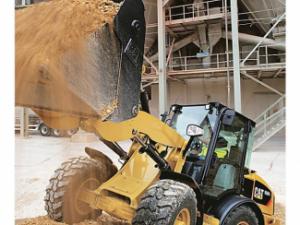

The Caterpillar 906H is a wheel loader manufactured from 2007 to 2014. It has a weight of 5.6 tons and a transport length of 5.6 m…

The Caterpillar 906H is a wheel loader manufactured from 2007 to 2014. It has a weight of 5.6 tons and a transport length of 5.6 meters. The bucket capacity is 0.9 cubic meters with a width of 2.05 meters. The maximum discharge height is 3.13 meters and it has a travel speed of 20 km/h. The transport width is 1.88 meters and the transport height is 2.46 meters. It has a lifting force of 45.5 kN and a turning radius outside of 4.48 meters. The bucket capacity is a minimum of 0.9 cubic meters. It is equipped with a quick hitch mechanism.

906H

Years of manufacture: 2007—2014

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Reviews
Transport
News

Technical specs - 906H Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 5.6 t

Standard tyres: 405/70

Bucket width: 2.05 m

Bucket capacity: 0.9 m³

Bucket capacity min.: 0.9 m³

Steering mode: KL

Transport length: 5.6 m

Transport width: 1.88 m

Transport height: 2.46 m

Travel speed: 20 km/h

Max. discharge height: 3.13 m

Turning radius outside: 4.48 m

Lifting force: 45.5 kN

Engine manuf.: Caterpillar

Engine type: 3044 C

Engine power: 51 kW

Revolutions at max torque: 2600 rpm

More technical details, like: bucket capacity max., model series, dimension lxwxh, displacement, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: Yes

Download specalog and datasheets (PDF)

Caterpillar 906H FAQ

When was the Caterpillar 906H manufactured?

The Caterpillar 906H was manufactured from 2007 to 2014.

How much does the Caterpillar 906H wheel loader weigh?

The Caterpillar 906H wheel loader weighs 5.6 tons.

What are the transport dimensions of the Caterpillar 906H wheel loader?

The Caterpillar 906H has a transport length of 5.6 meters, a transport width of 1.88 meters, and a transport height of 2.46 meters.

What is the travel speed of the Caterpillar 906H wheel loader?

The Caterpillar 906H wheel loader has a travel speed of 20 km/h.

What is the standard tyre size of the Caterpillar 906H wheel loader?

The Caterpillar 906H wheel loader is equipped with standard tyres with a size of 405/70.

What are the maneuverability specifications of the Caterpillar 906H wheel loader?

The Caterpillar 906H wheel loader has an articulated-frame steering system and an outside turning radius of 4.48 meters.

What is the lifting force of the Caterpillar 906H wheel loader?

The Caterpillar 906H wheel loader has a lifting force of 45.5 kN.

What is the maximum discharge height of the Caterpillar 906H?

The Caterpillar 906H has a maximum discharge height of 3.13 meters.

What are the specifications of the primary work tool bucket on the Caterpillar 906H wheel loader?

The Caterpillar 906H wheel loader is equipped with a bucket that has a capacity of 0.9 cubic meters and a width of 2.05 meters.

How much is a Caterpillar 906H Wheel loader (2007u20132014) worth?

The residual value of the Caterpillar 906H depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Reviews

Model rating: 7,25 / 10

Caterpillar 906H user from Finland

Nice, stong litte payloader. Agile,very versatile!

Caterpillar 906H user from Sweden

Good size for farming usage
