W30 Case W30 Specifications & Technical Data (1986—2020)

The Case W30 is a wheel loader manufactured by Case since 1986. It has a weight of 13.17 tons and a transport length of 7.04 meter…

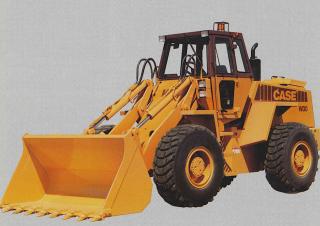

The Case W30 is a wheel loader manufactured by Case since 1986. It has a weight of 13.17 tons and a transport length of 7.04 meters. The bucket capacity is 2.29 cubic meters with a width of 2.68 meters. The maximum discharge height is 2.82 meters. It has a travel speed of 41.5 km/h and a transport width of 2.48 meters. The transport height is 3.2 meters and the turning radius outside is 11.1 meters.

Wheel Loaders Case W30

Technical specs - W30 Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
13.17 t
Standard tyres
17.5x25
Bucket width
2.68 m
Bucket capacity
2.29 m³
Transport length
7.04 m
Transport width
2.48 m
Transport height
3.2 m
Travel speed
41.5 km/h
Max. discharge height
2.82 m
Turning radius outside
11.1 m
Engine manuf.
Case
Engine type
A504-BDT
Engine power
114.1 kW
Displacement
8.26 l
Revolutions at max torque
1400 rpm
Max. torque
604.7 Nm
No. of cylinders
6
Cylinder bore x stroke
117x127 mm

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter
No
Swing loader
No
telescopic
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Case W30 FAQ

When was the Case W30 manufactured?

The Case W30 was manufactured from 1986 to 2020.

How much does the Case W30 wheel loader weigh?

The Case W30 wheel loader weighs 13.17 tons.

What are the transport dimensions of the Case W30 wheel loader?

The Case W30 wheel loader has a transport length of 7.04 meters, a transport width of 2.48 meters, and a transport height of 3.2 meters.

What is the travel speed of the Case W30 wheel loader?

The Case W30 wheel loader has a travel speed of 41.5 km/h.

What are the undercarriage specifications of the Case W30 wheel loader?

The Case W30 wheel loader is equipped with standard tyres sized 17.5x25.

What is the turning radius of the Case W30 wheel loader?

The Case W30 wheel loader has an outside turning radius of 11.1 meters.

What is the maximum discharge height of the Case W30?

The Case W30 has a maximum discharge height of 2.82 meters.

What are the bucket specifications of the Case W30 wheel loader?

The Case W30 wheel loader has a bucket capacity of 2.29 cubic meters and a bucket width of 2.68 meters.

How much is a Case W30 Wheel loader (1986u20132020) worth?

The residual value of the Case W30 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
