921 C/XR Case 921 C/XR Specifications & Technical Data (1999—2025)

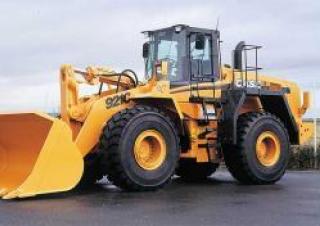

The Case 921 C/XR is a wheel loader manufactured by Case since 1999. It has a weight of 23.392 tons and a transport length of 8.55…

The Case 921 C/XR is a wheel loader manufactured by Case since 1999. It has a weight of 23.392 tons and a transport length of 8.55 meters. The bucket width is 3.05 meters and it has a travel speed of 38.8 km/h. The transport width is 3 meters and the transport height is 3.57 meters. The turning radius outside is 6.14 meters. The maximum bucket capacity is 3.07 cubic meters, while the minimum bucket capacity is 2.9 cubic meters.

Wheel Loaders Case 921 C/XR

Technical specs - 921 C/XR Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
23.392 t
Standard tyres
26.5x25
Bucket width
3.05 m
Bucket capacity min.
2.9 m³
Bucket capacity max.
3.07 m³
Transport length
8.55 m
Transport width
3 m
Transport height
3.57 m
Travel speed
38.8 km/h
Turning radius outside
6.14 m
Model series
C
Engine manuf.
Cummins
Engine type
M11-C270
Engine power
201 kW
Displacement
10.8 l
Max. torque
1288 Nm
No. of cylinders
6
Cylinder bore x stroke
125x147 mm

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter
No
Swing loader
No
telescopic
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Case 921 C/XR FAQ

When was the Case 921 C/XR manufactured?

The Case 921 C/XR was first produced in 1999.

What is the weight of the Case 921 C/XR wheel loader?

The Case 921 C/XR wheel loader weighs 23.39 tons.

What are the transport dimensions of the Case 921 C/XR wheel loader?

The Case 921 C/XR has a transport length of 8.55 meters, a transport width of 3 meters, and a transport height of 3.57 meters.

What is the travel speed of the Case 921 C/XR wheel loader?

The Case 921 C/XR has a travel speed of 38.8 km/h.

What are the standard tyre specifications of the Case 921 C/XR wheel loader?

The Case 921 C/XR wheel loader has standard tyres sized 26.5x25.

What is the turning radius of the Case 921 C/XR wheel loader?

The Case 921 C/XR has an outside turning radius of 6.14 meters.

What are the bucket specifications of the Case 921 C/XR wheel loader?

The Case 921 C/XR wheel loader has a bucket with a maximum capacity of 3.07 cubic meters, a minimum capacity of 2.9 cubic meters, and a width of 3.05 meters.

How much is a Case 921 C/XR Wheel loader (1999u20132025) worth?

The residual value of the Case 921 C/XR depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
