721 F Case 721 F Specifications & Technical Data (2010—2026)

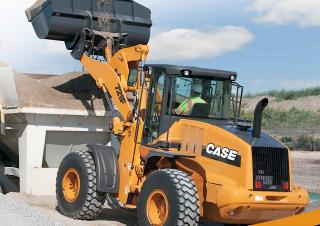

The Case 721 F is a wheel loader manufactured by Case since 2010. It has a weight of 14.292 tons and a transport length of 7.59 me…

The Case 721 F is a wheel loader manufactured by Case since 2010. It has a weight of 14.292 tons and a transport length of 7.59 meters. The bucket width is 2.7 meters, and it has a travel speed of 40 km/h. The transport width is 2.65 meters, and the transport height is 3.38 meters. The turning radius outside is 5.75 meters. The maximum bucket capacity is 2.11 cubic meters, while the minimum bucket capacity is 1.85 cubic meters.

721 F

Years of manufacture: 2010—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 721 F Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 14.292 t

Standard tyres: 20.5x25 16

Bucket width: 2.7 m

Bucket capacity min.: 1.85 m³

Bucket capacity max.: 2.11 m³

Transport length: 7.59 m

Transport width: 2.65 m

Transport height: 3.38 m

Travel speed: 40 km/h

Turning radius outside: 5.75 m

Model series: F

Engine manuf.: FPT

Engine type: F4HFE613Y

Engine power: 145 kW

Displacement: 6.7 l

Max. torque: 950 Nm

No. of cylinders: 6

Cylinder bore x stroke: 104x132 mm

Emission level: Tier 4

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

Case 721 F FAQ

When was the Case 721 F manufactured?

The Case 721 F was first produced in 2010.

How much does the Case 721 F wheel loader weigh?

The Case 721 F wheel loader weighs 14.292 tons.

What are the transport dimensions of the Case 721 F wheel loader?

The Case 721 F wheel loader has a transport length of 7.59 meters, a transport width of 2.65 meters, and a transport height of 3.38 meters.

What is the travel speed of the Case 721 F wheel loader?

The Case 721 F wheel loader has a travel speed of 40 km/h.

What are the undercarriage specifications of the Case 721 F wheel loader?

The Case 721 F wheel loader is equipped with standard tyres sized 20.5x25 16.

What is the turning radius of the Case 721 F wheel loader?

The Case 721 F wheel loader has an outside turning radius of 5.75 meters.

What are the bucket specifications of the Case 721 F wheel loader?

The Case 721 F wheel loader has a bucket width of 2.7 meters, with a capacity ranging from 1.85 to 2.11 cubic meters.
