621 E Case 621 E Specifications & Technical Data (2007—2012)

The Case 621 E is a wheel loader manufactured from 2007 to 2012. It has a weight of 12.43 tons and a transport length of 7.384 met…

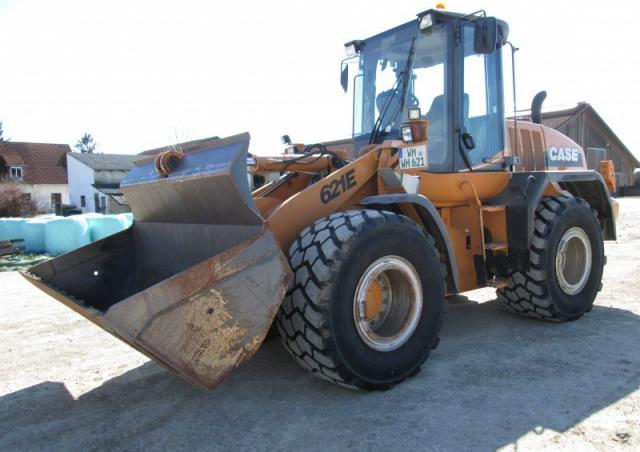

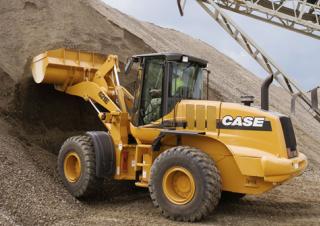

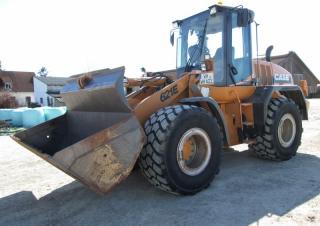

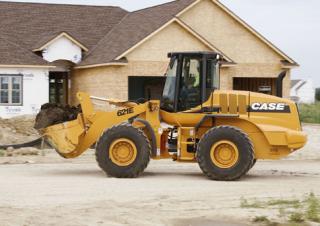

The Case 621 E is a wheel loader manufactured from 2007 to 2012. It has a weight of 12.43 tons and a transport length of 7.384 meters. The bucket capacity is 2.3 cubic meters, with a bucket width of 2.49 meters. The maximum discharge height is 2.801 meters, and it has a travel speed of 38.6 km/h. The transport width is 2.5 meters, and the transport height is 3.395 meters. The turning radius outside is 11.549 meters. Special equipment includes air conditioning.

621 E

Years of manufacture: 2007—2012

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Reviews
Transport
News

Technical specs - 621 E Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 12.43 t

Standard tyres: 20.5x25

Bucket width: 2.49 m

Bucket capacity: 2.3 m³

Bucket capacity min.: 2.3 m³

Steering mode: KL

Transport length: 7.384 m

Transport width: 2.5 m

Transport height: 3.395 m

Travel speed: 38.6 km/h

Max. discharge height: 2.801 m

Turning radius outside: 11.549 m

Model series: E

Engine manuf.: Case

Engine type: 667TA

Engine power: 121 kW

Displacement: 6.7 l

Revolutions at max torque: 1800 rpm

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: Yes
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

Case 621 E FAQ

When was the Case 621 E manufactured?

The Case 621 E was manufactured from 2007 to 2012.

How much does the Case 621 E wheel loader weigh?

The Case 621 E wheel loader weighs 12.43 tons.

What are the transport dimensions of the Case 621 E wheel loader?

The Case 621 E wheel loader has a transport length of 7.38 meters, a transport width of 2.5 meters, and a transport height of 3.4 meters.

What is the travel speed of the Case 621 E wheel loader?

The Case 621 E wheel loader has a travel speed of 38.6 km/h.

What is the standard tyre size of the Case 621 E wheel loader?

The Case 621 E wheel loader is equipped with standard tyres sized 20.5x25.

What are the maneuverability specifications of the Case 621 E wheel loader?

The Case 621 E wheel loader has an articulated-frame steering mode and an outside turning radius of 11.549 meters.

What is the maximum discharge height of the Case 621 E?

The Case 621 E has a maximum discharge height of 2.8 meters.

What are the bucket specifications of the Case 621 E wheel loader?

The Case 621 E wheel loader has a bucket capacity of 2.3 cubic meters, a minimum bucket capacity of 2.3 cubic meters, and a bucket width of 2.49 meters.

How much is a Case 621 E Wheel loader (2007u20132012) worth?

The residual value of the Case 621 E depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
