621 D Case 621 D Specifications & Technical Data (2004—2005)

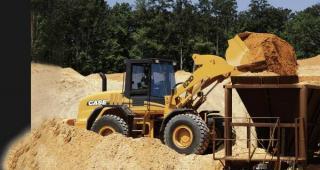

The Case 621 D is a wheel loader manufactured by Case from 2004 to 2005. It has a weight of 11.82 tons and a transport length of 7…

The Case 621 D is a wheel loader manufactured by Case from 2004 to 2005. It has a weight of 11.82 tons and a transport length of 7.12 meters. The bucket capacity is 2.1 cubic meters, with a maximum discharge height of 3.8 meters. The travel speed of the machine is 39 km/h. It has a transport width of 2.6 meters and a transport height of 3.26 meters. The lifting force of the wheel loader is 105 kN, and it has a turning radius outside of 5.73 meters. The bucket capacity is a minimum of 2.1 cubic meters. The special equipment included with this machine is air conditioning.

621 D

Years of manufacture: 2004—2005

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 621 D Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 11.82 t

Standard tyres: 20.5-55

Bucket capacity: 2.1 m³

Bucket capacity min.: 2.1 m³

Steering mode: KL

Transport length: 7.12 m

Transport width: 2.6 m

Transport height: 3.26 m

Travel speed: 39 km/h

Max. discharge height: 3.8 m

Turning radius outside: 5.73 m

Lifting force: 105 kN

Model series: D

Engine manuf.: Case

Engine type: 668 TA-M 2

Engine power: 103 kW

Displacement: 6.7 l

Revolutions at max torque: 1800 rpm

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: Yes
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

621 D Case Specification for Europe (EN)

Case 621 D FAQ

When was the Case 621 D manufactured?

The Case 621 D was manufactured from 2004 to 2005.

How much does the Case 621 D wheel loader weigh?

The Case 621 D wheel loader weighs 11.82 tons.

What are the transport dimensions of the Case 621 D wheel loader?

The Case 621 D has a transport length of 7.12 meters, a transport width of 2.6 meters, and a transport height of 3.26 meters.

What is the travel speed of the Case 621 D wheel loader?

The Case 621 D wheel loader has a travel speed of 39 km/h.

What are the undercarriage specifications of the Case 621 D wheel loader?

The Case 621 D wheel loader is equipped with standard tyres sized 20.5-55.

What are the maneuverability specifications of the Case 621 D wheel loader?

The Case 621 D wheel loader has an articulated-frame steering system and an outside turning radius of 5.73 meters.

What are the power ratings of the Case 621 D?

The available data does not include power ratings for the Case 621 D.

What is the maximum discharge height of the Case 621 D wheel loader?

The Case 621 D wheel loader has a maximum discharge height of 3.8 meters.

What is the bucket capacity of the Case 621 D wheel loader?

The Case 621 D wheel loader has a bucket capacity of 2.1 cubic meters.

How much is a Case 621 D Wheel loader (2004u20132005) worth?

The residual value of the Case 621 D depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
