521G Case 521G Specifications & Technical Data (2017—2020)

The Case 521G is a wheel loader manufactured from 2017 to 2020. It has a weight of 11.77 tons and a transport length of 6.94 meter…

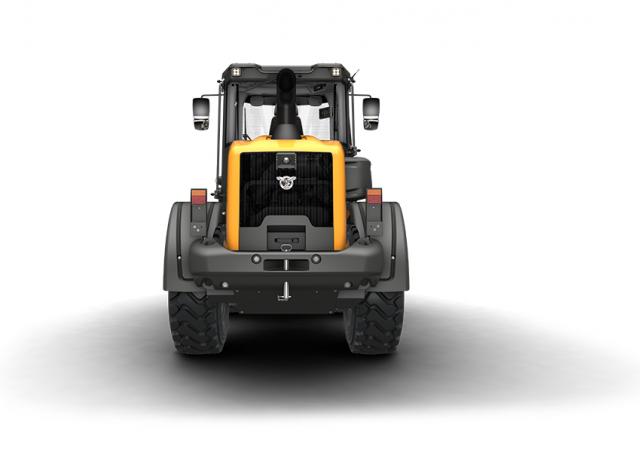

The Case 521G is a wheel loader manufactured from 2017 to 2020. It has a weight of 11.77 tons and a transport length of 6.94 meters. The bucket capacity is 1.9 cubic meters, with a bucket width of 2.5 meters. The maximum discharge height is 2.61 meters, and it has a travel speed of 40 km/h. The transport width is 2.5 meters, and the transport height is 3.27 meters. The turning radius outside is 5.53 meters. Special equipment includes air conditioning.

521G

Years of manufacture: 2017—2020

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 521G Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 11.77 t

Standard tyres: 17.5 R25 L3

Bucket width: 2.5 m

Bucket capacity: 1.9 m³

Bucket capacity min.: 1.9 m³

Steering mode: KL

Transport length: 6.94 m

Transport width: 2.5 m

Transport height: 3.27 m

Travel speed: 40 km/h

Max. discharge height: 2.61 m

Turning radius outside: 5.53 m

Model series: G

Engine manuf.: CNH

Engine type: N45

Engine power: 106 kW

Displacement: 4.5 l

Revolutions at max torque: 1800 rpm

Max. torque: 608 Nm

No. of cylinders: 4

Emission level: EU Stage IV and US Tier IV Final

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: Yes
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

Case 521G FAQ

When was the Case 521G manufactured?

The Case 521G was manufactured from 2017 to 2020.

How much does the Case 521G wheel loader weigh?

The Case 521G wheel loader weighs 11.77 tons.

What are the transport dimensions of the Case 521G wheel loader?

The Case 521G has a transport length of 6.94 meters, a transport width of 2.5 meters, and a transport height of 3.27 meters.

What is the travel speed of the Case 521G wheel loader?

The Case 521G wheel loader has a travel speed of 40 km/h.

What are the undercarriage tyre specifications of the Case 521G wheel loader?

The Case 521G wheel loader is equipped with standard tyres sized 17.5 R25 L3.

What are the maneuverability specifications of the Case 521G wheel loader?

The Case 521G wheel loader has an articulated-frame steering system and an outside turning radius of 5.53 meters.

What is the material handling capacity of the Case 521G in terms of discharge height?

The Case 521G has a maximum discharge height of 2.61 meters.

What are the specifications of the bucket on the Case 521G wheel loader?

The Case 521G wheel loader has a bucket with a capacity of 1.9 cubic meters, a minimum bucket capacity of 1.9 cubic meters, and a bucket width of 2.5 meters.
