521 G Case 521 G Specifications & Technical Data (2021—2026)

The Case 521G is a wheel loader manufactured by Case since 2021. It has a weight of 11.77 tons and a transport length of 6.94 mete…

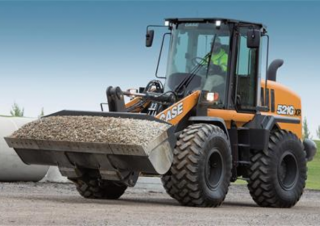

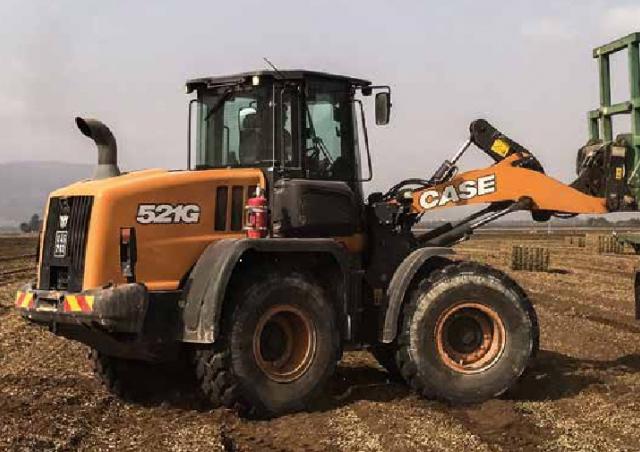

The Case 521G is a wheel loader manufactured by Case since 2021. It has a weight of 11.77 tons and a transport length of 6.94 meters. The bucket capacity is 1.9 cubic meters, with a bucket width of 2.5 meters. The maximum discharge height is 2.61 meters. It has a travel speed of 40 km/h and a transport width of 2.5 meters. The transport height is 3.27 meters and the turning radius outside is 5.53 meters. The bucket capacity remains constant at 1.9 cubic meters. It is equipped with air conditioning and a diesel particulate filter.

521 G

Years of manufacture: 2021—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 521 G Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 11.77 t

Standard tyres: 17.5 R25 L3

Bucket width: 2.5 m

Bucket capacity: 1.9 m³

Bucket capacity min.: 1.9 m³

Steering mode: KL

Transport length: 6.94 m

Transport width: 2.5 m

Transport height: 3.27 m

Travel speed: 40 km/h

Max. discharge height: 2.61 m

Turning radius outside: 5.53 m

Model series: G

Engine manuf.: CNH

Engine type: N45

Engine power: 106 kW

Displacement: 4.5 l

Revolutions at max torque: 1800 rpm

Max. torque: 608 Nm

No. of cylinders: 4

Emission level: V

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: Yes
Swing loader: No
telescopic: No
Aircondition: Yes
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

Case 521 G FAQ

When was the Case 521 G manufactured?

The Case 521 G was first produced in 2021.

How much does the Case 521 G wheel loader weigh?

The Case 521 G wheel loader weighs 11.77 tons.

What are the transport dimensions of the Case 521 G wheel loader?

The Case 521 G has a transport length of 6.94 meters, a transport width of 2.5 meters, and a transport height of 3.27 meters.

What is the travel speed of the Case 521 G wheel loader?

The Case 521 G wheel loader has a travel speed of 40 km/h.

What are the undercarriage specifications of the Case 521 G wheel loader?

The Case 521 G wheel loader is equipped with standard tyres sized 17.5 R25 L3.

What are the maneuverability specifications of the Case 521 G wheel loader?

The Case 521 G wheel loader has an articulated-frame steering system and an outside turning radius of 5.53 meters.

What is the maximum discharge height of the Case 521 G wheel loader?

The Case 521 G wheel loader has a maximum discharge height of 2.61 meters.

What are the bucket specifications of the Case 521 G wheel loader?

The Case 521 G wheel loader has a bucket capacity of 1.9 cubic meters and a bucket width of 2.5 meters.
