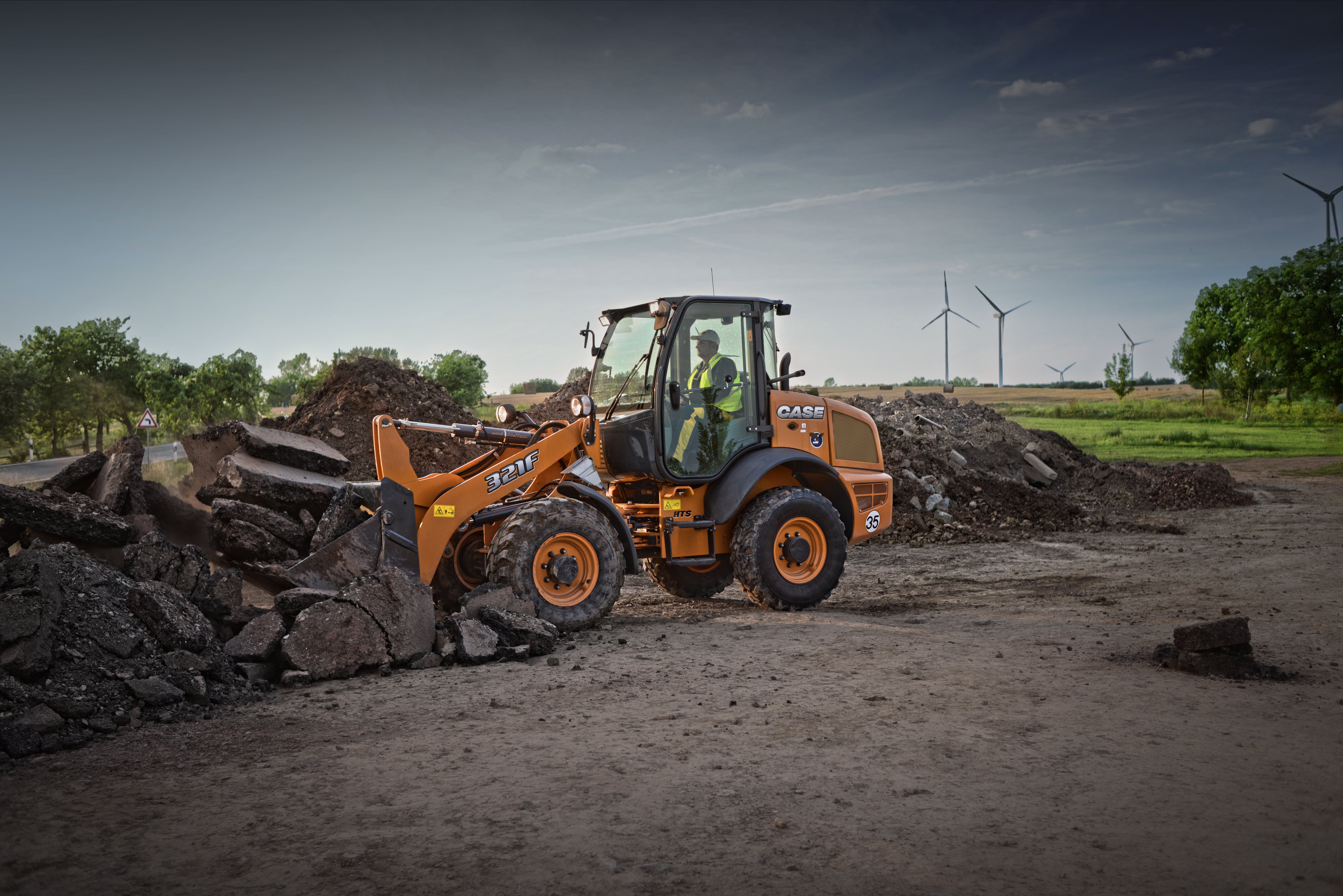

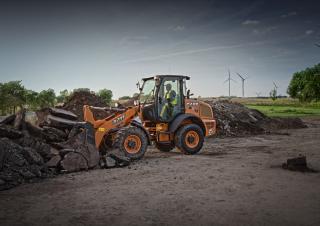

    Case 321F Specifications & Technical Data (2014-2020)

    Rate this machine now!

    case is the manufacturer of the wheel loader model 321F. Find and download detailed specs and data sheets for this machine here. ... Read more

    case is the manufacturer of the wheel loader model 321F. Find and download detailed specs and data sheets for this machine here.

    This wheel loader is built to provide up to 55kW or 73 horse power, delivered from its powerful CNH engine to the 6.535t 321F machine. This case wheel loader belongs to the medium sized machine segment in the wheel loaders category. The model's dimensions are 5.68m x 2.1m x 2.68m. Standard tyres for this case 321F wheel loader have a size of 14.5. The Wheel Loader 321F case is designed to travel at a top speed of 33km/h. The bucket capacity of 1.2m³ and the maximal discharge height of 2.69m are about average for this type of machine. This case 321F is equipped with a bucket that is 2.1m wide.

    Since 2014, this model has included Quick hitch hydr.. Diesel particulate filter, telescopic and Pivoting loader are not provided on this model as of 2018. Find detailed specifications and machine details in the original case 321F datasheet.

    For more detailed information about pricing and current residual values, check out the LECTURA Valuation system. This machine is still being manufactured by case and is offered with a list price between €65000 and €82000.

    The 321F case can be compared to several models from other manufacturers. The closest wheel loaders based on specification and pricing are the Komatsu WA 90-5, Terex-Schaeff SKL 854 and Hitachi ZW 95. Case currently produces 14 other wheel loaders, which range from 5.3t up to 29.5t - the most visited on LECTURA Specs are 221F, 121F, 721G. Having been in production from 2014 to 2018, the 321F wheel loader ranks in the LECTURA index at #65. Want more detailed specifications? Download the latest case 321F specs data sheet on LECTURA Specs today!

    Technical specs - 321F Case

    Specification

    Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.

    • Weight 6.53 t
    • Standard tyres 14.5-20
    • Bucket width 2.1 m
    • Bucket capacity 1.2 m³
    • Bucket capacity min. 1.2 m³
    • Steering mode KL
    • Transport length 5.68 m
    • Transport width 2.1 m
    • Transport height 2.68 m
    • Travel speed 33 km/h
    • Max. discharge height 2.69 m
    • Turning radius outside 3.99 m
    • Lifting force 60.5 kN
    • Engine manuf. CNH
    • Engine type F5H
    • Engine power 55 kW
    • Displacement 3.4 l
    • Revolutions at max torque 2100 rpm
    • Max. torque 316 Nm
    • Emission level  Stage IIIB / Tier 4 final

    Basic model with ROPS cabin, std. shovel and teeth

    Special equipment

    • Diesel particulate filter
    • Swing loader
    • telescopic
    • Aircondition
    • Quick hitch hydr.
    • Quick hitch mech.
