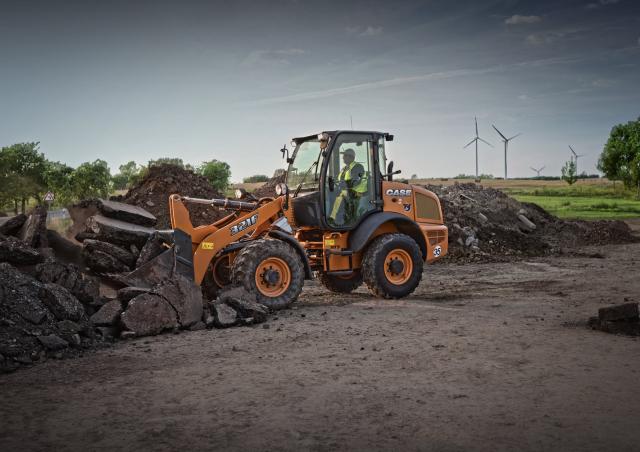

321F Case 321F Specifications & Technical Data (2014—2020)

The Case 321F is a wheel loader manufactured from 2014 to 2020. It has a weight of 6.5 tons and a transport length of 5.753 meters…

The Case 321F is a wheel loader manufactured from 2014 to 2020. It has a weight of 6.5 tons and a transport length of 5.753 meters. The bucket capacity is 1.2 cubic meters, with a bucket width of 2.1 meters. The maximum discharge height is 3.459 meters, and it has a travel speed of 35 km/h. The transport width is 2.022 meters, and the transport height is 2.807 meters. It has a lifting force of 60.5 kN and a turning radius outside of 4.45 meters. Special equipment includes a quick hitch hydraulic mechanism.

321F

Years of manufacture: 2014—2020

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 321F Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 6.5 t

Standard tyres: 405/80 R 20

Bucket width: 2.1 m

Bucket capacity: 1.2 m³

Bucket capacity min.: 1.2 m³

Steering mode: KL

Transport length: 5.753 m

Transport width: 2.022 m

Transport height: 2.807 m

Travel speed: 35 km/h

Max. discharge height: 3.459 m

Turning radius outside: 4.45 m

Lifting force: 60.5 kN

Model series: F

Engine manuf.: CNH

Engine type: F5H

Engine power: 55 kW

Displacement: 3.4 l

Revolutions at max torque: 2100 rpm

Max. torque: 316 Nm

Emission level: Stage IIIB / Tier 4 ﬁnal

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: No
Quick hitch hydr.: Yes
Quick hitch mech.: No

Download datasheets (PDF)

Case 321F FAQ

When was the Case 321F manufactured?

The Case 321F was manufactured from 2014 to 2020.

How much does the Case 321F wheel loader weigh?

The Case 321F wheel loader weighs 6.5 tons.

What are the transport dimensions of the Case 321F wheel loader?

The Case 321F wheel loader has a transport length of 5.75 meters, a transport width of 2.02 meters, and a transport height of 2.81 meters.

What is the travel speed of the Case 321F wheel loader?

The Case 321F wheel loader has a travel speed of 35 km/h.

What are the undercarriage specifications of the Case 321F wheel loader?

The Case 321F wheel loader is equipped with standard tyres sized 405/80 R 20.

What are the maneuverability specifications of the Case 321F wheel loader?

The Case 321F wheel loader has an articulated-frame steering mode and an outside turning radius of 4.45 meters.

What is the power rating of the Case 321F wheel loader?

The source data does not provide a power rating for the Case 321F wheel loader.

What is the material handling capacity of the Case 321F in terms of discharge height?

The Case 321F has a maximum discharge height of 3.46 meters.

What are the bucket specifications of the Case 321F wheel loader?

The Case 321F wheel loader has a bucket capacity of 1.2 cubic meters, a minimum bucket capacity of 1.2 cubic meters, and a bucket width of 2.1 meters.
