221F Case 221F Specifications & Technical Data (2014—2020)

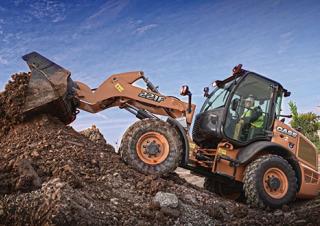

The Case 221F is a wheel loader manufactured from 2014 to 2020. It has a weight of 6.1 tons and a transport length of 5.598 meters…

The Case 221F is a wheel loader manufactured from 2014 to 2020. It has a weight of 6.1 tons and a transport length of 5.598 meters. The bucket capacity is 1.1 cubic meters, with a bucket width of 2.05 meters. The maximum discharge height is 3.386 meters, and it has a travel speed of 35 km/h. The transport width is 1.936 meters, and the transport height is 2.813 meters. It has a lifting force of 55 kN and a turning radius outside of 4.3 meters. Special equipment includes a quick hitch hydraulic mechanism.

221F

Years of manufacture: 2014—2020

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 221F Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 6.1 t

Standard tyres: 365/80 R 20

Bucket width: 2.05 m

Bucket capacity: 1.1 m³

Bucket capacity min.: 1.1 m³

Steering mode: KL

Transport length: 5.598 m

Transport width: 1.936 m

Transport height: 2.813 m

Travel speed: 35 km/h

Max. discharge height: 3.386 m

Turning radius outside: 4.3 m

Lifting force: 55 kN

Model series: F

Engine manuf.: CNH

Engine type: F5H

Engine power: 55 kW

Displacement: 3.4 l

Revolutions at max torque: 2100 rpm

Max. torque: 316 Nm

Emission level: Stage IIIB / Tier 4 ﬁnal

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: No
Quick hitch hydr.: Yes
Quick hitch mech.: No

Download datasheets (PDF)

Case 221F FAQ

When was the Case 221F wheel loader manufactured?

The Case 221F wheel loader was manufactured from 2014 to 2020.

How much does the Case 221F wheel loader weigh?

The Case 221F wheel loader weighs 6.1 tons.

What are the transport dimensions of the Case 221F wheel loader?

The Case 221F wheel loader has a transport length of 5.6 meters, a transport width of 1.94 meters, and a transport height of 2.81 meters.

What is the travel speed of the Case 221F wheel loader?

The Case 221F wheel loader has a travel speed of 35 km/h.

What are the standard tyres of the Case 221F wheel loader?

The Case 221F wheel loader has standard tyres sized 365/80 R 20.

What are the maneuverability specifications of the Case 221F wheel loader?

The Case 221F wheel loader has an articulated-frame steering system and an outside turning radius of 4.3 meters.

What are the power ratings of the Case 221F wheel loader?

The power ratings of the Case 221F wheel loader are not provided in the available data.

What is the maximum discharge height of the Case 221F?

The Case 221F has a maximum discharge height of 3.39 meters.

What are the specifications of the bucket on the Case 221F wheel loader?

The Case 221F wheel loader has a bucket with a capacity of 1.1 cubic meters and a width of 2.05 meters.
