221 F Case 221 F Specifications & Technical Data (2021—2026)

The Case 221F is a wheel loader manufactured since 2021. It has a weight of 6.1 tons and a transport length of 5.598 meters. The b…

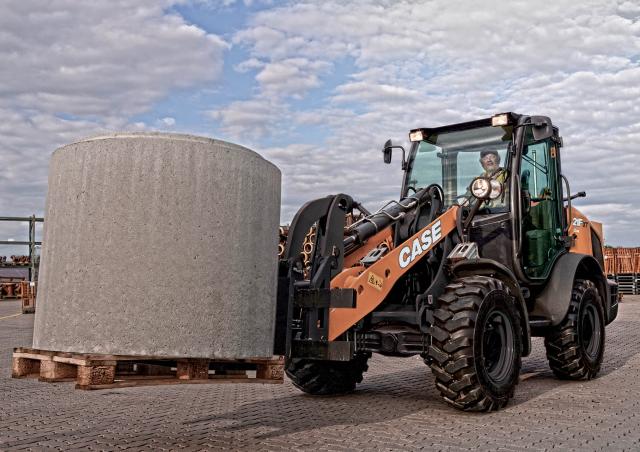

The Case 221F is a wheel loader manufactured since 2021. It has a weight of 6.1 tons and a transport length of 5.598 meters. The bucket capacity is 1.1 cubic meters, with a bucket width of 2.05 meters. The maximum discharge height is 3.386 meters, and it has a travel speed of 35 km/h. The transport width is 1.936 meters, and the transport height is 2.813 meters. It has a lifting force of 55 kN and a turning radius outside of 4.3 meters. Special equipment includes a quick hitch hydraulic mechanism.

221 F

Years of manufacture: 2021—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 221 F Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 6.1 t

Standard tyres: 365/80 R 20

Bucket width: 2.05 m

Bucket capacity: 1.1 m³

Bucket capacity min.: 1.1 m³

Steering mode: KL

Transport length: 5.598 m

Transport width: 1.936 m

Transport height: 2.813 m

Travel speed: 40 km/h

Max. discharge height: 3.386 m

Turning radius outside: 4.3 m

Lifting force: 55 kN

Model series: F

Engine manuf.: CNH

Engine type: F5H

Engine power: 55 kW

Displacement: 3.4 l

Revolutions at max torque: 2100 rpm

Max. torque: 316 Nm

Emission level: V

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: Yes
Quick hitch hydr.: Yes
Quick hitch mech.: No

Download datasheets (PDF)

Case 221 F FAQ

When was the Case 221 F manufactured?

The Case 221 F was first produced in 2021.

How much does the Case 221 F wheel loader weigh?

The Case 221 F wheel loader weighs 6.1 tons.

What are the transport dimensions of the Case 221 F wheel loader?

The Case 221 F wheel loader has a transport length of 5.598 meters, a transport width of 1.936 meters, and a transport height of 2.813 meters.

What is the travel speed of the Case 221 F wheel loader?

The Case 221 F wheel loader has a travel speed of 40 km/h.

What are the standard tyre specifications of the Case 221 F?

The Case 221 F is equipped with standard tyres sized 365/80 R 20.

What are the maneuverability specifications of the Case 221 F wheel loader?

The Case 221 F wheel loader has an articulated-frame steering mode and an outside turning radius of 4.3 meters.

What is the lifting force rating of the Case 221 F wheel loader, as its available power-related specification?

The Case 221 F wheel loader has a lifting force of 55 kN, which is its available power-related rating.

What is the maximum discharge height of the Case 221 F wheel loader?

The Case 221 F wheel loader has a maximum discharge height of 3.386 meters.

What are the bucket specifications of the Case 221 F wheel loader?

The Case 221 F wheel loader has a bucket capacity of 1.1 cubic meters, a minimum bucket capacity of 1.1 cubic meters, and a bucket width of 2.05 meters.
