HD76 4WD Bull HD76 4WD Specifications & Technical Data (2018—2026)

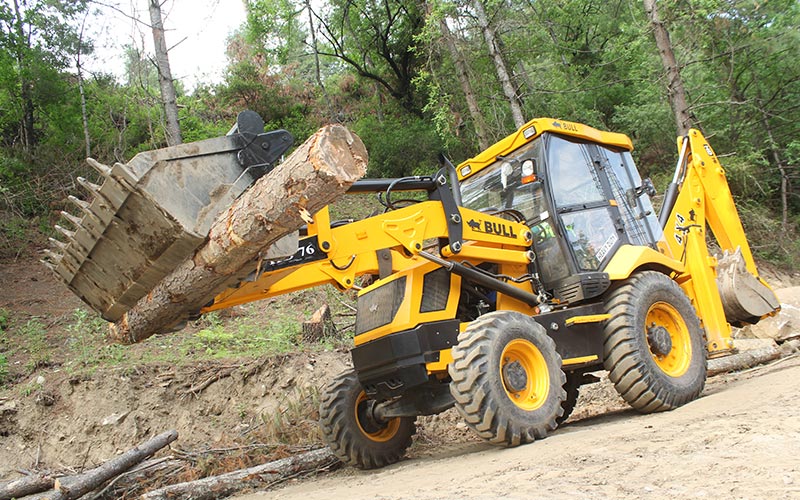

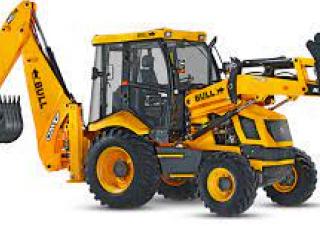

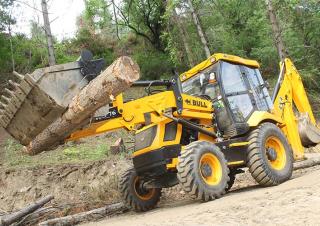

The Bull HD76 4WD is a backhoe loader manufactured by Bull since 2018. It has a weight of 7.85 tons and a transport length of 6.04…

The Bull HD76 4WD is a backhoe loader manufactured by Bull since 2018. It has a weight of 7.85 tons and a transport length of 6.04 meters. The bucket capacity is 1.1 cubic meters, with a tear-out force of 80.25 kilonewtons. It can dredge up to a depth of 4.6 meters and has a bucket width of 2.35 meters. The maximum discharge height is 2.93 meters, and it has a maximum reach horizontal of 5.5 meters. The travel speed of this backhoe loader is 41 kilometers per hour. It has a transport width of 2.35 meters and a transport height of 3.71 meters. The backhoe bucket capacity is 0.27 cubic meters, and it has a tear-out force of 59.53 kilonewtons.

HD76 4WD

Years of manufacture: 2018—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - HD76 4WD Bull

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 7.85 t

Standard tyres: Front: 12.5/80X18 -12PR. Rear: 16.9X28 -12PR

Bucket width: 2.35 m

Bucket capacity: 1.1 m³

Transport length: 6.04 m

Transport width: 2.35 m

Transport height: 3.71 m

Travel speed: 41 km/h

Max. discharge height: 2.93 m

Model series: HD

Engine manuf.: Kirloskar

Engine type: 4R1040TC

Engine power: 51 kW

Displacement: 4.1 l

Revolutions at max torque: 1500 rpm

Max. torque: 300 Nm

No. of cylinders: 4

Emission level: BS III

More technical details, like: bucket capacity min., bucket capacity max., steering mode, turning radius outside, lifting force, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

HD76 4WD Bull Specification for Europe (EN)

Bull HD76 4WD FAQ

When was the Bull HD76 4WD manufactured?

The Bull HD76 4WD was first produced in 2018.

How much does the Bull HD76 4WD wheel loader weigh?

The Bull HD76 4WD wheel loader weighs 7.85 tons.

What are the transport dimensions of the Bull HD76 4WD wheel loader?

The Bull HD76 4WD has a transport length of 6.04 meters, a transport width of 2.35 meters, and a transport height of 3.71 meters.

What is the travel speed of the Bull HD76 4WD wheel loader?

The Bull HD76 4WD has a travel speed of 41 km/h.

What are the undercarriage tyre specifications for the Bull HD76 4WD wheel loader?

The Bull HD76 4WD is equipped with front tyres sized 12.5/80X18 -12PR and rear tyres sized 16.9X28 -12PR.

What is the maximum discharge height of the Bull HD76 4WD wheel loader?

The Bull HD76 4WD wheel loader has a maximum discharge height of 2.93 meters.

What are the specifications of the bucket on the Bull HD76 4WD wheel loader?

The Bull HD76 4WD wheel loader has a bucket with a capacity of 1.1 cubic meters and a width of 2.35 meters.

How much is a Bull HD76 4WD Wheel loader (2018u20132025) worth?

The residual value of the Bull HD76 4WD depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
