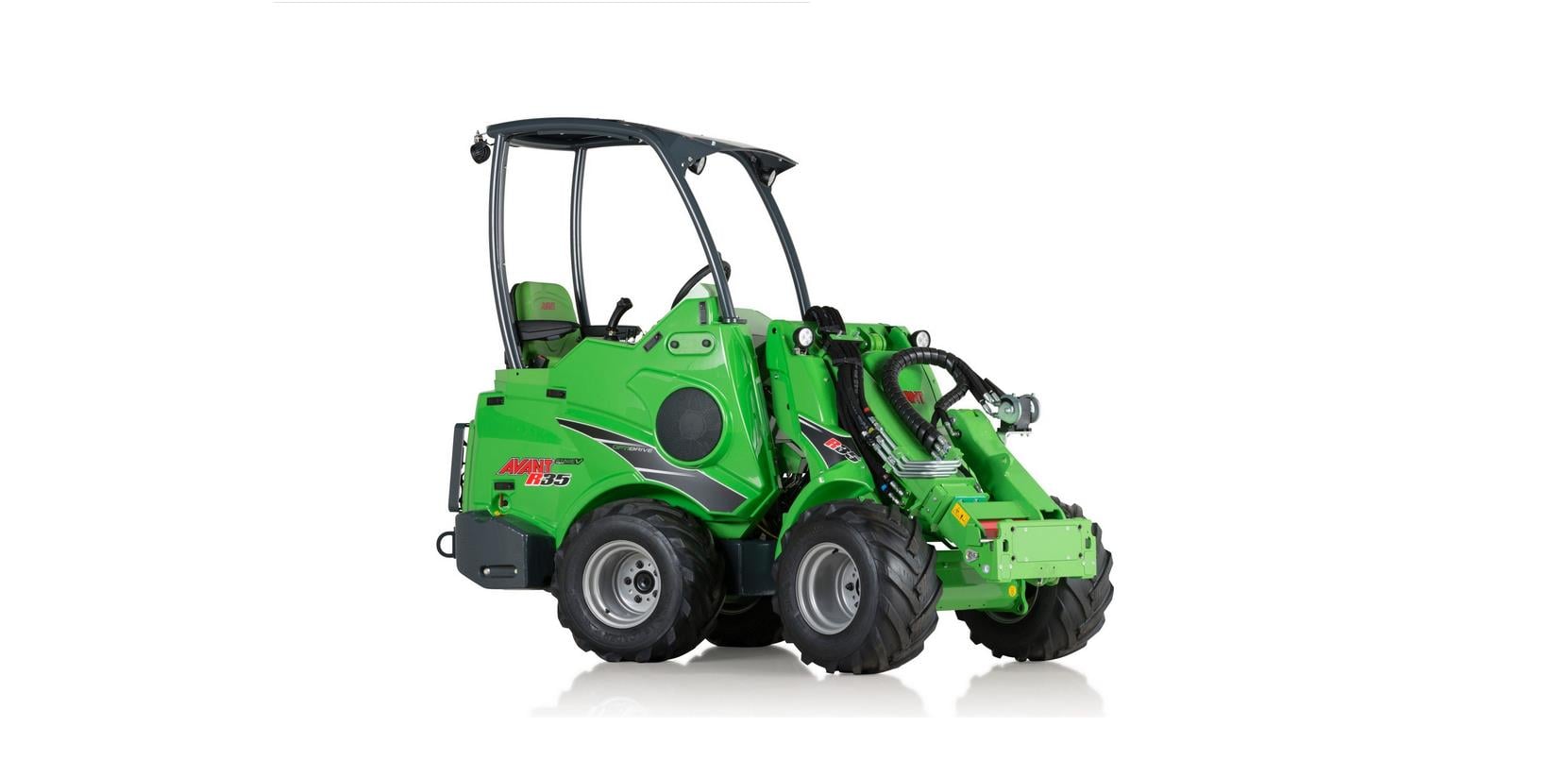

R 35 Avant Tecno R 35 Specifications & Technical Data (2014—2021)

The Avant Tecno R 35 is a compact wheel loader manufactured from 2014 to 2021. It has a weight of 1.48 tons and a transport length…

The Avant Tecno R 35 is a compact wheel loader manufactured from 2014 to 2021. It has a weight of 1.48 tons and a transport length of 2.55 meters. The bucket capacity is 0.3 cubic meters with a width of 1.3 meters. The maximum discharge height is 2.82 meters and it has a travel speed of 14 km/h. The transport width is 0.99 meters and the transport height is 2.11 meters. It has a lifting force of 10.297 kN and a turning radius outside of 2.47 meters. The bucket capacity is a minimum of 0.3 cubic meters. It is equipped with a quick hitch mechanism and telescopic capabilities.

Wheel Loaders Avant Tecno R 35

Technical specs - R 35 Avant Tecno

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.48 t
Standard tyres
26x12-12
Bucket width
1.3 m
Bucket capacity
0.3 m³
Bucket capacity min.
0.3 m³
Steering mode
VL
Transport length
2.55 m
Transport width
0.99 m
Transport height
2.11 m
Travel speed
14 km/h
Max. discharge height
2.82 m
Turning radius outside
2.47 m
Lifting force
10.297 kN
Model series
R
Engine manuf.
Kubota
Engine type
V1505
Engine power
26.5 kW
Displacement
1.498 l
No. of cylinders
4
Emission level
III A

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter
No
Swing loader
No
telescopic
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
Yes

Download datasheets (PDF)

Avant Tecno R 35 FAQ

When was the Avant Tecno R 35 manufactured?

The Avant Tecno R 35 was manufactured from 2014 to 2021.

How much does the Avant Tecno R 35 wheel loader weigh?

The Avant Tecno R 35 wheel loader weighs 1.48 tons.

What are the transport dimensions of the Avant Tecno R 35 wheel loader?

The Avant Tecno R 35 has a transport length of 2.55 meters, a transport width of 0.99 meters, and a transport height of 2.11 meters.

What is the travel speed of the Avant Tecno R 35 wheel loader?

The Avant Tecno R 35 has a travel speed of 14 km/h.

What are the undercarriage specifications of the Avant Tecno R 35 wheel loader?

The Avant Tecno R 35 wheel loader is equipped with standard tyres sized 26x12-12.

What are the maneuverability specifications of the Avant Tecno R 35 wheel loader?

The Avant Tecno R 35 has a front steering mode and an outside turning radius of 2.47 meters.

What is the lifting force of the Avant Tecno R 35?

The Avant Tecno R 35 has a lifting force of 10.297 kN.

What is the maximum discharge height of the Avant Tecno R 35?

The Avant Tecno R 35 has a maximum discharge height of 2.82 meters.

What are the specifications of the primary work tool (bucket) on the Avant Tecno R 35 wheel loader?

The Avant Tecno R 35 is equipped with a bucket that has a capacity of 0.3 cubic meters, a minimum bucket capacity of 0.3 cubic meters, and a bucket width of 1.3 meters.

How much is a Avant Tecno R 35 Wheel loader (2014u20132021) worth?

The residual value of the Avant Tecno R 35 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
