Avant 860i Avant Tecno Avant 860i Specifications & Technical Data (2019—2026)

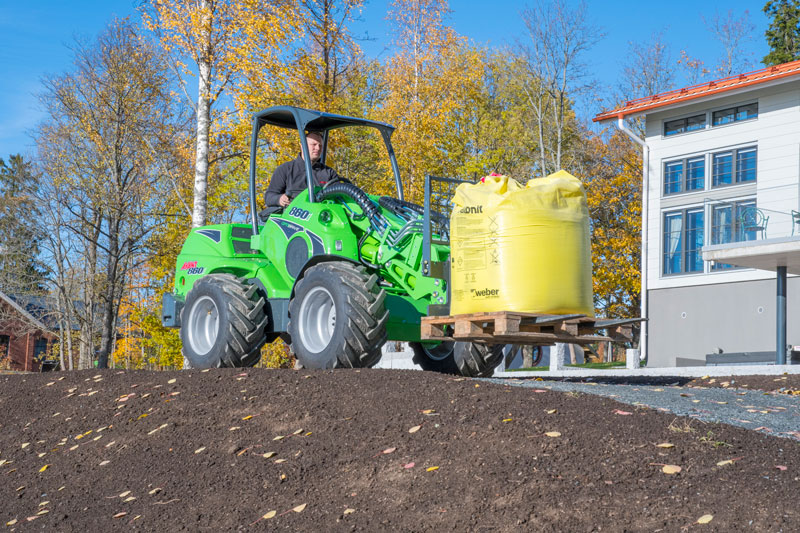

The Avant Tecno Avant 860i is a wheel loader manufactured since 2019. It has a weight of 2.7 tons and a transport length of 3.395 …

The Avant Tecno Avant 860i is a wheel loader manufactured since 2019. It has a weight of 2.7 tons and a transport length of 3.395 meters. The bucket capacity is 0.33 cubic meters, with a bucket width of 1.4 meters. The maximum discharge height is 3.5 meters, and it has a travel speed of 30 km/h. The transport width is 1.49 meters, and the transport height is 2.2 meters. It has a lifting force of 1.9 kN and a turning radius outside of 2.78 meters. Special equipment includes a diesel particulate filter, a quick hitch mechanism, and telescopic capabilities.

Avant 860i

Years of manufacture: 2019—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - Avant 860i Avant Tecno

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 2.7 t

Standard tyres: 380/55-17 As

Bucket width: 1.4 m

Bucket capacity: 0.33 m³

Bucket capacity min.: 0.33 m³

Steering mode: KL

Transport length: 3.395 m

Transport width: 1.49 m

Transport height: 2.2 m

Travel speed: 30 km/h

Max. discharge height: 3.5 m

Turning radius outside: 2.78 m

Lifting force: 1.9 kN

Model series: 800

Engine manuf.: Kohler

Engine type: KDI1903TCR

Engine power: 42 kW

Displacement: 1.861 l

Revolutions at max torque: 2600 rpm

No. of cylinders: 3

Emission level: V

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: Yes
Swing loader: No
telescopic: Yes
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: Yes

Download datasheets (PDF)

Avant Tecno Avant 860i FAQ

When was the Avant Tecno Avant 860i manufactured?

The Avant Tecno Avant 860i was first produced in 2019.

How much does the Avant Tecno Avant 860i weigh?

The Avant Tecno Avant 860i weighs 2.7 tons.

What are the transport dimensions of the Avant Tecno Avant 860i wheel loader?

The Avant Tecno Avant 860i has a transport length of 3.4 meters, a transport width of 1.49 meters, and a transport height of 2.2 meters.

What is the travel speed of the Avant Tecno Avant 860i?

The Avant Tecno Avant 860i has a travel speed of 30 km/h.

What are the undercarriage specifications of the Avant Tecno Avant 860i?

The Avant Tecno Avant 860i is equipped with standard tyres sized 380/55-17 As.

What are the maneuverability specifications of the Avant Tecno Avant 860i wheel loader?

The Avant Tecno Avant 860i has an articulated-frame steering mode and an outside turning radius of 2.78 meters.

What are the power ratings of the Avant Tecno Avant 860i wheel loader?

There are no power rating specifications available for the Avant Tecno Avant 860i wheel loader in the provided data.

What is the material handling capacity of the Avant Tecno Avant 860i in terms of discharge height?

The Avant Tecno Avant 860i has a maximum discharge height of 3.5 meters.

What are the specifications of the bucket on the Avant Tecno Avant 860i wheel loader?

The Avant Tecno Avant 860i has a bucket with a capacity of 0.33 cubic meters, a minimum bucket capacity of 0.33 cubic meters, and a bucket width of 1.4 meters.
