AR 85 Atlas AR 85 Specifications & Technical Data (2009—2012)

Model rating: 8,00 / 10

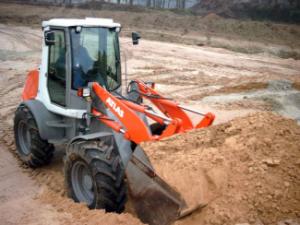

The Atlas AR 85 is a wheel loader manufactured by Atlas from 2009 to 2012. It has a weight of 6.7 tons and a transport length of 5…

The Atlas AR 85 is a wheel loader manufactured by Atlas from 2009 to 2012. It has a weight of 6.7 tons and a transport length of 5.65 meters. The bucket capacity is 1.3 cubic meters with a width of 2.25 meters. The maximum discharge height is 2.7 meters and it has a travel speed of 20 km/h. The transport width is 2.05 meters and the transport height is 2.8 meters. The lifting force is 60 kN and the turning radius outside is 4.234 meters. It is equipped with a quick hitch mechanism.

Visit Atlas live at

AR 85

Years of manufacture: 2009—2012

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
Events
News

Technical specs - AR 85 Atlas

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 6.7 t

Standard tyres: 405/70 R24 EM

Bucket width: 2.25 m

Bucket capacity: 1.3 m³

Bucket capacity min.: 1.3 m³

Steering mode: KL

Transport length: 5.65 m

Transport width: 2.05 m

Transport height: 2.8 m

Travel speed: 20 km/h

Max. discharge height: 2.7 m

Turning radius outside: 4.234 m

Lifting force: 60 kN

Model series: AR

Engine manuf.: Deutz

Engine type: TCD2011 L04w

Engine power: 71 kW

Displacement: 3.62 l

Revolutions at max torque: 2300 rpm

More technical details, like: bucket capacity max., dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: Yes

Download datasheets (PDF)

AR 85 Atlas Specification for Europe (DE)

Atlas AR 85 FAQ

When was the Atlas AR 85 manufactured?

The Atlas AR 85 was manufactured from 2009 to 2012.

How much does the Atlas AR 85 wheel loader weigh?

The Atlas AR 85 wheel loader weighs 6.7 tons.

What are the transport dimensions of the Atlas AR 85 wheel loader?

The Atlas AR 85 has a transport length of 5.65 meters, a transport width of 2.05 meters, and a transport height of 2.8 meters.

What is the travel speed of the Atlas AR 85 wheel loader?

The Atlas AR 85 wheel loader has a travel speed of 20 km/h.

What are the undercarriage specifications of the Atlas AR 85 wheel loader?

The Atlas AR 85 wheel loader is equipped with standard tyres sized 405/70 R24 EM.

What are the maneuverability specifications of the Atlas AR 85 wheel loader?

The Atlas AR 85 wheel loader features articulated-frame steering and has an outside turning radius of 4.234 meters.

What is the lifting force of the Atlas AR 85 wheel loader?

The Atlas AR 85 wheel loader has a lifting force of 60 kN.

What is the maximum discharge height of the Atlas AR 85 wheel loader?

The Atlas AR 85 wheel loader has a maximum discharge height of 2.7 meters.

What are the specifications of the primary work tool bucket on the Atlas AR 85 wheel loader?

The Atlas AR 85 wheel loader has a bucket with a capacity of 1.3 cubic meters, a minimum bucket capacity of 1.3 cubic meters, and a bucket width of 2.25 meters.

How much is a Atlas AR 85 Wheel loader (2009u20132012) worth?

The residual value of the Atlas AR 85 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
