AR 35 Super Atlas AR 35 Super Specifications & Technical Data (2007—2012)

Model rating: 9,00 / 10

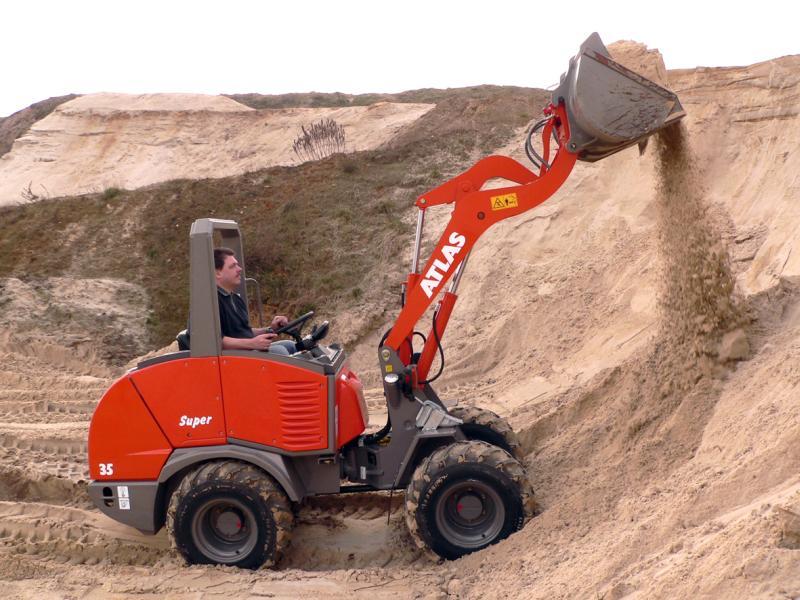

The Atlas AR 35 Super is a wheel loader manufactured by Atlas from 2007 to 2012. It has a weight of 6.28 tons and a transport leng…

The Atlas AR 35 Super is a wheel loader manufactured by Atlas from 2007 to 2012. It has a weight of 6.28 tons and a transport length of 4.24 meters. The bucket capacity is 0.4 cubic meters with a bucket width of 1.55 meters. The maximum discharge height is 2.3 meters and it has a travel speed of 20 km/h. The transport width is 1.35 meters and the transport height is 2.27 meters. It has a lifting force of 21 kN and a turning radius outside of 2.87 meters. The special equipment includes a quick hitch mechanism.

Visit Atlas live at

AR 35 Super

Years of manufacture: 2007—2012

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
Events
News

Technical specs - AR 35 Super Atlas

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 6.28 t

Standard tyres: 10.0/75-15.3 MPT

Bucket width: 1.55 m

Bucket capacity: 0.4 m³

Bucket capacity min.: 0.4 m³

Steering mode: KL

Transport length: 4.24 m

Transport width: 1.35 m

Transport height: 2.27 m

Travel speed: 20 km/h

Max. discharge height: 2.3 m

Turning radius outside: 2.87 m

Lifting force: 21 kN

Model series: AR

Engine manuf.: Perkins

Engine type: 403D-15T

Engine power: 30 kW

Displacement: 1.5 l

Revolutions at max torque: 2800 rpm

More technical details, like: bucket capacity max., dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: Yes

Download datasheets (PDF)

Atlas AR 35 Super FAQ

When was the Atlas AR 35 Super manufactured?

The Atlas AR 35 Super was manufactured from 2007 to 2012.

How much does the Atlas AR 35 Super weigh?

The Atlas AR 35 Super weighs 6.28 tons.

What are the transport dimensions of the Atlas AR 35 Super wheel loader?

The Atlas AR 35 Super has a transport length of 4.24 meters, a transport width of 1.35 meters, and a transport height of 2.27 meters.

What is the travel speed of the Atlas AR 35 Super wheel loader?

The Atlas AR 35 Super has a travel speed of 20 km/h.

What are the standard tyre specifications of the Atlas AR 35 Super wheel loader?

The Atlas AR 35 Super wheel loader is equipped with standard tyres sized 10.0/75-15.3 MPT.

What are the maneuverability specifications of the Atlas AR 35 Super wheel loader?

The Atlas AR 35 Super has an articulated-frame steering system and an outside turning radius of 2.87 meters.

What are the power ratings of the Atlas AR 35 Super wheel loader?

The source data does not provide power ratings for the Atlas AR 35 Super wheel loader.

What is the material handling capacity of the Atlas AR 35 Super in terms of maximum discharge height?

The Atlas AR 35 Super has a maximum discharge height of 2.3 meters.

What are the bucket specifications of the Atlas AR 35 Super wheel loader?

The Atlas AR 35 Super has a bucket capacity of 0.4 cubic meters, a minimum bucket capacity of 0.4 cubic meters, and a bucket width of 1.55 meters.

How much is a Atlas AR 35 Super Wheel loader (2007u20132012) worth?

The residual value of the Atlas AR 35 Super depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
