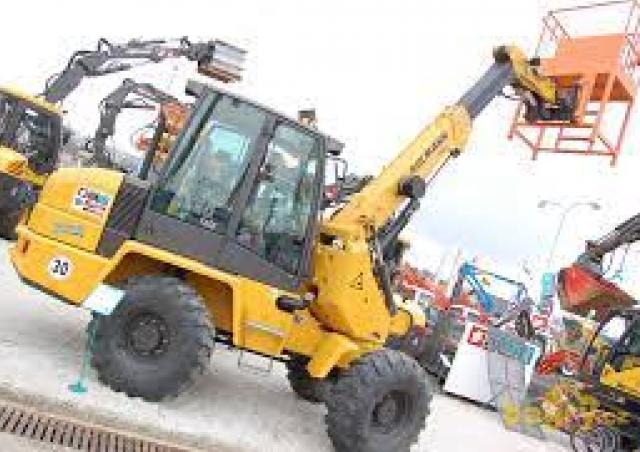

AS 90 tele Ahlmann AS 90 tele Specifications & Technical Data (2009—2012)

The Ahlmann AS 90 tele is a wheel loader manufactured by Ahlmann from 2009 to 2012. It has a weight of 7.23 tons and a transport l…

The Ahlmann AS 90 tele is a wheel loader manufactured by Ahlmann from 2009 to 2012. It has a weight of 7.23 tons and a transport length of 6.52 meters. The bucket capacity is 0.9 cubic meters, with a maximum discharge height of 4.95 meters. It has a travel speed of 20 km/h and a transport width of 2.085 meters. The transport height is 2.77 meters. The lifting force of this machine is 34 kN. It is equipped with special features such as a quick hitch hydr., swing loader, and telescopic capabilities.

AS 90 tele

Years of manufacture: 2009—2012

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - AS 90 tele Ahlmann

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 7.23 t

Standard tyres: 16/70-20

Bucket capacity: 0.9 m³

Bucket capacity min.: 0.9 m³

Steering mode: AL

Transport length: 6.52 m

Transport width: 2.085 m

Transport height: 2.77 m

Travel speed: 20 km/h

Max. discharge height: 4.95 m

Lifting force: 34 kN

Model series: AS

Engine manuf.: Deutz

Engine type: TD2011 L04i

Engine power: 56 kW

Displacement: 3.62 l

Revolutions at max torque: 1700 rpm

More technical details, like: bucket width, bucket capacity max., turning radius outside, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: Yes
telescopic: Yes
Aircondition: No
Quick hitch hydr.: Yes
Quick hitch mech.: No

Download datasheets (PDF)

Ahlmann AS 90 tele FAQ

When was the Ahlmann AS 90 tele manufactured?

The Ahlmann AS 90 tele was manufactured from 2009 to 2012.

How much does the Ahlmann AS 90 tele weigh?

The Ahlmann AS 90 tele weighs 7.23 tons.

What are the transport dimensions of the Ahlmann AS 90 tele wheel loader?

The Ahlmann AS 90 tele has a transport length of 6.52 meters, a transport width of 2.09 meters, and a transport height of 2.77 meters.

What is the travel speed of the Ahlmann AS 90 tele wheel loader?

The Ahlmann AS 90 tele has a travel speed of 20 km/h.

What are the undercarriage specifications of the Ahlmann AS 90 tele?

The Ahlmann AS 90 tele is equipped with standard tyres sized 16/70-20.

What is the steering mode of the Ahlmann AS 90 tele?

The Ahlmann AS 90 tele has all-wheel steering.

What are the power ratings of the Ahlmann AS 90 tele wheel loader?

The power ratings of the Ahlmann AS 90 tele wheel loader are not provided in the available data.

What is the maximum discharge height of the Ahlmann AS 90 tele?

The Ahlmann AS 90 tele has a maximum discharge height of 4.95 meters.

What is the bucket capacity of the Ahlmann AS 90 tele's primary work tool?

The primary work tool of the Ahlmann AS 90 tele has a bucket capacity of 0.9 cubic meters.
