AS 90 Ahlmann AS 90 Specifications & Technical Data (2000—2004)

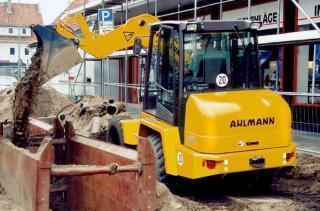

The Ahlmann AS 90 is a wheel loader manufactured by Ahlmann from 2000 to 2004. It has a weight of 6.1 tons and a transport length …

The Ahlmann AS 90 is a wheel loader manufactured by Ahlmann from 2000 to 2004. It has a weight of 6.1 tons and a transport length of 5.69 meters. The bucket capacity is 0.9 cubic meters, with a minimum capacity of 0.9 cubic meters. The travel speed of the AS 90 is 30 km/h. It has a transport width of 2 meters and a transport height of 2.77 meters. The special equipment includes a quick hitch hydr. and a swing loader.

AS 90

Years of manufacture: 2000—2004

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - AS 90 Ahlmann

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 6.1 t

Standard tyres: 365/80 R20

Bucket capacity: 0.9 m³

Bucket capacity min.: 0.9 m³

Steering mode: AL

Transport length: 5.69 m

Transport width: 2 m

Transport height: 2.77 m

Travel speed: 30 km/h

Model series: AS

Engine manuf.: Deutz

Engine type: BF4L1011F

Engine power: 52 kW

Displacement: 2.73 l

Revolutions at max torque: 2500 rpm

More technical details, like: bucket width, bucket capacity max., max. discharge height, turning radius outside, lifting force, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: Yes
telescopic: No
Aircondition: No
Quick hitch hydr.: Yes
Quick hitch mech.: No

Download datasheets (PDF)

AS 90 Ahlmann Specification for North America (EN)

Ahlmann AS 90 FAQ

When was the Ahlmann AS 90 manufactured?

The Ahlmann AS 90 was manufactured from 2000 to 2004.

How much does the Ahlmann AS 90 wheel loader weigh?

The Ahlmann AS 90 wheel loader weighs 6.1 tons.

What are the transport dimensions of the Ahlmann AS 90 wheel loader?

The Ahlmann AS 90 has a transport length of 5.69 meters, a transport width of 2 meters, and a transport height of 2.77 meters.

What is the travel speed of the Ahlmann AS 90 wheel loader?

The Ahlmann AS 90 has a travel speed of 30 km/h.

What are the undercarriage specifications of the Ahlmann AS 90 wheel loader?

The Ahlmann AS 90 wheel loader is equipped with standard tyres sized 365/80 R20.

What is the steering mode of the Ahlmann AS 90?

The Ahlmann AS 90 has an all-wheel steering mode.

What is the bucket capacity of the Ahlmann AS 90 wheel loader?

The Ahlmann AS 90 wheel loader has a bucket capacity of 0.9 cubic meters.

How much is a Ahlmann AS 90 Wheel loader (2000u20132004) worth?

The residual value of the Ahlmann AS 90 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
