AS 150 e Ahlmann AS 150 e Specifications & Technical Data (2008—2012)

Model rating: 7,00 / 10

The Ahlmann AS 150 e is a wheel loader manufactured by Ahlmann from 2008 to 2012. It has a weight of 11 tons and a transport lengt…

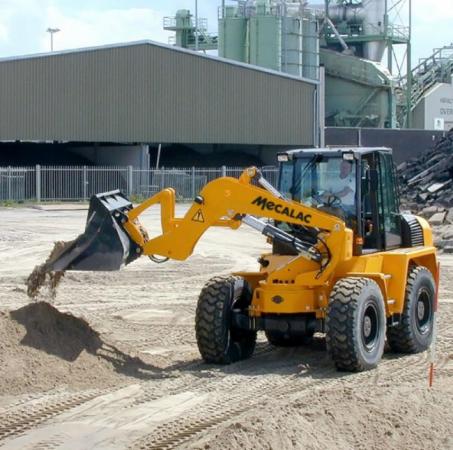

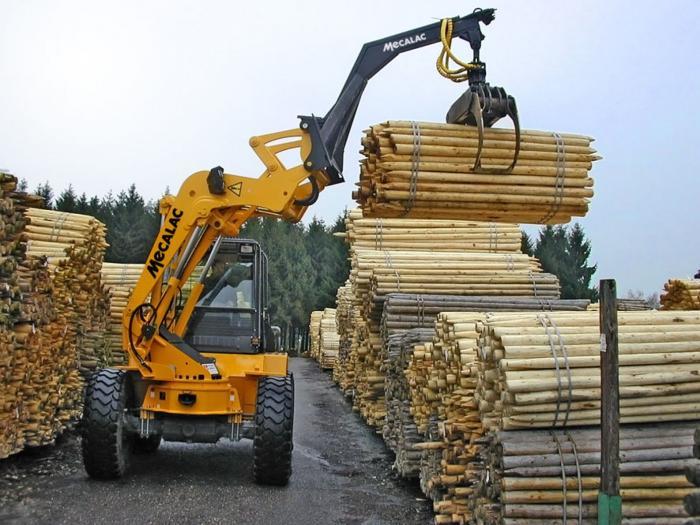

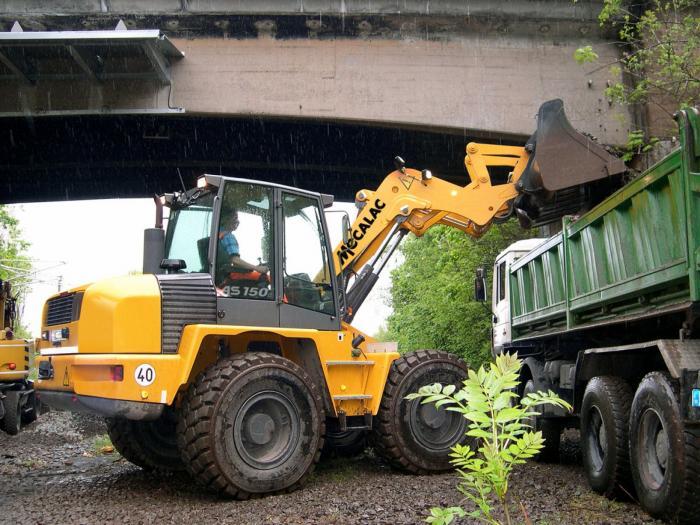

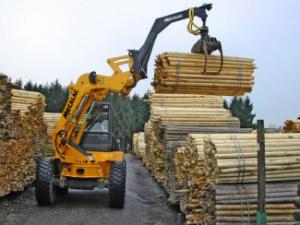

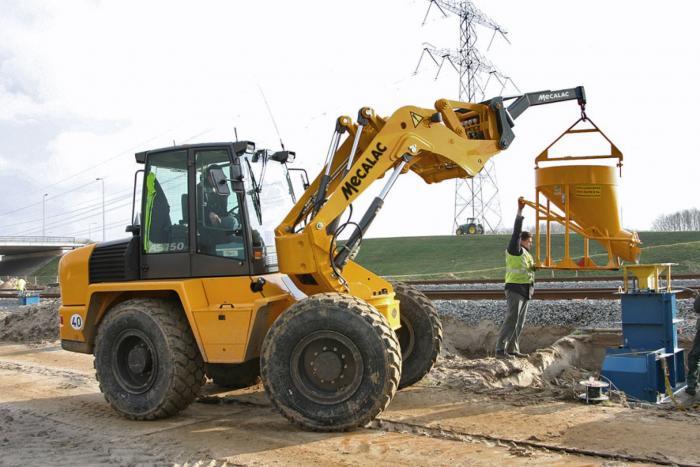

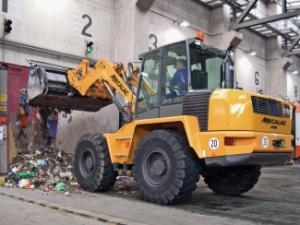

The Ahlmann AS 150 e is a wheel loader manufactured by Ahlmann from 2008 to 2012. It has a weight of 11 tons and a transport length of 6.58 meters. The bucket capacity is 1.5 cubic meters with a width of 2.48 meters. The maximum discharge height is 3.39 meters and it has a travel speed of 20 km/h. The transport width is 2.46 meters and the transport height is 3.1 meters. It has a lifting force of 69 kN and is equipped with special features such as a quick hitch hydr. and a swing loader.

AS 150 e

Years of manufacture: 2008—2012

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - AS 150 e Ahlmann

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 11 t

Standard tyres: 17.5-25

Bucket width: 2.48 m

Bucket capacity: 1.5 m³

Bucket capacity min.: 1.5 m³

Steering mode: AL

Transport length: 6.58 m

Transport width: 2.46 m

Transport height: 3.1 m

Travel speed: 20 km/h

Max. discharge height: 3.39 m

Turning radius outside: 4.35 m

Lifting force: 69 kN

Model series: AS

Engine manuf.: Deutz

Engine type: TCD2012 L04 2V

Engine power: 100 kW

Revolutions at max torque: 1500 rpm

More technical details, like: bucket capacity max., dimension lxwxh, displacement, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: Yes
telescopic: No
Aircondition: No
Quick hitch hydr.: Yes
Quick hitch mech.: No

Download datasheets (PDF)

Ahlmann AS 150 e FAQ

When was the Ahlmann AS 150 e manufactured?

The Ahlmann AS 150 e was manufactured from 2008 to 2012.

How much does the Ahlmann AS 150 e weigh?

The Ahlmann AS 150 e weighs 11 tons.

What are the transport dimensions of the Ahlmann AS 150 e wheel loader?

The Ahlmann AS 150 e has a transport length of 6.58 meters, a transport width of 2.46 meters, and a transport height of 3.1 meters.

What is the travel speed of the Ahlmann AS 150 e wheel loader?

The Ahlmann AS 150 e has a travel speed of 20 km/h.

What are the undercarriage specifications of the Ahlmann AS 150 e wheel loader?

The Ahlmann AS 150 e wheel loader is equipped with standard tyres sized 17.5-25.

What are the maneuverability specifications of the Ahlmann AS 150 e wheel loader?

The Ahlmann AS 150 e wheel loader has an outside turning radius of 4.35 meters and features all-wheel steering.

What is the lifting force of the Ahlmann AS 150 e?

The Ahlmann AS 150 e has a lifting force of 69 kN.

What is the maximum discharge height of the Ahlmann AS 150 e?

The Ahlmann AS 150 e has a maximum discharge height of 3.39 meters.

What are the specifications of the bucket on the Ahlmann AS 150 e wheel loader?

The Ahlmann AS 150 e has a bucket capacity of 1.5 cubic meters, a minimum bucket capacity of 1.5 cubic meters, and a bucket width of 2.48 meters.
