AS 150 Ahlmann AS 150 Specifications & Technical Data (2001—2008)

Model rating: 9,00 / 10

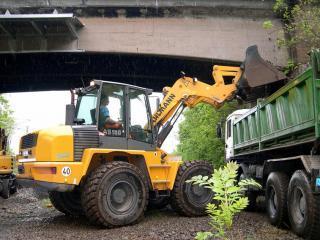

The Ahlmann AS 150 is a wheel loader manufactured by Ahlmann from 2001 to 2008. It has a weight of 11 tons and a bucket capacity o…

The Ahlmann AS 150 is a wheel loader manufactured by Ahlmann from 2001 to 2008. It has a weight of 11 tons and a bucket capacity of 1.5 cubic meters. The maximum discharge height is 3.39 meters and it has a travel speed of 20 km/h. The lifting force of this machine is 80 kN. It is equipped with special features such as a quick hitch hydr. and a swing loader.

AS 150

Years of manufacture: 2001—2008

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - AS 150 Ahlmann

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 11 t

Standard tyres: 17.5-25

Bucket capacity: 1.5 m³

Bucket capacity min.: 1.5 m³

Steering mode: AL

Travel speed: 20 km/h

Max. discharge height: 3.39 m

Lifting force: 80 kN

Model series: AS

Engine manuf.: Deutz

Engine type: BF4M2012EC

Engine power: 98 kW

More technical details, like: bucket width, bucket capacity max., transport length, transport width, transport height, turning radius outside, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: Yes
telescopic: No
Aircondition: No
Quick hitch hydr.: Yes
Quick hitch mech.: No

Download datasheets (PDF)

Ahlmann AS 150 FAQ

When was the Ahlmann AS 150 manufactured?

The Ahlmann AS 150 was manufactured from 2001 to 2008.

How much does the Ahlmann AS 150 wheel loader weigh?

The Ahlmann AS 150 wheel loader weighs 11 tons.

What is the travel speed of the Ahlmann AS 150 wheel loader?

The Ahlmann AS 150 has a travel speed of 20 km/h.

What is the standard tyre size of the Ahlmann AS 150 wheel loader?

The Ahlmann AS 150 wheel loader is equipped with standard tyres sized 17.5-25.

What is the steering mode of the Ahlmann AS 150?

The Ahlmann AS 150 has all-wheel steering.

What is the lifting force of the Ahlmann AS 150 wheel loader?

The Ahlmann AS 150 wheel loader has a lifting force of 80 kN.

What is the maximum discharge height of the Ahlmann AS 150?

The Ahlmann AS 150 has a maximum discharge height of 3.39 meters.

What is the bucket capacity of the Ahlmann AS 150 wheel loader?

The Ahlmann AS 150 wheel loader has a bucket capacity of 1.5 cubic meters.
