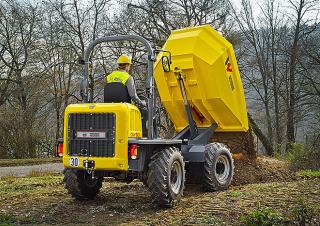

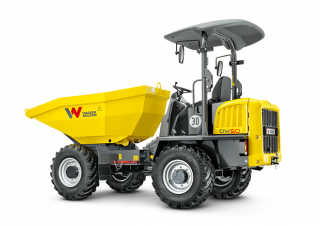

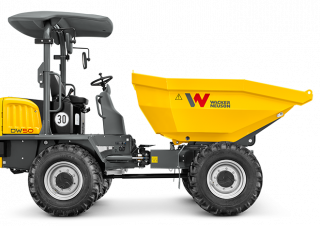

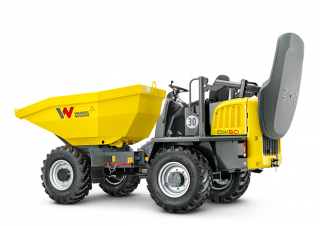

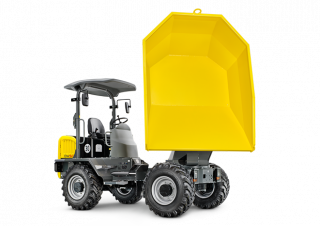

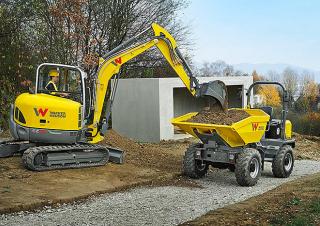

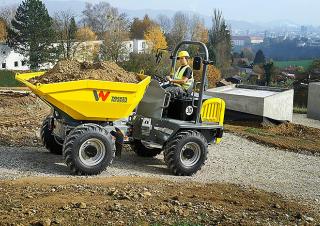

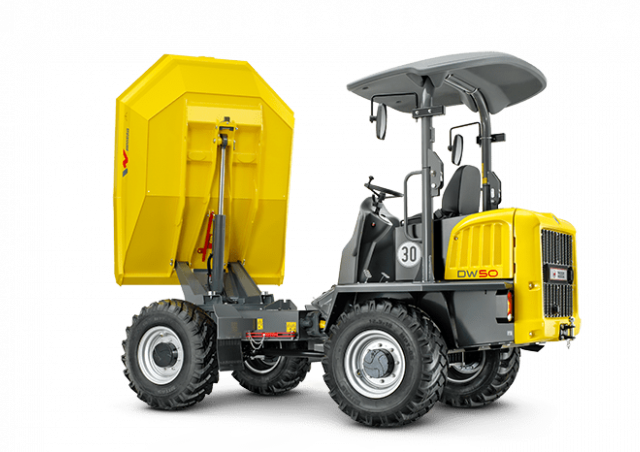

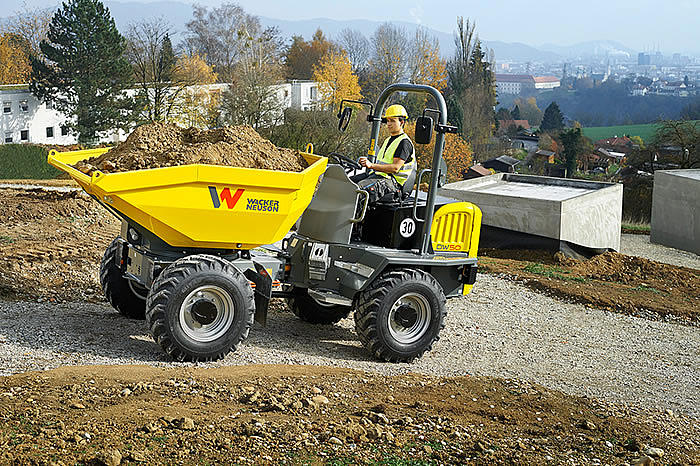

DW50 Wacker Neuson DW50 Specifications & Technical Data (2018—2019)
.png)
.jpg)
.jpg)
.jpg)
.png)
.png)
.png)
.png)
.jpg)
.jpg)
.jpg)
.png)
.png)
.png)
Visit Wacker Neuson live at
Technical specs - DW50 Wacker Neuson
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 3.44 t
- Standard tyres
- 12.5-18-12 PR
- Net load
- 5 t
- Dump capacity
- 1.97 m³
- Dumper type
- V
- Transport length
- 4.49 m
- Transport width
- 1.91 m
- Transport height
- 2.81 m
- Travel speed
- 28 km/h
- Loading height
- 1.79 m
- Turning radius outside
- 4.25 m
- Model series
- DW
- Engine manuf.
- Deutz
- Engine type
- TCD2.9
- Engine power
- 55.4 kW
- Displacement
- 2.9 l
- Revolutions at max torque
- 2300 rpm
- No. of cylinders
- 4
- Emission level
- IV
More technical details, like: dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin and std. trough
Special equipment
- Diesel particulate filter
-
No
- Heated dump body
-
No
- All-wheel drive
-
No
- Track
-
No
- Aircondition
-
No
