MACH2075 Thwaites MACH2075 Specifications & Technical Data (2021—2026)

Weight: 3.2t – Net load: 3t – Dump capacity: 1.76m³ – Dumper type: R – Transport length: 4.081m – Transport width: 1.85m

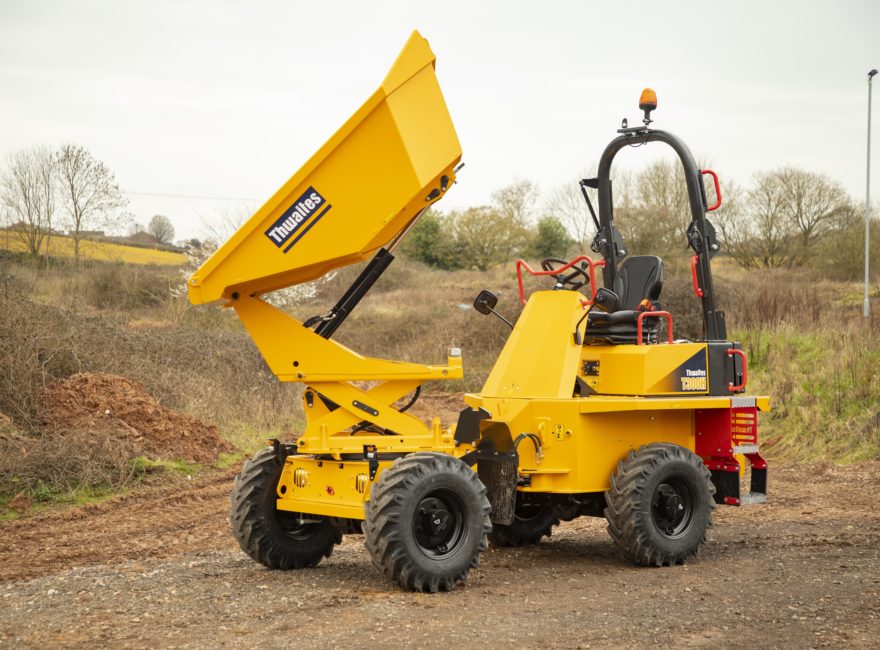

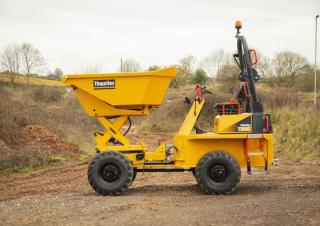

Wheel Dumpers Thwaites MACH2075
Wheel Dumpers Thwaites MACH2075
Wheel Dumpers Thwaites MACH2075
Wheel Dumpers Thwaites MACH2075

Technical specs - MACH2075 Thwaites

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
3.2 t
Net load
3 t
Dump capacity
1.76 m³
Dumper type
R
Transport length
4.081 m
Transport width
1.85 m
Transport height
2.297 m
Travel speed
23.8 km/h
Loading height
1.62 m
Turning radius outside
8 m
Model series
T300H 3 Tonne
Engine manuf.
Yanmar
Engine type
3TNV86CHT
Engine power
33.3 kW
Max. torque
142 Nm
No. of cylinders
3

More technical details, like: standard tyres, dimension lxwxh, displacement, revolutions at max torque, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin and std. trough

Special equipment

Diesel particulate filter
Yes
Heated dump body
No
All-wheel drive
No
Track
No
Aircondition
No

Download datasheets (PDF)

Thwaites MACH2075 FAQ

When was the Thwaites MACH2075 manufactured?

The Thwaites MACH2075 was first produced in 2021.

How much does the Thwaites MACH2075 wheel dumper weigh?

The Thwaites MACH2075 wheel dumper weighs 3.2 tons.

What are the transport dimensions of the Thwaites MACH2075 wheel dumper?

The Thwaites MACH2075 has a transport length of 4.081 meters, a transport width of 1.85 meters, and a transport height of 2.297 meters.

What is the travel speed of the Thwaites MACH2075 wheel dumper?

The Thwaites MACH2075 has a travel speed of 23.8 km/h.

What is the outside turning radius of the Thwaites MACH2075 wheel dumper?

The Thwaites MACH2075 has an outside turning radius of 8 meters.

What is the material handling capacity of the Thwaites MACH2075 wheel dumper?

The Thwaites MACH2075 has a net load capacity of 3 tons and a dump capacity of 1.76 cubic meters.

How much is a Thwaites MACH2075 Wheel dumper (2021u20132025) worth?

The residual value of the Thwaites MACH2075 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
