MACH2074 Thwaites MACH2074 Specifications & Technical Data (2021—2026)

Weight: 3.02t – Net load: 3.5t – Dump capacity: 1.87m³ – Dumper type: R – Transport length: 4.05m – Transport width: 1.85m

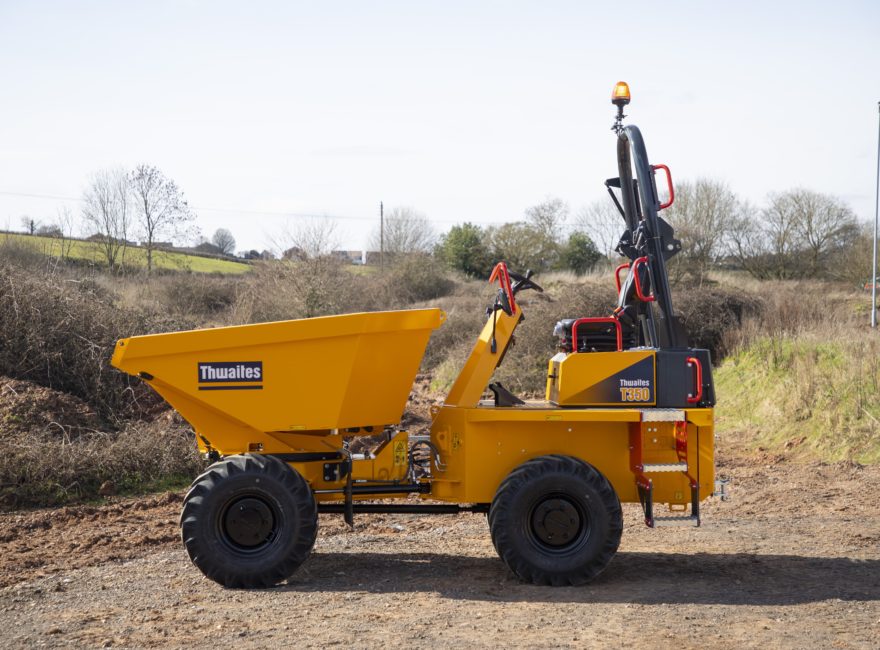

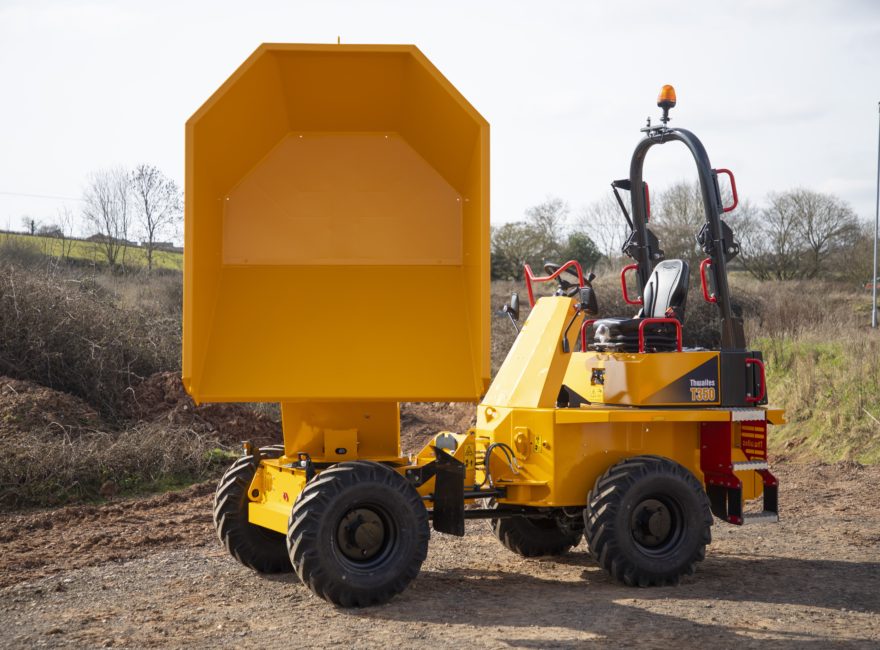

Wheel Dumpers Thwaites MACH2074
Wheel Dumpers Thwaites MACH2074
Wheel Dumpers Thwaites MACH2074
Wheel Dumpers Thwaites MACH2074

Technical specs - MACH2074 Thwaites

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
3.02 t
Net load
3.5 t
Dump capacity
1.87 m³
Dumper type
R
Transport length
4.05 m
Transport width
1.85 m
Transport height
2.297 m
Travel speed
23.8 km/h
Loading height
1.507 m
Turning radius outside
8 m
Model series
T350 3.5 Tonne
Engine manuf.
Yanmar
Engine type
3TNV86CHT
Engine power
33.3 kW
Max. torque
142 Nm
No. of cylinders
3

More technical details, like: standard tyres, dimension lxwxh, displacement, revolutions at max torque, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin and std. trough

Special equipment

Diesel particulate filter
Yes
Heated dump body
No
All-wheel drive
No
Track
No
Aircondition
No

Download datasheets (PDF)

Thwaites MACH2074 FAQ

When was the Thwaites MACH2074 manufactured?

The Thwaites MACH2074 was first produced in 2021.

How much does the Thwaites MACH2074 weigh?

The Thwaites MACH2074 weighs 3.02 tons.

What are the transport dimensions of the Thwaites MACH2074 wheel dumper?

The Thwaites MACH2074 has a transport length of 4.05 meters, a transport width of 1.85 meters, and a transport height of 2.297 meters.

What is the travel speed of the Thwaites MACH2074 wheel dumper?

The Thwaites MACH2074 has a travel speed of 23.8 km/h.

What is the turning radius of the Thwaites MACH2074 wheel dumper?

The Thwaites MACH2074 has an outside turning radius of 8 meters.

What is the material handling capacity of the Thwaites MACH2074 wheel dumper?

The Thwaites MACH2074 wheel dumper has a net load capacity of 3.5 tons and a dump capacity of 1.87 cubic meters.
