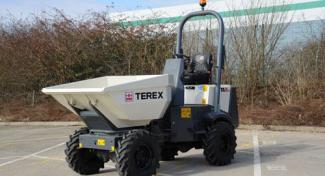

TA2SH Terex TA2SH Specifications & Technical Data (2010—2017)

Weight: 2.08t – Standard tyres: 10.0/75x15.3 10ply – Net load: 2t – Dump capacity: 1.2m³ – Dumper type: S – Transport length: 4m

TA2SH

Years of manufacture: 2010—2017

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - TA2SH Terex

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 2.08 t

Standard tyres: 10.0/75x15.3 10ply

Net load: 2 t

Dump capacity: 1.2 m³

Dumper type: S

Transport length: 4 m

Transport width: 1.49 m

Transport height: 2.92 m

Travel speed: 16 km/h

Loading height: 0.98 m

Turning radius outside: 3.68 m

Model series: TA

Engine manuf.: Kubota

Engine type: D1703M

Engine power: 24.5 kW

Displacement: 1.647 l

Emission level: III A

More technical details, like: dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, model type, driveline, rops, fops, engine manufacturer, engine model, emission rating, engine output, torque, fuel, drive, tyre size - front, tyre size - rear, service type, height over rops, width, overall length, wheelbase, ground clearance, skip lip height - untipped, turning radius - outside, chassis articulation, payload - heaped, payload - struck, payload - water, skip payload, travel speed - maximum, operating weight - unladen are available in the full technical specs.

Basic model with ROPS cabin and std. trough

Special equipment

Diesel particulate filter: No
Heated dump body: No
All-wheel drive: Yes
Track: No
Aircondition: No

Download datasheets (PDF)

Terex TA2SH FAQ

When was the Terex TA2SH manufactured?

The Terex TA2SH was manufactured from 2010 to 2017.

How much does the Terex TA2SH wheel dumper weigh?

The Terex TA2SH wheel dumper weighs 2.08 tons.

What are the transport dimensions of the Terex TA2SH wheel dumper?

The Terex TA2SH has a transport length of 4 meters, a transport width of 1.49 meters, and a transport height of 2.92 meters.

What is the travel speed of the Terex TA2SH wheel dumper?

The Terex TA2SH wheel dumper has a travel speed of 16 km/h.

What are the undercarriage tyre specifications of the Terex TA2SH wheel dumper?

The Terex TA2SH wheel dumper is equipped with standard tyres sized 10.0/75x15.3 10ply.

What is the turning radius of the Terex TA2SH wheel dumper?

The Terex TA2SH wheel dumper has an outside turning radius of 3.68 meters.

What is the material handling capacity of the Terex TA2SH wheel dumper?

The Terex TA2SH wheel dumper has a net load capacity of 2 tons and a dump capacity of 1.2 cubic meters.
