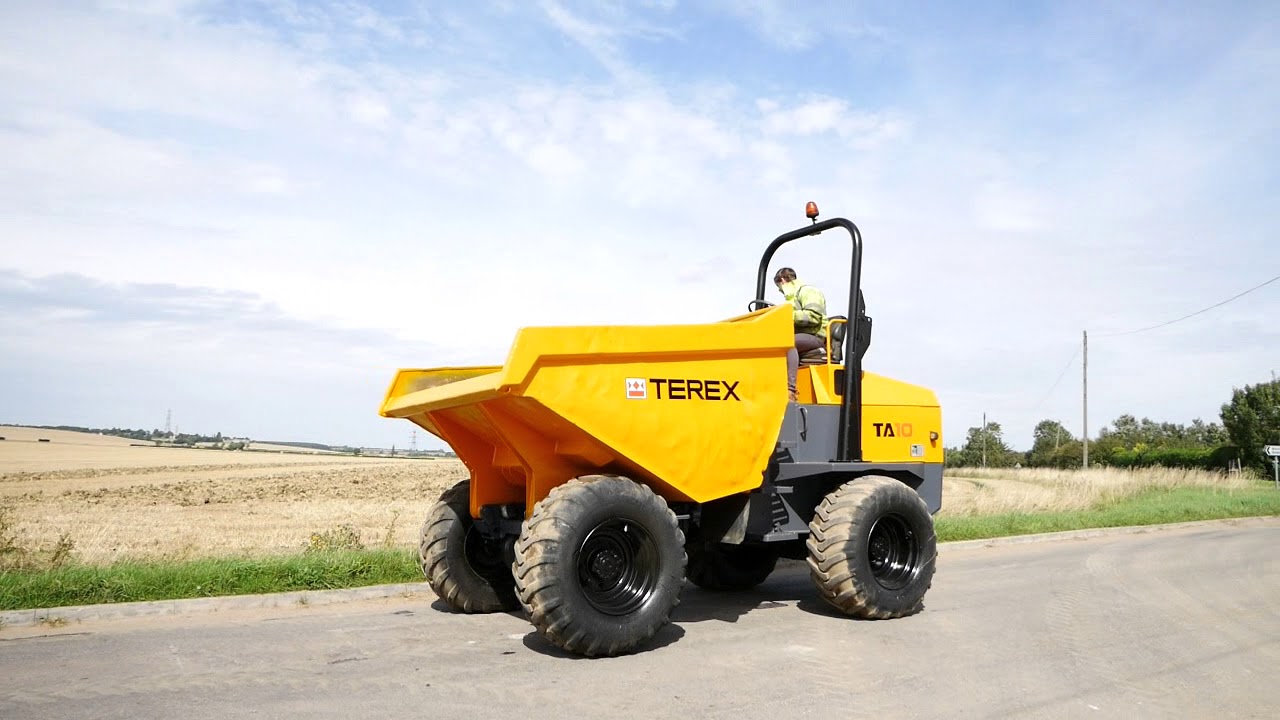

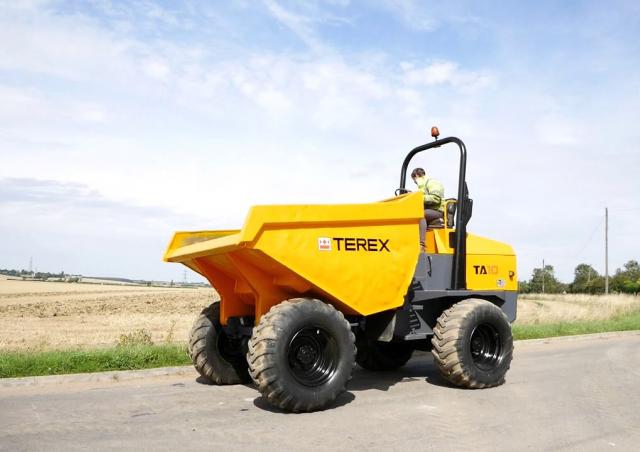

TA 10 Terex TA 10 Specifications & Technical Data (2015—2017)

Weight: 4.81t – Standard tyres: 500/60-22.5 16PR – Net load: 10t – Dump capacity: 5.05m³ – Dumper type: V – Transport length: 5m

TA 10

Years of manufacture: 2015—2017

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - TA 10 Terex

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 4.81 t

Standard tyres: 500/60-22.5 16PR

Net load: 10 t

Dump capacity: 5.05 m³

Dumper type: V

Transport length: 5 m

Transport width: 2.55 m

Transport height: 3.64 m

Travel speed: 29.2 km/h

Loading height: 0.44 m

Turning radius outside: 6.01 m

Model series: TA

Engine manuf.: Deutz

Engine type: TCD3.6 L4

Engine power: 90 kW

Displacement: 3.6 l

Revolutions at max torque: 1600 rpm

Emission level: Tier 4 i

More technical details, like: dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, model type, driveline, rops, engine manufacturer, engine model, emission rating, rated speed, engine output, torque, fuel, drive, tyre size - front, tyre size - rear, service type, height over rops, width, overall length, wheelbase, ground clearance, skip lip height - untipped, turning radius - outside, chassis articulation, payload - heaped, payload - struck, payload - water, skip payload, travel speed - maximum, operating weight - unladen are available in the full technical specs.

Basic model with ROPS cabin and std. trough

Special equipment

Diesel particulate filter: No
Heated dump body: No
All-wheel drive: Yes
Track: No
Aircondition: No

Download datasheets (PDF)

Terex TA 10 FAQ

When was the Terex TA 10 manufactured?

The Terex TA 10 was manufactured from 2015 to 2017.

How much does the Terex TA 10 wheel dumper weigh?

The Terex TA 10 wheel dumper weighs 4.81 tons.

What are the transport dimensions of the Terex TA 10 wheel dumper?

The Terex TA 10 wheel dumper has a transport length of 5 meters, a transport width of 2.55 meters, and a transport height of 3.64 meters.

What is the travel speed of the Terex TA 10 wheel dumper?

The Terex TA 10 wheel dumper has a travel speed of 29.2 km/h.

What are the standard tyres of the Terex TA 10 wheel dumper?

The Terex TA 10 wheel dumper is equipped with standard tyres sized 500/60-22.5 16PR.

What is the outside turning radius of the Terex TA 10 wheel dumper?

The Terex TA 10 wheel dumper has an outside turning radius of 6.01 meters.

What is the material handling capacity of the Terex TA 10 wheel dumper?

The Terex TA 10 wheel dumper has a net load capacity of 10 tons and a dump capacity of 5.05 cubic meters.

How much is a Terex TA 10 Wheel dumper (2015u20132017) worth?

The residual value of the Terex TA 10 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
