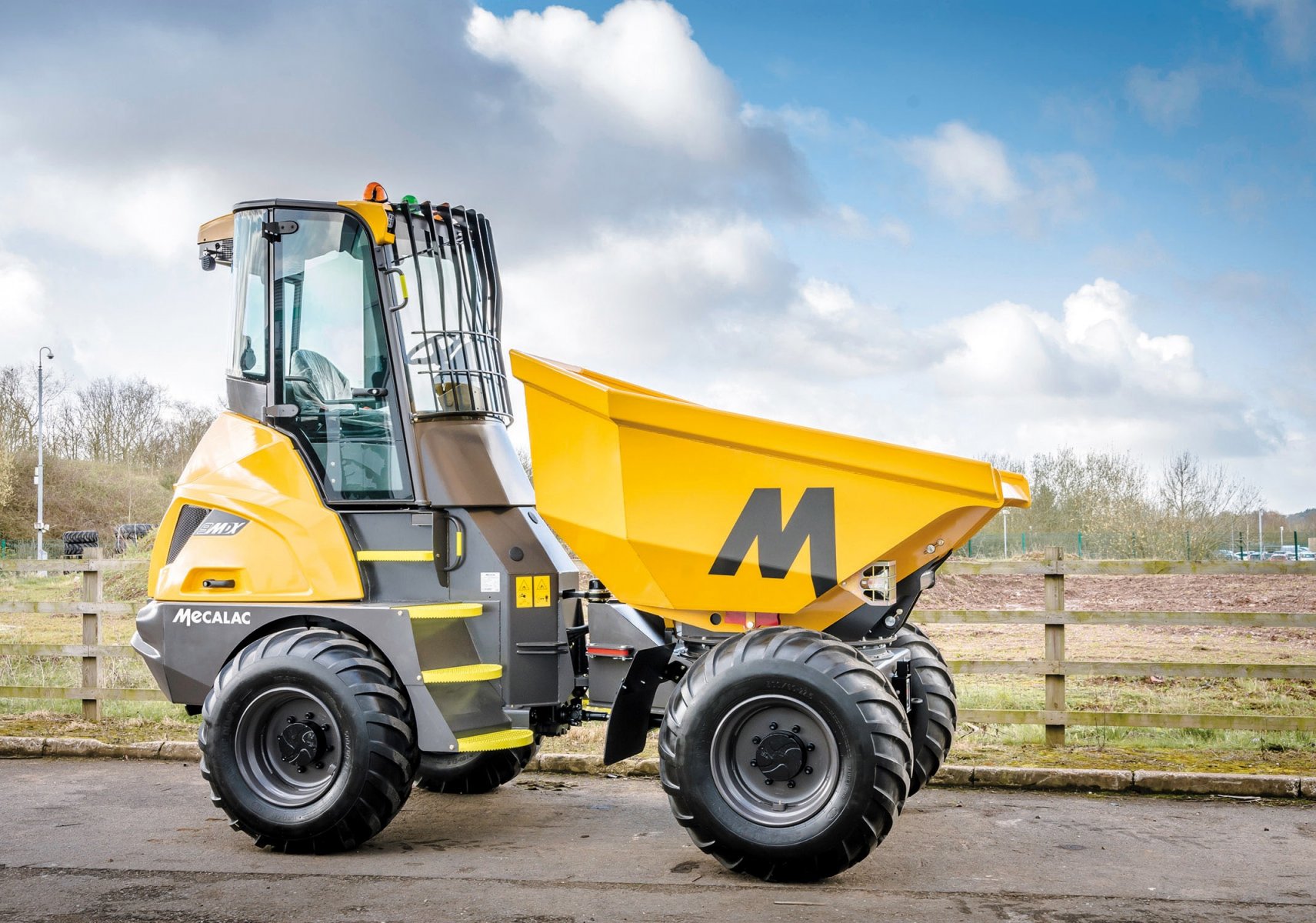

9sMDX Mecalac 9sMDX Specifications & Technical Data (2021—2026)
Technical specs - 9sMDX Mecalac
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 5.835 t
- Standard tyres
- 500/60 R22.5 16PR
- Net load
- 9 t
- Dump capacity
- 3.318 m³
- Dumper type
- V
- Transport length
- 4.734 m
- Transport width
- 2.364 m
- Transport height
- 3.384 m
- Travel speed
- 24 km/h
- Loading height
- 1.827 m
- Model series
- SMDX
- Engine manuf.
- Perkins
- Engine type
- Syncro
- Engine power
- 55 kW
- Displacement
- 3.6 l
- Revolutions at max torque
- 2300 rpm
- Max. torque
- 424/1200 Nm
- No. of cylinders
- 4
- Emission level
- V
More technical details, like: turning radius outside, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin and std. trough
Special equipment
- Diesel particulate filter
-
No
- Heated dump body
-
No
- All-wheel drive
-
No
- Track
-
No
- Aircondition
-
No
Download datasheets (PDF)
Mecalac 9sMDX FAQ
How much does the Mecalac 9sMDX wheel dumper weigh?
What are the transport dimensions of the Mecalac 9sMDX wheel dumper?
What is the travel speed of the Mecalac 9sMDX wheel dumper?
What are the undercarriage tyre specifications of the Mecalac 9sMDX wheel dumper?
What is the material handling capacity of the Mecalac 9sMDX wheel dumper?
How much is a Mecalac 9sMDX Wheel dumper (2021u20132025) worth?
Machine inspection
Ask for inspection of your Mecalac 9sMDX from experts
Mevas is an international operating inspection service for used heavy machinery. Construction machinery inspectors are available in more than 20 countries.
Use this service to minimise the risk when buying used equipment. An inspection by Mevas costs less than repairing a defective hydraulic cylinder.
Provided by:
Buy & Rent
Compare Mecalac 9sMDX with similar Wheel Dumpers

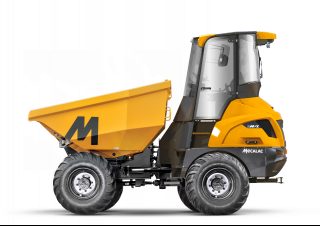

Mecalac 9sMDX
