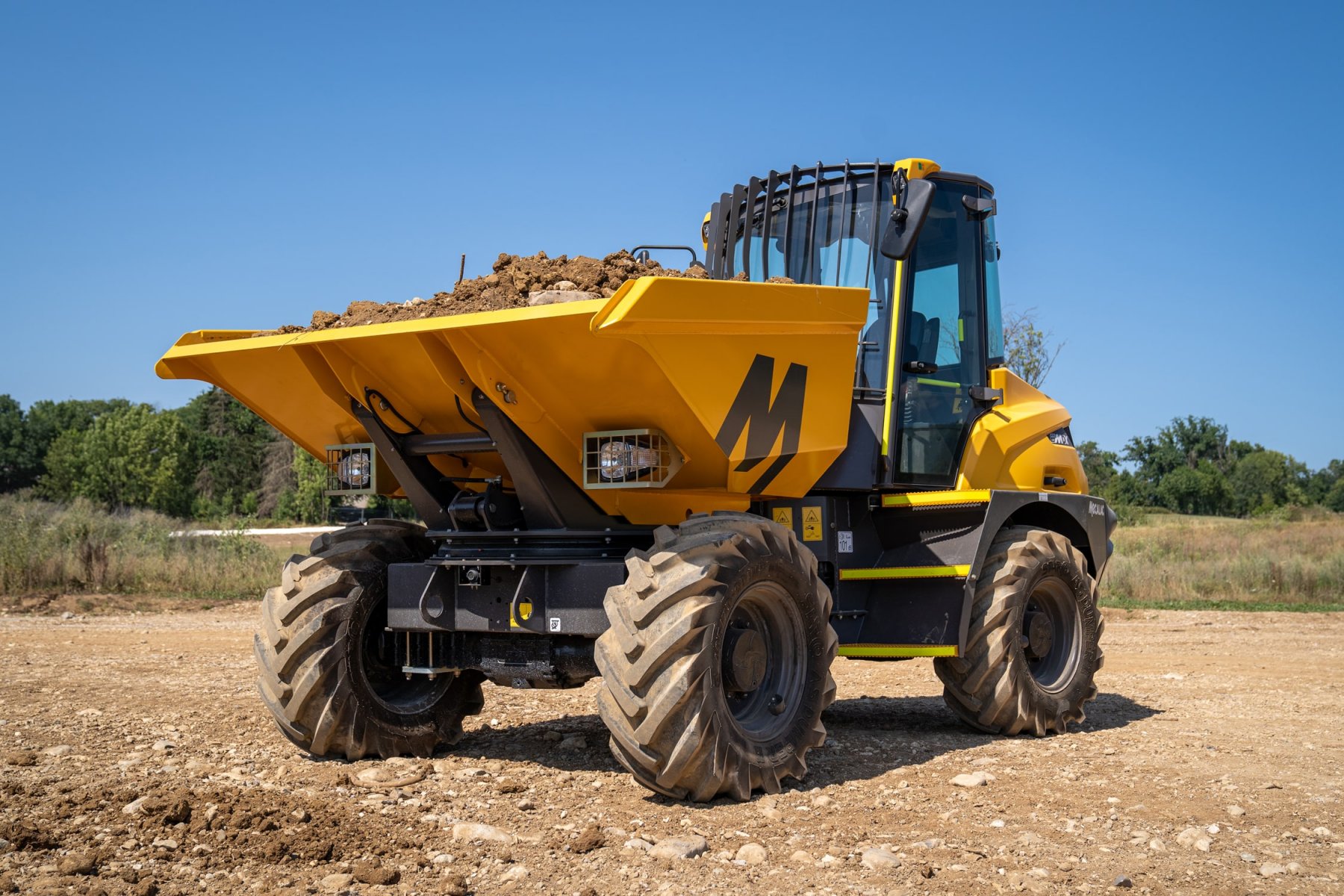

Mecalac 6MDX Specifications & Technical Data (2021-2026)

Technical specs - 6MDX Mecalac

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 4.775 t

Standard tyres: 405/70 R20 14PR

Net load: 6 t

Dump capacity: 2.359 m³

Dumper type: V

Transport length: 4.452 m

Transport width: 2.3 m

Transport height: 2.875 m

Travel speed: 26 km/h

Loading height: 1.546 m

Model series: MDX

Engine manuf.: Perkins

Engine type: Syncro

Engine power: 55 kW

Displacement: 3.6 l

Revolutions at max torque: 2300 rpm

Max. torque: 424/1200 Nm

No. of cylinders: 4

Emission level: V

More technical details, like: turning radius outside, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin and std. trough

Special equipment

Diesel particulate filter: No
Heated dump body: No
All-wheel drive: No
Track: No
Aircondition: No

Download datasheets (PDF)

Mecalac 6MDX FAQ

When was the Mecalac 6MDX manufactured?

The Mecalac 6MDX was first produced in 2021.

How much does the Mecalac 6MDX wheel dumper weigh?

The Mecalac 6MDX wheel dumper weighs 4.78 tons.

What are the transport dimensions of the Mecalac 6MDX wheel dumper?

The Mecalac 6MDX wheel dumper has a transport length of 4.45 meters, a transport width of 2.3 meters, and a transport height of 2.88 meters.

What is the travel speed of the Mecalac 6MDX wheel dumper?

The Mecalac 6MDX wheel dumper has a travel speed of 26 km/h.

What are the standard tyre specifications for the Mecalac 6MDX wheel dumper?

The Mecalac 6MDX wheel dumper is equipped with standard tyres sized 405/70 R20 14PR.

What is the material handling capacity of the Mecalac 6MDX wheel dumper?

The Mecalac 6MDX wheel dumper has a net load capacity of 6 tons and a dump capacity of 2.36 cubic meters.
