6001 ERA 6001 Specifications & Technical Data (2003—2005)

Weight: 4.32t – Standard tyres: 405/70-20 – Net load: 6t – Dump capacity: 2.4m³ – Dumper type: D – Engine manuf.: Perkins

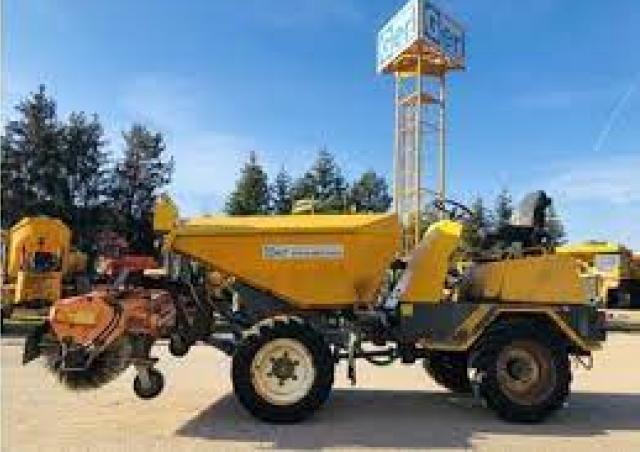

Wheel Dumpers ERA 6001

Technical specs - 6001 ERA

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
4.32 t
Standard tyres
405/70-20
Net load
6 t
Dump capacity
2.4 m³
Dumper type
D
Engine manuf.
Perkins
Engine type
1104C-44
Engine power
61.5 kW
Displacement
4.4 l
Revolutions at max torque
2200 rpm

More technical details, like: transport length, transport width, transport height, travel speed, loading height, turning radius outside, model series, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin and std. trough

Special equipment

Diesel particulate filter
No
Heated dump body
No
All-wheel drive
Yes
Track
No
Aircondition
No

ERA 6001 FAQ

When was the ERA 6001 manufactured?

The ERA 6001 was manufactured from 2003 to 2005.

How much does the ERA 6001 wheel dumper weigh?

The ERA 6001 wheel dumper weighs 4.32 tons.

What is the standard tyre size of the ERA 6001 wheel dumper?

The ERA 6001 wheel dumper has standard tyres sized 405/70-20.

What is the material handling capacity of the ERA 6001 wheel dumper?

The ERA 6001 wheel dumper has a net load capacity of 6 tons and a dump capacity of 2.4 cubic meters.

How much is a ERA 6001 Wheel dumper (2003u20132005) worth?

The residual value of the ERA 6001 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
