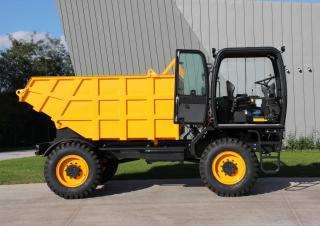

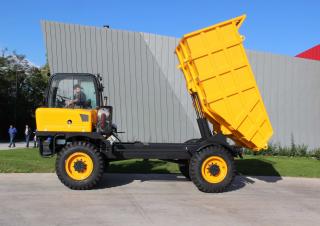

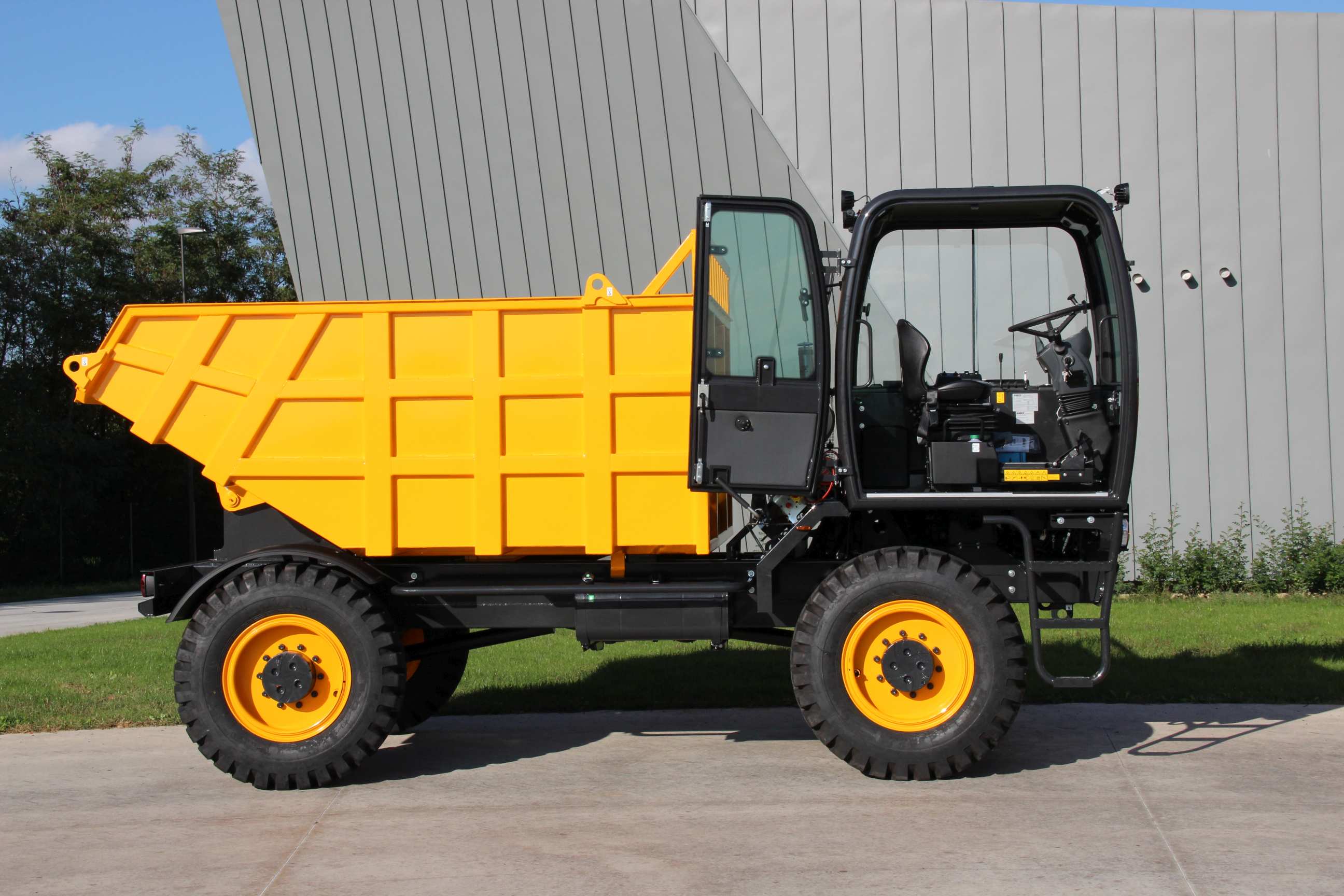

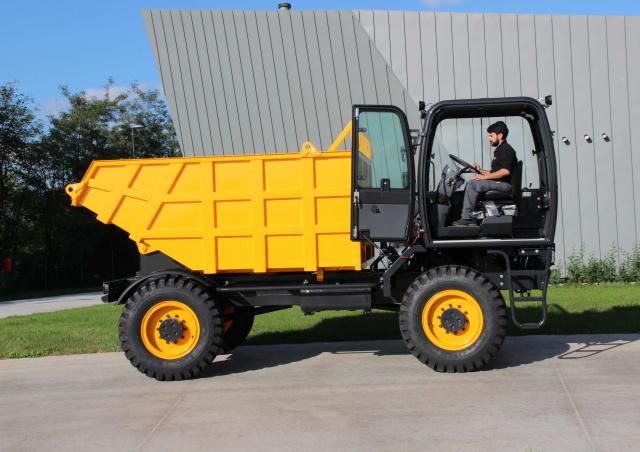

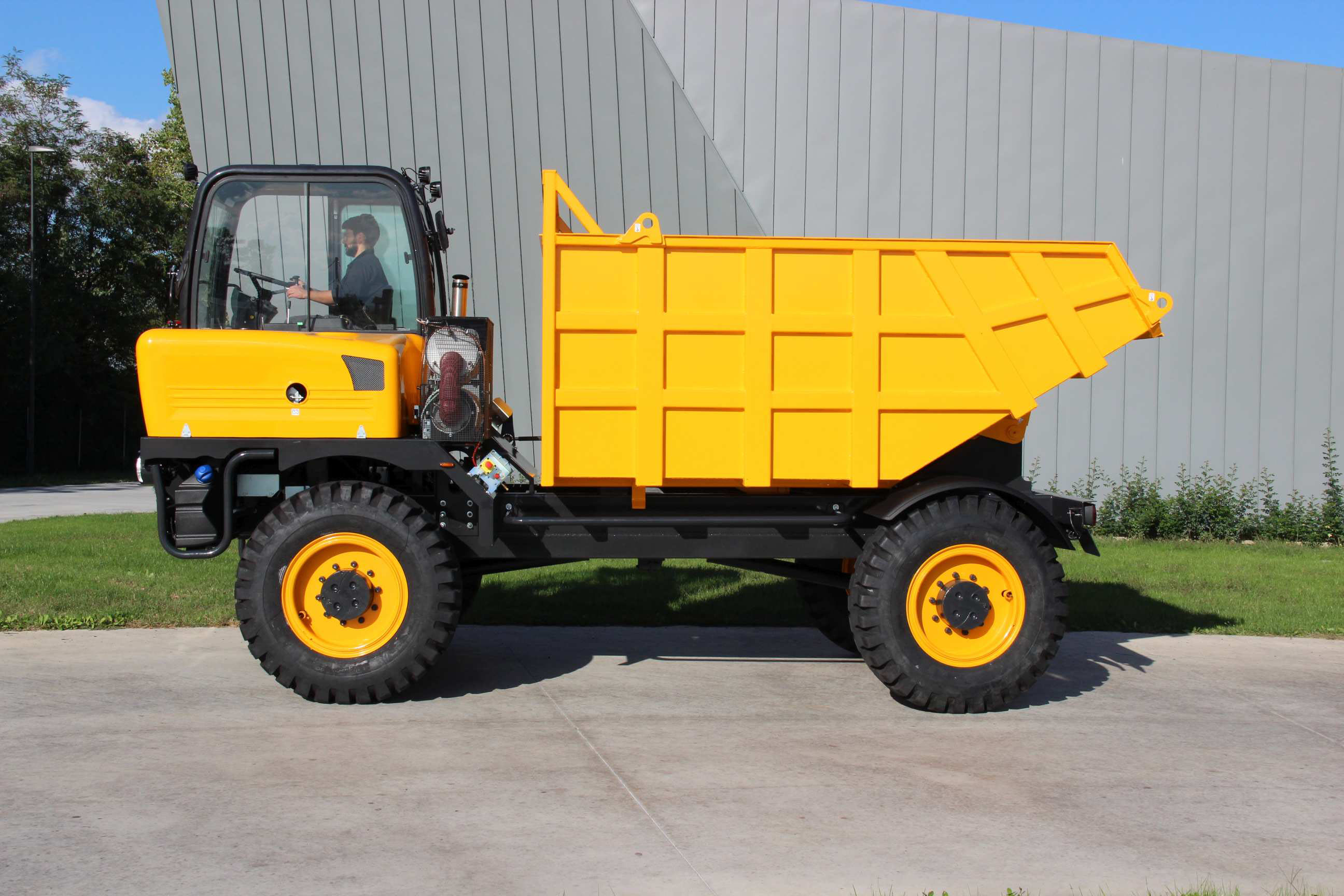

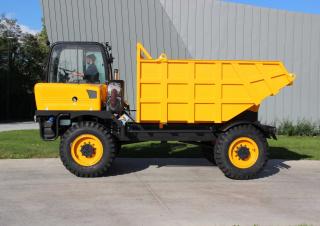

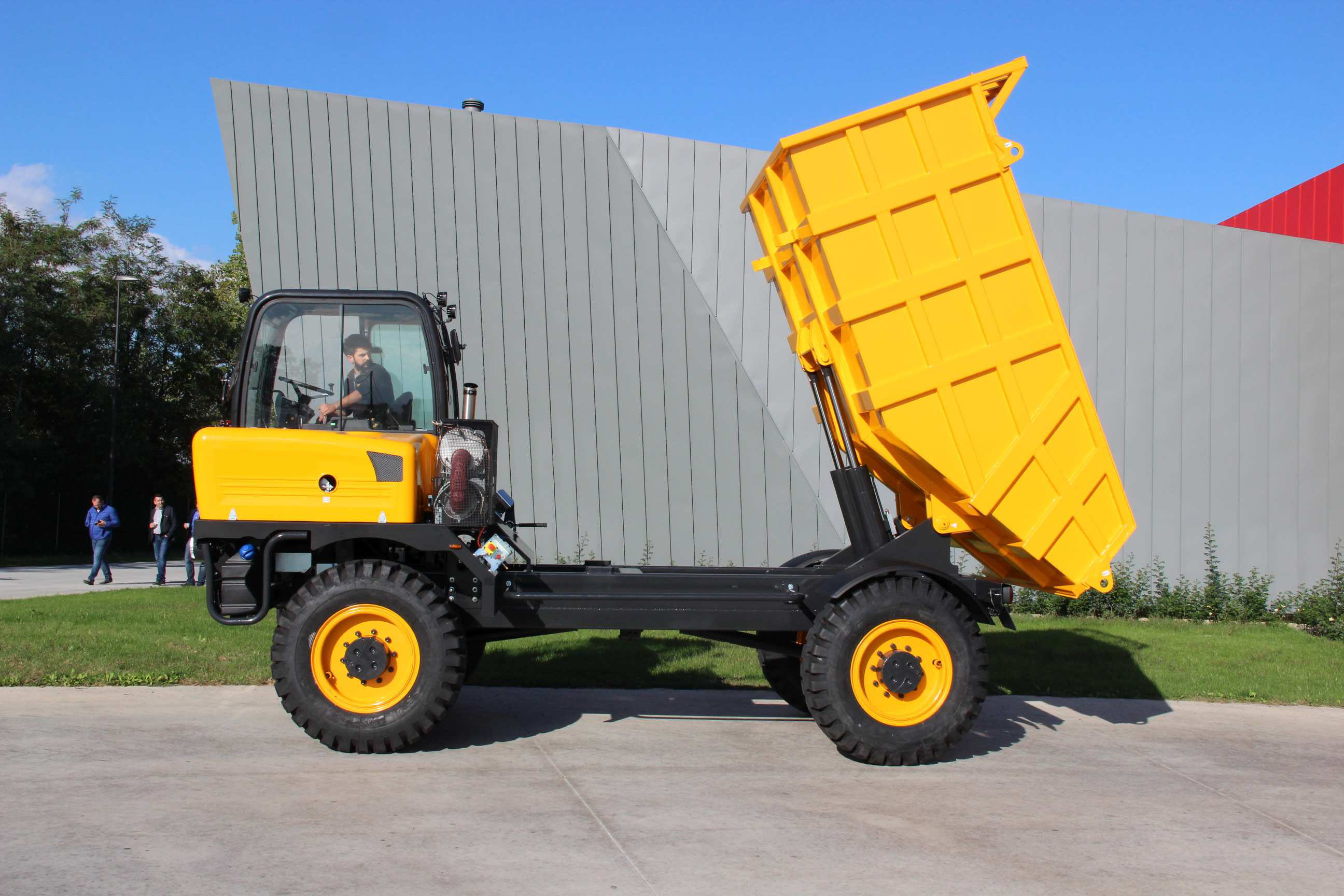

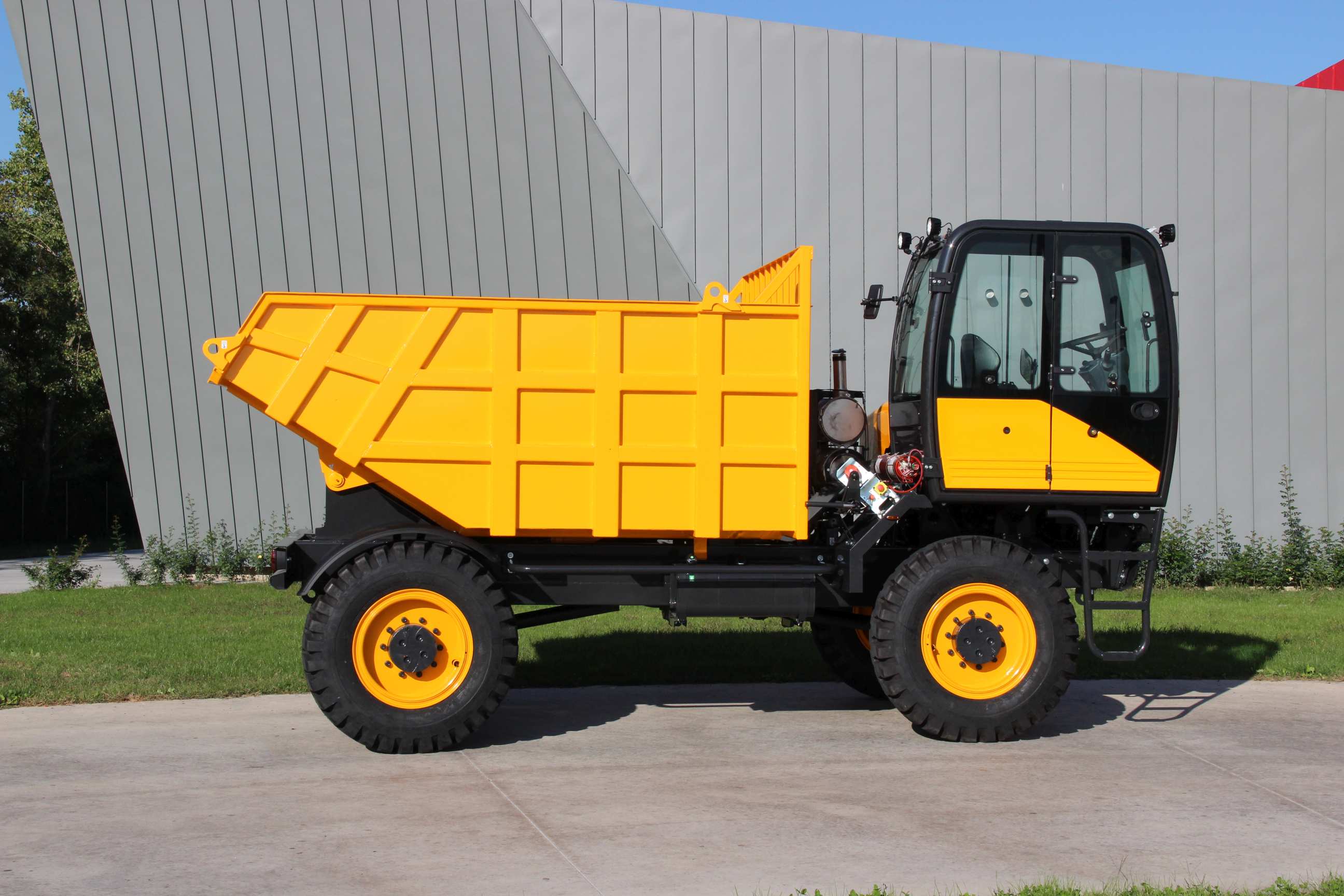

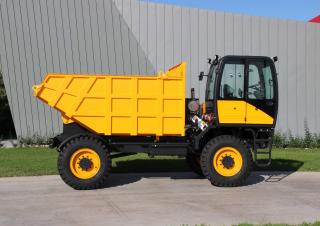

DP 120 Dieci DP 120 Specifications & Technical Data (2022—2026)

Weight: 7.2t – Standard tyres: 600/55-26.5 – Net load: 10.8t – Dump capacity: 7.5m³ – Dumper type: V – Transport length: 5.87m

DP 120

Years of manufacture: 2022—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - DP 120 Dieci

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 7.2 t

Standard tyres: 600/55-26.5

Net load: 10.8 t

Dump capacity: 7.5 m³

Dumper type: V

Transport length: 5.87 m

Transport width: 2.425 m

Transport height: 3.16 m

Travel speed: 27 km/h

Loading height: 2.435 m

Turning radius outside: 6.58 m

Engine manuf.: FPT

Engine type: NEF N45

Engine power: 103 kW

Displacement: 4.485 l

Revolutions at max torque: 2200 rpm

Max. torque: 636 Nm

No. of cylinders: 4

Emission level: IV

More technical details, like: model series, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin and std. trough

Special equipment

Diesel particulate filter: No
Heated dump body: No
All-wheel drive: Yes
Track: No
Aircondition: No

Download datasheets (PDF)

Dieci DP 120 FAQ

When was the Dieci DP 120 manufactured?

The Dieci DP 120 was first produced in 2022.

How much does the Dieci DP 120 wheel dumper weigh?

The Dieci DP 120 wheel dumper weighs 7.2 tons.

What are the transport dimensions of the Dieci DP 120 wheel dumper?

The Dieci DP 120 has a transport length of 5.87 meters, a transport width of 2.43 meters, and a transport height of 3.16 meters.

What is the travel speed of the Dieci DP 120 wheel dumper?

The Dieci DP 120 has a travel speed of 27 km/h.

What are the undercarriage tyre specifications of the Dieci DP 120 wheel dumper?

The Dieci DP 120 wheel dumper is equipped with standard tyres sized 600/55-26.5.

What is the turning radius of the Dieci DP 120 wheel dumper?

The Dieci DP 120 has an outside turning radius of 6.58 meters.

What is the material handling capacity of the Dieci DP 120 wheel dumper?

The Dieci DP 120 wheel dumper has a net load capacity of 10.8 tons and a dump capacity of 7.5 cubic meters.
