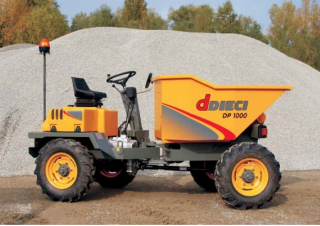

Dieci DP 1000 Frontale Specifications & Technical Data (2006-2015)

Technical specs - DP 1000 Frontale Dieci

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 1.2 t

Standard tyres: 7.5x16

Net load: 2.5 t

Dump capacity: 1 m³

Dumper type: V

Transport length: 3.1 m

Transport width: 1.68 m

Transport height: 2.1 m

Travel speed: 23 km/h

Loading height: 1.45 m

Engine manuf.: Lombardini

Engine type: 12 LD 477-2 B 1

Engine power: 15 kW

Displacement: 0.954 l

More technical details, like: turning radius outside, model series, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level, model type, driveline, rops, fops...

More technical details, like: turning radius outside, model series, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level, model type, driveline, rops, fops, engine manufacturer, emission rating, rated speed, engine output, fuel, drive, tyre size - front, tyre size - rear, service type, height over rops, width, overall length, wheelbase, width - front tyres, width - rear tyres, skip lip height - untipped, height over skip - untipped, turning radius - inside, turning radius - outside, chassis articulation, payload - heaped, payload - struck, skip payload, travel speed - maximum, operating weight - unladen are available in the full technical specs.

Basic model with ROPS cabin and std. trough

Special equipment

Diesel particulate filter: No
Heated dump body: No
All-wheel drive: Yes
Track: No
Aircondition: No

Download datasheets (PDF)

DP 1000 Frontale Dieci Specification for Europe (DE, EN, ES, FR, IT, RU)

Dieci DP 1000 Frontale FAQ

When was the Dieci DP 1000 Frontale manufactured?

The Dieci DP 1000 Frontale was manufactured from 2006 to 2015.

How much does the Dieci DP 1000 Frontale weigh?

The Dieci DP 1000 Frontale weighs 1.2 tons.

What are the transport dimensions of the Dieci DP 1000 Frontale wheel dumper?

The Dieci DP 1000 Frontale has a transport length of 3.1 meters, a transport width of 1.68 meters, and a transport height of 2.1 meters.

What is the travel speed of the Dieci DP 1000 Frontale wheel dumper?

The Dieci DP 1000 Frontale has a travel speed of 23 km/h.

What are the undercarriage specifications of the Dieci DP 1000 Frontale wheel dumper?

The Dieci DP 1000 Frontale wheel dumper is equipped with standard tyres sized 7.5x16.

What is the material handling capacity of the Dieci DP 1000 Frontale wheel dumper?

The Dieci DP 1000 Frontale wheel dumper has a net load capacity of 2.5 tons and a dump capacity of 1 cubic meter.
