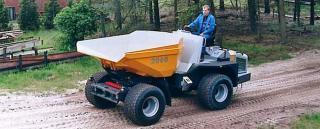

Bergmann 2060 R Specifications & Technical Data (2005-2015)

Technical specs - 2060 R Bergmann

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 3.86 t

Standard tyres: 405/70 R20

Net load: 6 t

Dump capacity: 3.5 m³

Dumper type: R

Transport length: 5 m

Transport width: 2.03 m

Transport height: 2.9 m

Travel speed: 25 km/h

Loading height: 1.6 m

Model series: 2000

Engine manuf.: Kubota

Engine type: k.A.

Engine power: 63 kW

Revolutions at max torque: 2600 rpm

No. of cylinders: 4

More technical details, like: turning radius outside, dimension lxwxh, displacement, max. torque, cylinder bore x stroke, emission level, model type, driveline, rops, fops, telematics available, engine manufacturer...

More technical details, like: turning radius outside, dimension lxwxh, displacement, max. torque, cylinder bore x stroke, emission level, model type, driveline, rops, fops, telematics available, engine manufacturer, emission rating, rated speed, engine output, fuel, drive, tyre size - front, tyre size - rear, service type, height over rops, width, overall length, wheelbase, ground clearance, width - front tyres, width - rear tyres, width - skip, skip lip height - untipped, height over skip - untipped, payload - heaped, payload - struck, skip payload, travel speed - maximum, operating weight - unladen are available in the full technical specs.

Basic model with ROPS cabin and std. trough

Special equipment

Diesel particulate filter: No
Heated dump body: No
All-wheel drive: Yes
Track: No
Aircondition: No

Download datasheets (PDF)

2060 R Bergmann Specification for Europe (DE)

Bergmann 2060 R FAQ

When was the Bergmann 2060 R manufactured?

The Bergmann 2060 R was manufactured from 2005 to 2015.

How much does the Bergmann 2060 R weigh?

The Bergmann 2060 R weighs 3.86 tons.

What are the transport dimensions of the Bergmann 2060 R wheel dumper?

The Bergmann 2060 R has a transport length of 5 meters, a transport width of 2.03 meters, and a transport height of 2.9 meters.

What is the travel speed of the Bergmann 2060 R wheel dumper?

The Bergmann 2060 R has a travel speed of 25 km/h.

What are the undercarriage specifications of the Bergmann 2060 R wheel dumper?

The Bergmann 2060 R wheel dumper is equipped with standard tyres sized 405/70 R20.

What is the material handling capacity of the Bergmann 2060 R wheel dumper?

The Bergmann 2060 R wheel dumper has a net load capacity of 6 tons and a dump capacity of 3.5 cubic meters.

How much is a Bergmann 2060 R Wheel dumper (2005u20132015) worth?

The residual value of the Bergmann 2060 R depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
