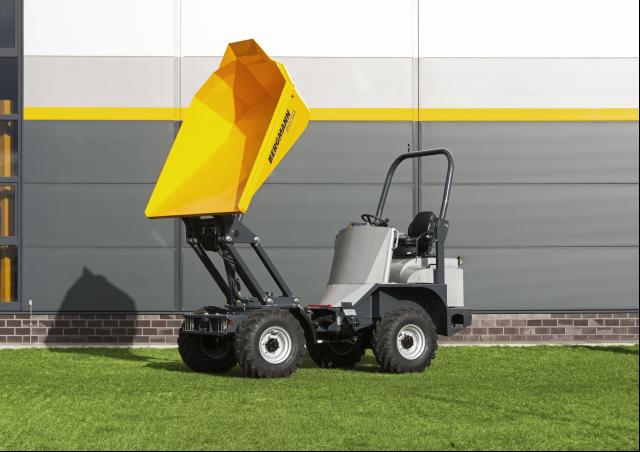

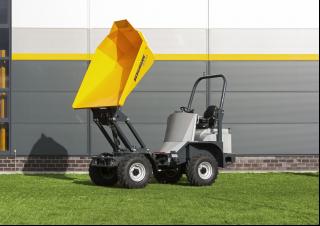

Bergmann 2030HS Specifications & Technical Data (2016-2019)

Technical specs - 2030HS Bergmann

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 2.9 t

Standard tyres: 11.5/80-15.3 AS

Net load: 3 t

Dump capacity: 2 m³

Dumper type: D

Transport length: 4.158 m

Transport width: 1.78 m

Transport height: 2.877 m

Travel speed: 25 km/h

Loading height: 1.666 m

Model series: 2000

Engine manuf.: Kubota

Engine type: V2203M

Engine power: 35.9 kW

Revolutions at max torque: 2800 rpm

More technical details, like: turning radius outside, dimension lxwxh, displacement, max. torque, no. of cylinders, cylinder bore x stroke, emission level, model type, driveline, rops, telematics available, engine manufacturer...

More technical details, like: turning radius outside, dimension lxwxh, displacement, max. torque, no. of cylinders, cylinder bore x stroke, emission level, model type, driveline, rops, telematics available, engine manufacturer, rated speed, engine output, fuel, height over rops, width, overall length, ground clearance, payload - heaped, payload - water, skip payload, operating weight - unladen are available in the full technical specs.

Basic model with ROPS cabin and std. trough

Special equipment

Diesel particulate filter: No
Heated dump body: No
All-wheel drive: Yes
Track: No
Aircondition: No

Download datasheets (PDF)

Bergmann 2030HS FAQ

When was the Bergmann 2030HS manufactured?

The Bergmann 2030HS was manufactured from 2016 to 2019.

What is the weight of the Bergmann 2030HS wheel dumper?

The Bergmann 2030HS wheel dumper weighs 2.9 tons.

What are the transport dimensions of the Bergmann 2030HS wheel dumper?

The Bergmann 2030HS has a transport length of 4.16 meters, a transport width of 1.78 meters, and a transport height of 2.88 meters.

What is the travel speed of the Bergmann 2030HS wheel dumper?

The Bergmann 2030HS has a travel speed of 25 km/h.

What are the standard tyres used on the Bergmann 2030HS wheel dumper's undercarriage?

The Bergmann 2030HS wheel dumper is equipped with standard tyres sized 11.5/80-15.3 AS on its undercarriage.

What is the material handling capacity of the Bergmann 2030HS wheel dumper?

The Bergmann 2030HS has a net load capacity of 3 tons and a dump capacity of 2 cubic meters.
