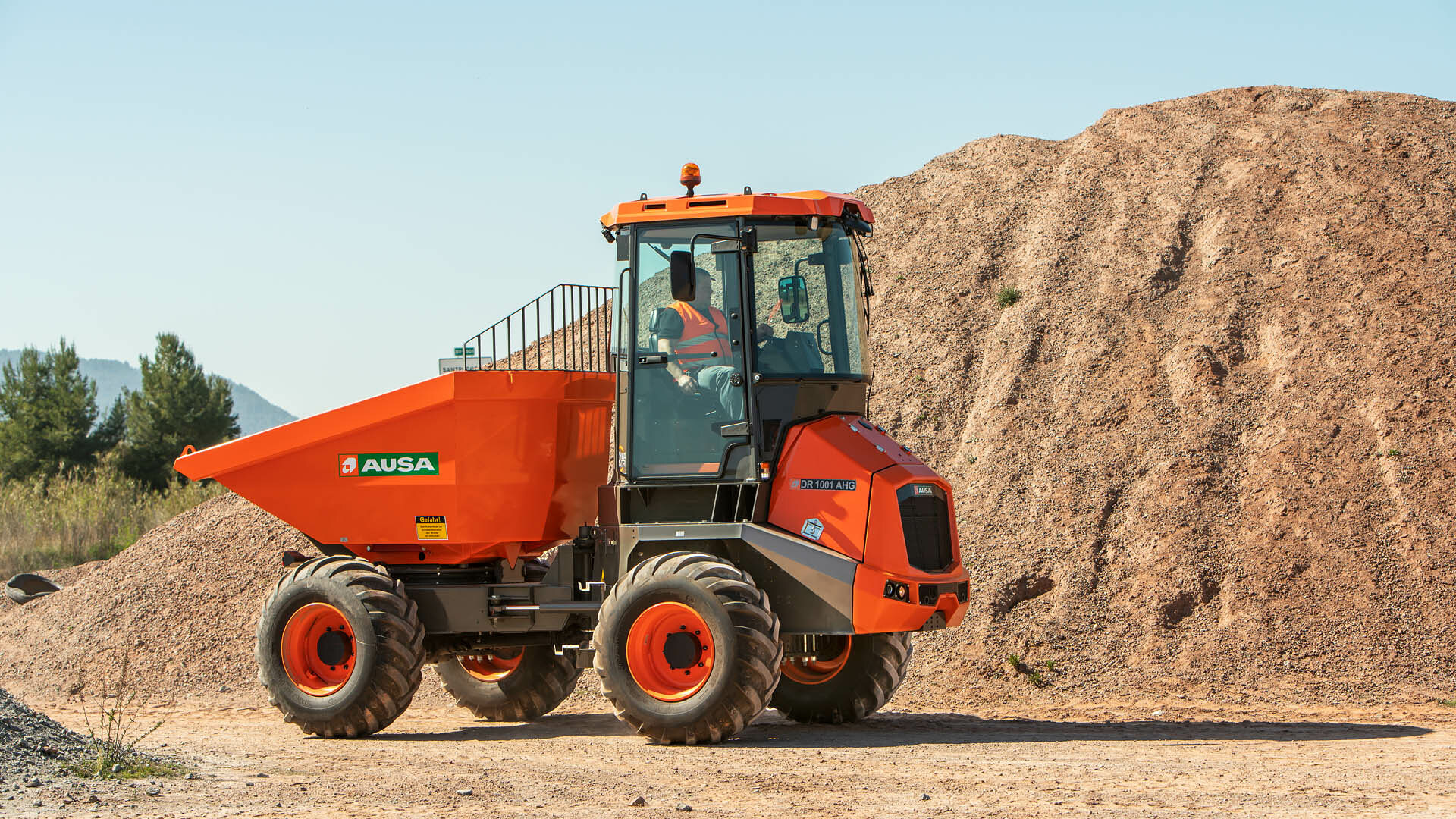

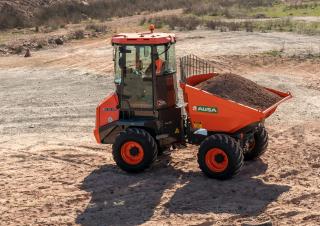

DR 1001 AHG Ausa DR 1001 AHG Specifications & Technical Data (2020—2026)

Weight: 5.05t – Standard tyres: 500/60-22.5 – Net load: 10t – Dump capacity: 3.9m³ – Dumper type: D/R – Transport length: 5.02m

DR 1001 AHG

Years of manufacture: 2020—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - DR 1001 AHG Ausa

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 5.05 t

Standard tyres: 500/60-22.5

Net load: 10 t

Dump capacity: 3.9 m³

Dumper type: D/R

Transport length: 5.02 m

Transport width: 2.41 m

Transport height: 3.64 m

Travel speed: 22 km/h

Loading height: 1.82 m

Turning radius outside: 6.287 m

Model series: AHG

Engine manuf.: Deutz

Engine type: TCD3.6 L4 HT

Engine power: 55.4 kW

Displacement: 3.6 l

Revolutions at max torque: 2200 rpm

Max. torque: 405/1300 Nm

No. of cylinders: 4

Emission level: V

More technical details, like: dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin and std. trough

Special equipment

Diesel particulate filter: Yes
Heated dump body: Yes
All-wheel drive: Yes
Track: No
Aircondition: Yes

Download datasheets (PDF)

Ausa DR 1001 AHG FAQ

When was the Ausa DR 1001 AHG manufactured?

The Ausa DR 1001 AHG was first produced in 2020.

How much does the Ausa DR 1001 AHG weigh?

The Ausa DR 1001 AHG weighs 5.05 tons.

What are the transport dimensions of the Ausa DR 1001 AHG wheel dumper?

The Ausa DR 1001 AHG has a transport length of 5.02 meters, a transport width of 2.41 meters, and a transport height of 3.64 meters.

What is the travel speed of the Ausa DR 1001 AHG wheel dumper?

The Ausa DR 1001 AHG has a travel speed of 22 km/h.

What are the undercarriage tyre specifications of the Ausa DR 1001 AHG?

The Ausa DR 1001 AHG is equipped with standard tyres sized 500/60-22.5.

What is the turning radius of the Ausa DR 1001 AHG wheel dumper?

The Ausa DR 1001 AHG has an outside turning radius of 6.287 meters.

What is the material handling capacity of the Ausa DR 1001 AHG wheel dumper?

The Ausa DR 1001 AHG wheel dumper has a net load capacity of 10 tons and a dump capacity of 3.9 cubic meters.
