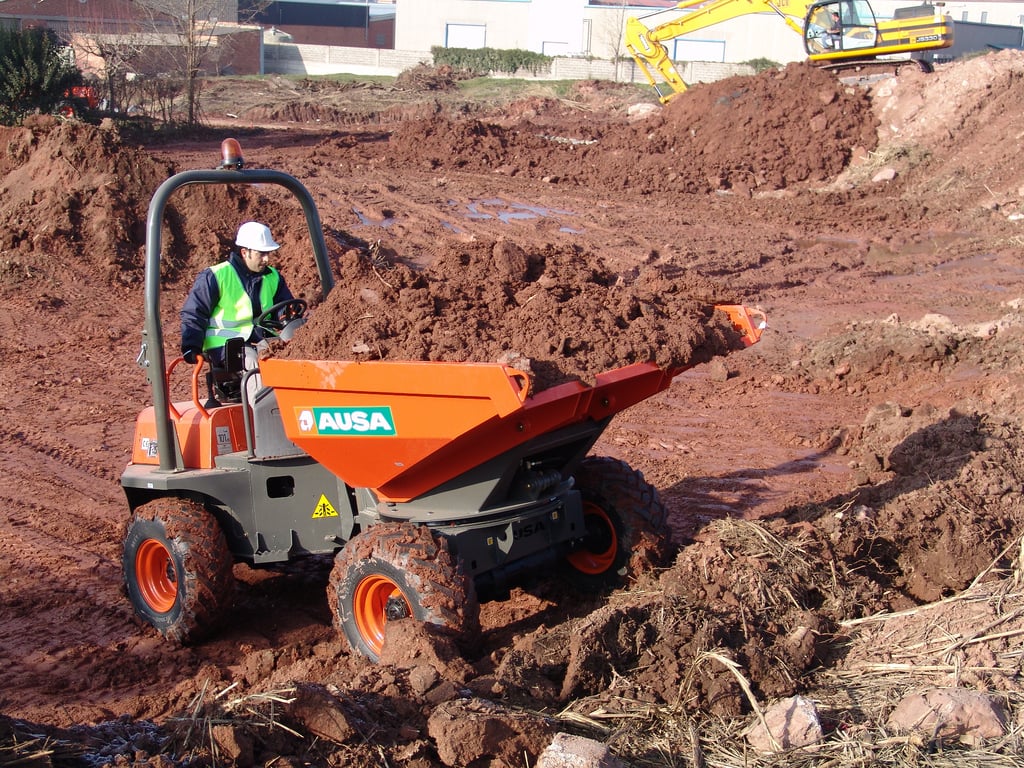

D 400 AHG Ausa D 400 AHG Specifications & Technical Data (2008—2018)

Weight: 2.83t – Standard tyres: 10.0/80-15.3 – Net load: 4t – Dump capacity: 2.2m³ – Dumper type: D – Transport length: 4m

D 400 AHG

Years of manufacture: 2008—2018

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - D 400 AHG Ausa

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 2.83 t

Standard tyres: 10.0/80-15.3

Net load: 4 t

Dump capacity: 2.2 m³

Dumper type: D

Transport length: 4 m

Transport width: 1.858 m

Transport height: 2.96 m

Travel speed: 21 km/h

Loading height: 1.59 m

Turning radius outside: 4.72 m

Model series: AHG

Engine manuf.: Kubota

Engine type: V2403

Engine power: 36.5 kW

Emission level: III B

More technical details, like: dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, model type, driveline, rops, telematics available, engine manufacturer, engine model, rated speed, engine output, fuel, drive, tyre size - front, tyre size - rear, service type, height over rops, width, overall length, wheelbase, ground clearance, width - front tyres, width - rear tyres, width - skip, skip lip height - untipped, height over skip - untipped, turning radius - outside, payload - heaped, payload - struck, payload - water, skip payload, travel speed - maximum, operating weight - unladen are available in the full technical specs.

Basic model with ROPS cabin and std. trough

Special equipment

Diesel particulate filter: No
Heated dump body: No
All-wheel drive: Yes
Track: No
Aircondition: No

Download datasheets (PDF)

Ausa D 400 AHG FAQ

When was the Ausa D 400 AHG manufactured?

The Ausa D 400 AHG was manufactured from 2008 to 2018.

How much does the Ausa D 400 AHG weigh?

The Ausa D 400 AHG weighs 2.83 tons.

What are the transport dimensions of the Ausa D 400 AHG?

The Ausa D 400 AHG has a transport length of 4 meters, a transport width of 1.86 meters, and a transport height of 2.96 meters.

What is the travel speed of the Ausa D 400 AHG wheel dumper?

The Ausa D 400 AHG has a travel speed of 21 km/h.

What are the standard tyre specifications of the Ausa D 400 AHG?

The Ausa D 400 AHG has standard tyres sized 10.0/80-15.3.

What is the turning radius of the Ausa D 400 AHG wheel dumper?

The Ausa D 400 AHG has an outside turning radius of 4.72 meters.

What is the material handling capacity of the Ausa D 400 AHG wheel dumper?

The Ausa D 400 AHG wheel dumper has a net load capacity of 4 tons and a dump capacity of 2.2 cubic meters.
