D 101 AHA Compact Ausa D 101 AHA Compact Specifications & Technical Data (2019—2026)

Weight: 1.3t – Standard tyres: 6.5/80-12 – Net load: 1t – Dump capacity: 0.565m³ – Dumper type: H – Transport length: 3.2m

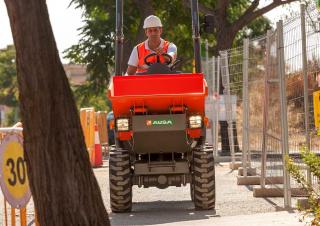

Wheel Dumpers Ausa D 101 AHA Compact
Wheel Dumpers Ausa D 101 AHA Compact
Wheel Dumpers Ausa D 101 AHA Compact
Wheel Dumpers Ausa D 101 AHA Compact
Wheel Dumpers Ausa D 101 AHA Compact
Wheel Dumpers Ausa D 101 AHA Compact

Technical specs - D 101 AHA Compact Ausa

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.3 t
Standard tyres
6.5/80-12
Net load
1 t
Dump capacity
0.565 m³
Dumper type
H
Transport length
3.2 m
Transport width
0.98 m
Transport height
1.92 m
Travel speed
15 km/h
Loading height
1.18 m
Turning radius outside
3.06 m
Model series
AHA
Engine manuf.
Kubota
Engine type
D1105-E4B
Engine power
15.6 kW
Revolutions at max torque
2400 rpm
Max. torque
71.4/1600 Nm
No. of cylinders
3
Emission level
V

More technical details, like: dimension lxwxh, displacement, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin and std. trough

Special equipment

Diesel particulate filter
No
Heated dump body
No
All-wheel drive
Yes
Track
No
Aircondition
No

Download datasheets (PDF)

Ausa D 101 AHA Compact FAQ

When was the Ausa D 101 AHA Compact manufactured?

The Ausa D 101 AHA Compact was first produced in 2019.

How much does the Ausa D 101 AHA Compact weigh?

The Ausa D 101 AHA Compact weighs 1.3 tons.

What are the transport dimensions of the Ausa D 101 AHA Compact wheel dumper?

The Ausa D 101 AHA Compact has a transport length of 3.2 meters, a transport width of 0.98 meters, and a transport height of 1.92 meters.

What is the travel speed of the Ausa D 101 AHA Compact wheel dumper?

The Ausa D 101 AHA Compact has a travel speed of 15 km/h.

What are the undercarriage specifications of the Ausa D 101 AHA Compact wheel dumper?

The Ausa D 101 AHA Compact wheel dumper is equipped with standard tyres sized 6.5/80-12.

What is the turning radius of the Ausa D 101 AHA Compact wheel dumper?

The Ausa D 101 AHA Compact wheel dumper has an outside turning radius of 3.06 meters.

What is the material handling capacity of the Ausa D 101 AHA Compact wheel dumper?

The Ausa D 101 AHA Compact has a net load capacity of 1 ton and a dump capacity of 0.57 cubic meters.

How much is a Ausa D 101 AHA Compact Wheel dumper (2019u20132025) worth?

The residual value of the Ausa D 101 AHA Compact depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
